Passad M108 Heater Demister 12 or 24V

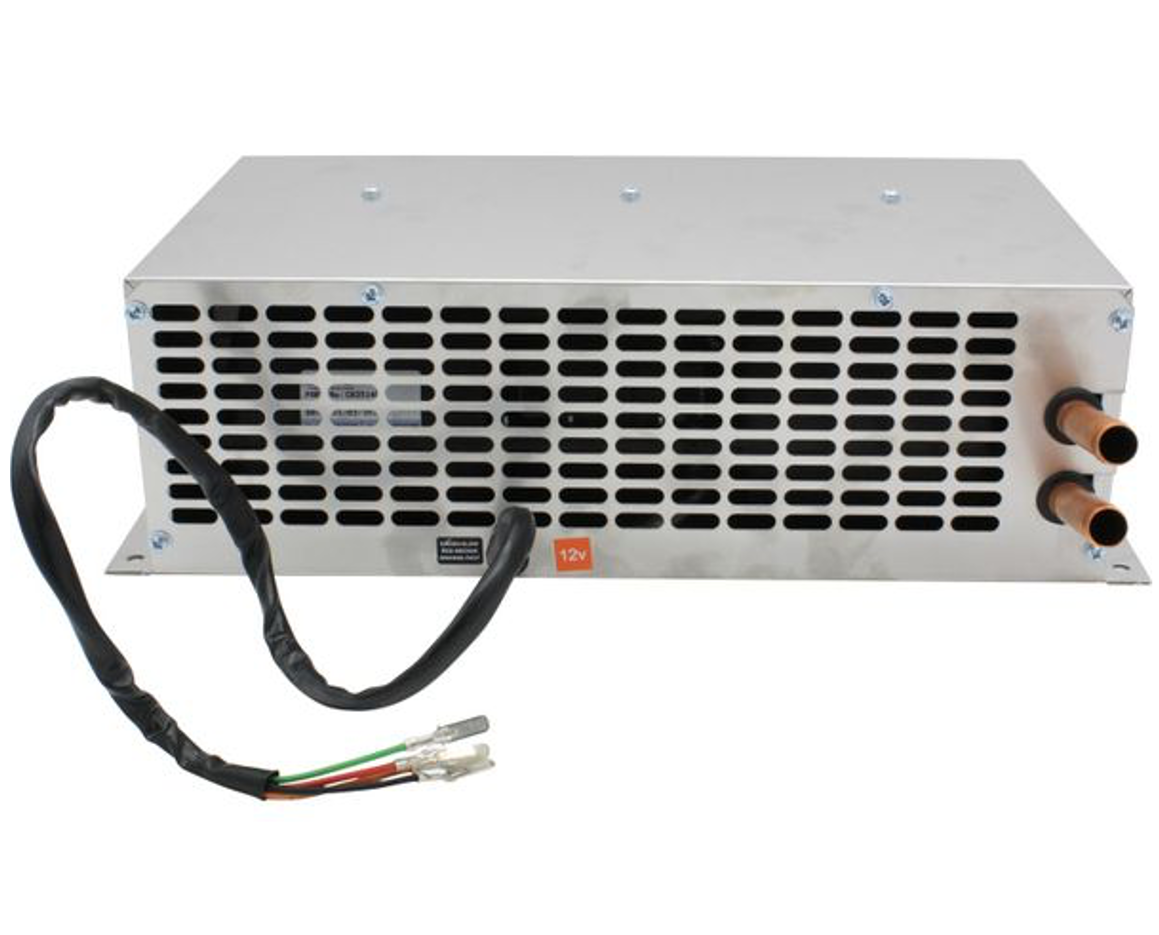

This hot air unit can be used for both hot cabin heating and windscreen demisting. Designed on the same principle as a vehicle heater but larger and to marine material specification for connection to your closed circuit fresh water cooling system. As heat loss in pipes from engine is negligible the unit is best sited near to the cabin. Universal mounting normally below engine header tank. The radiator, fan and electric motor are housed in rectangular S/S body.

Technical Specifications

• Size (mm): 450x140x335
• Motor: 100 Watt
• Free blowing: 10kw
• 3 Bar B/ Pressure: 6.5kw
• 3.5 Bar B/ Pressure: 4kw
• Water Inlet/Outlet 16mm Dia. (5/8 I.D. Heater Hose).
• Three position switch supplied

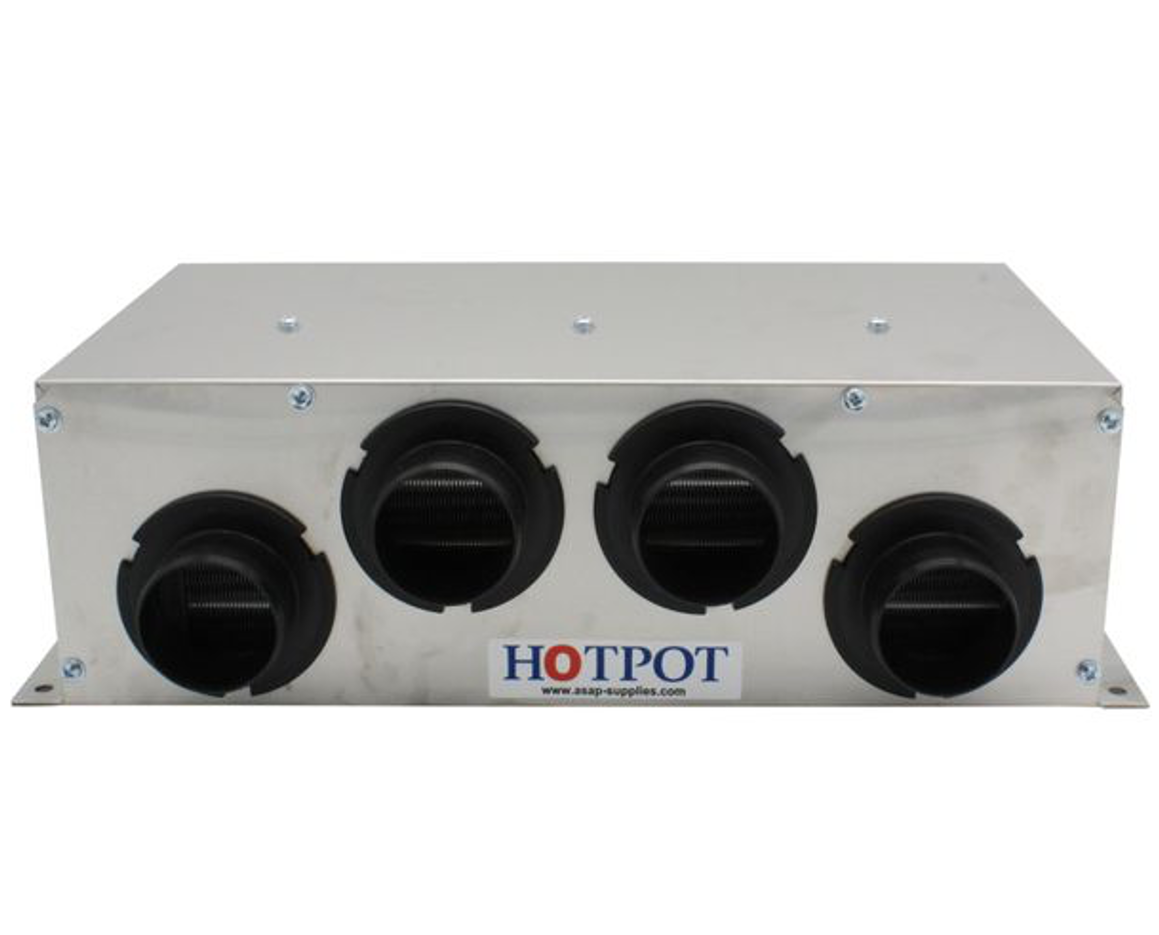

• Air outlets (4) 55mm dia.

Models

• Passad M108 12V
• Passad M108 24V
