ICS NAV6 eNavtex System

The ICS NAV6 series of NAVTEX receivers have long been synonymous with the high quality manufacturer and reliability throughout the product range.

The NAV6 was the world's first LCD NAVTEX system to offer dual channel (518kHz and 490kHz) reception as standard. Information is presented on a large and easy-to-read LCD display, rivalling paper print-out for legibility.

NAVTEX is part of the Global Maritime Distress and Safety System (GMDSS). It broadcasts weather and navigation warnings in English on 518kHz every four hours from transmitters around the world. Increasingly, local language and small craft information is also transmitted on 490kHz. Urgent messages such as gale warnings can also be transmitted in between scheduled transmissions when necessary.

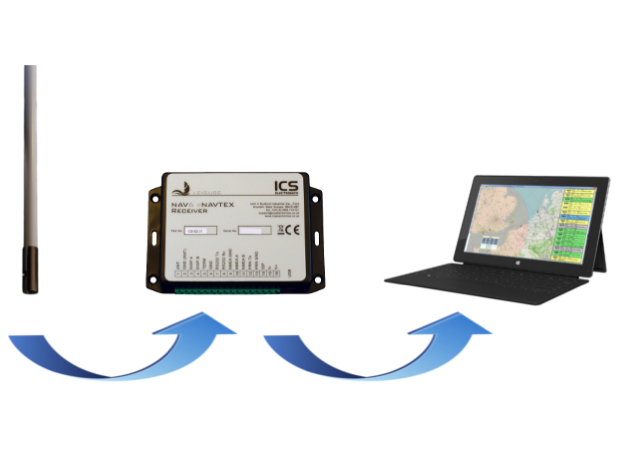

The NAV6 eNAVTEX is now available for purchase. The eNAVTEX App brings NAVTEX to your PC or tablet allowing you to view your NAVTEX messages, MMSI data, NAVTEX Stations and their broadcast and plot them on an easy to use PC based map display/chart. All NAV6 NAVTEX Systems are available without a Antenna option. Please enquire for more details.

A full list of features available for the NAV6 eNAVTEX System are below:

  • High quality NAVTEX receiver.
  • Simultaneous 490kHz and 518kHz NAVTEX reception.
  • MS Windows® eNAVTEX App.
  • Flash memory message store.
  • Worldwide NAVTEX Station Database.
  • Chart view showing area affected in a NAVTEX message.
  • Passive Antenna with 10m cable.
  • Upgradeable.

Techy Bits & Dimensions

PC Requirements Operating System
Processor
RAM
Disk Space
Graphics
Wndows 8, Windows 7, Vista or Windows XP
1 Gigahertz (Ghz) or faster
1 Gigabyte (GB)
5 Gigabytes (GB) of free disk space
DirectX 9 graphics device with WDDM 1.0 or higher driver
Receiver Module Power Consumption (Typical) 150mA  at 12V
Receiver Module Connectivity
Mounting

Weight
Dimensions
Splash proof
Environmental
Receive Frequency
Antenna Input

Screw terminal and USB Type B.
Bulkhead mounting via two self-tapping screws (supplied).
Unit must be mounted below decks in s a suitable dry location.
​300g
Height: 180mm, Width: 122mm, Depth: 36mm
No
Not for outside use.
490kHz and 518kHz
​50ohms
