Bennett Bolt 249BCI Trim Tabs System with Soft Touch Control & 24" x 9" Trim Plates - Cost Price whilst Stocks Last - In Stock

Having sold Trim Tabs for my 45 years in the industry i think Bennett are amongst the best on the market place, with a quality product and great back up service if required. Hence why lots of boatbuilders fit or recommend them

Balance loads, plane faster, increase efficiency and performance with Bennett BOLT Electric Trim Tab systems. Cutting-edge technology, with a robust, watertight actuator, built to outlast any electric trim tab system on the market.

Bennett BOLT Electric Trim Tab Kits deliver power, precision and durability, allowing the skipper to get the best performance from the boat, reducing fuel consumption and improving pitching and porpoising, promoting earlier planing and reducing time in displacement mode.

BOLT electric actuators stop and start immediately with the press of the switch, they provide precise control and instant response time, they are simpler to fit and do not require the installation of hydraulic hoses or a pump.

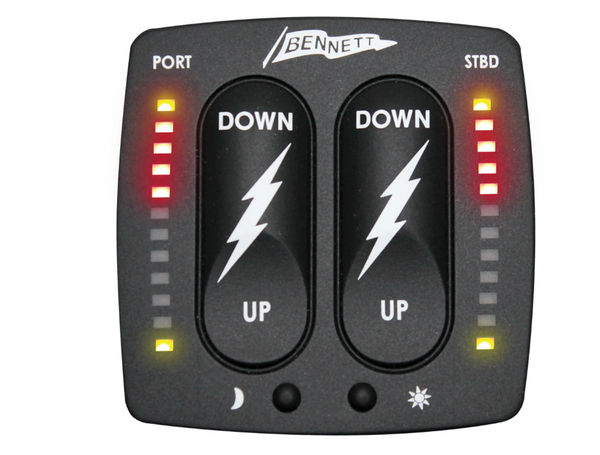

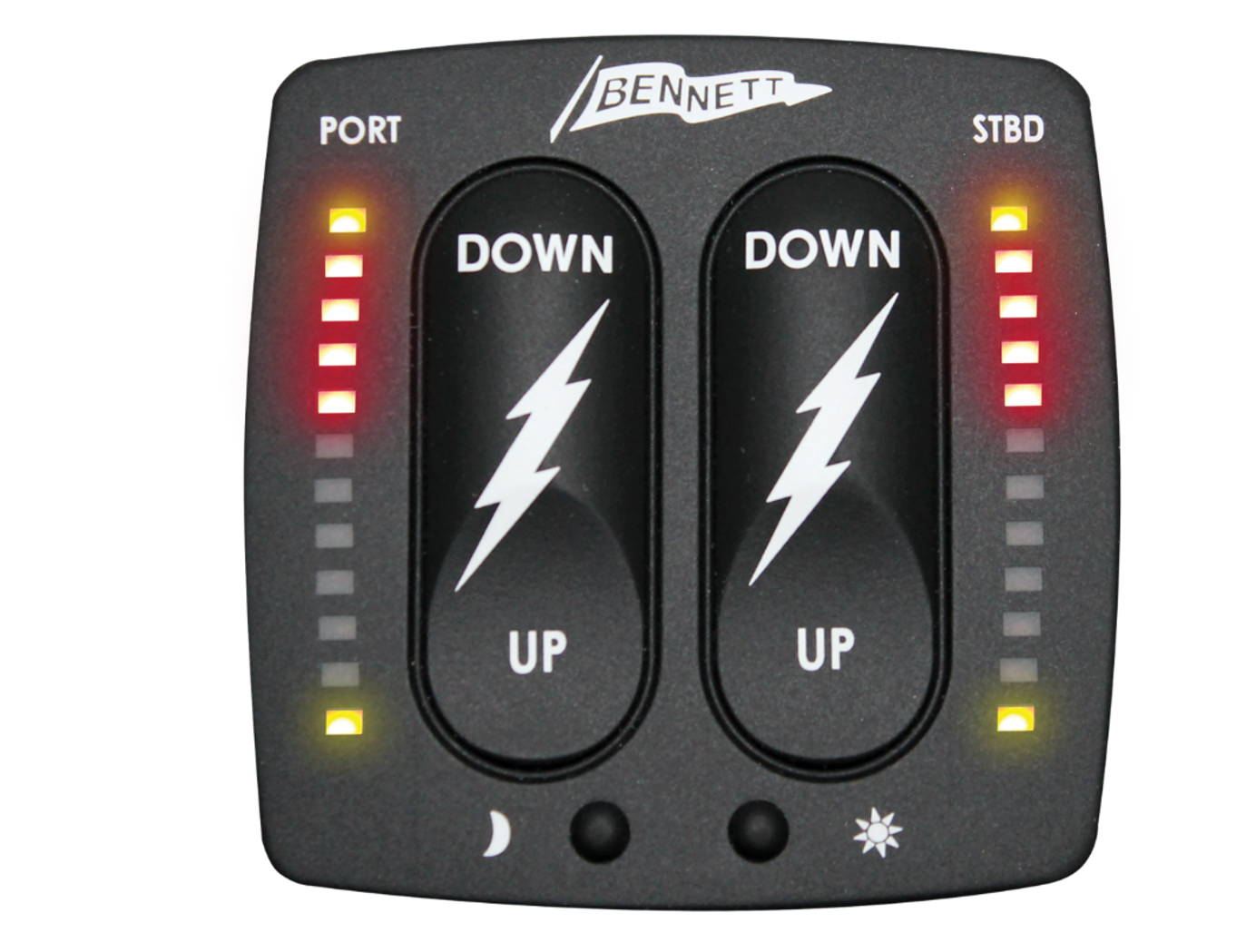

This system comes complete with the Soft Touch Helm Control with Indicators

Sizing guidelines

In general the widest span tabs that will fit on the transom will be the most effective. The greater the surface area, the greater the lift. We‘ll typically recommend a 9” chord tab (length), but depending on available transom space a shorter or longer chord tab, or specially shaped tabs with upfins or dropfins may be advised.

As a general rule for boats with max speeds of 40MPH, choose at least one inch of trim tab span (per side) for every foot of boat length. For example, a 22′ boat would use a 24”x9”.

For speeds 40MPH and over, we’ll generally point you to a Performance, or Premier Line high-performance systems.

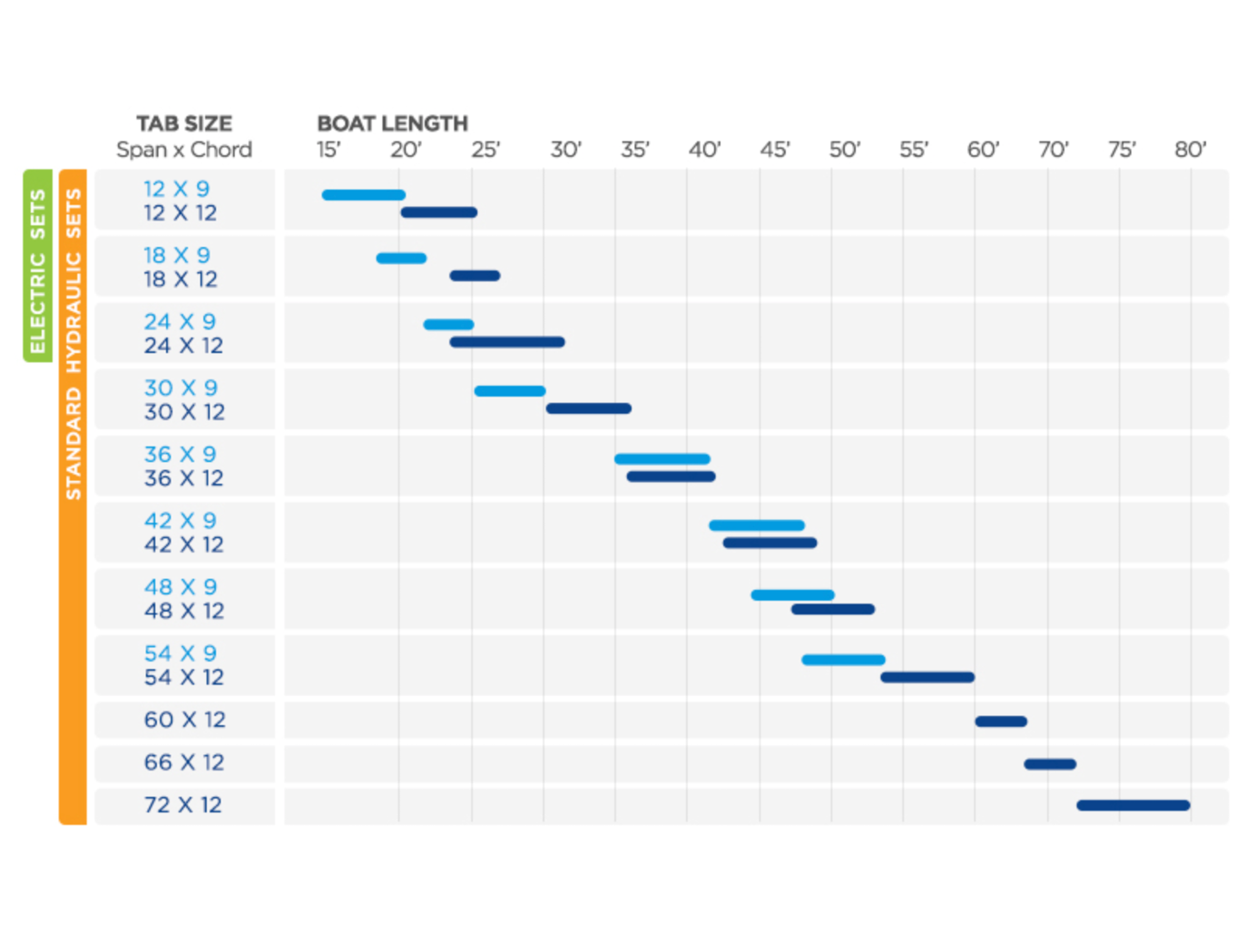

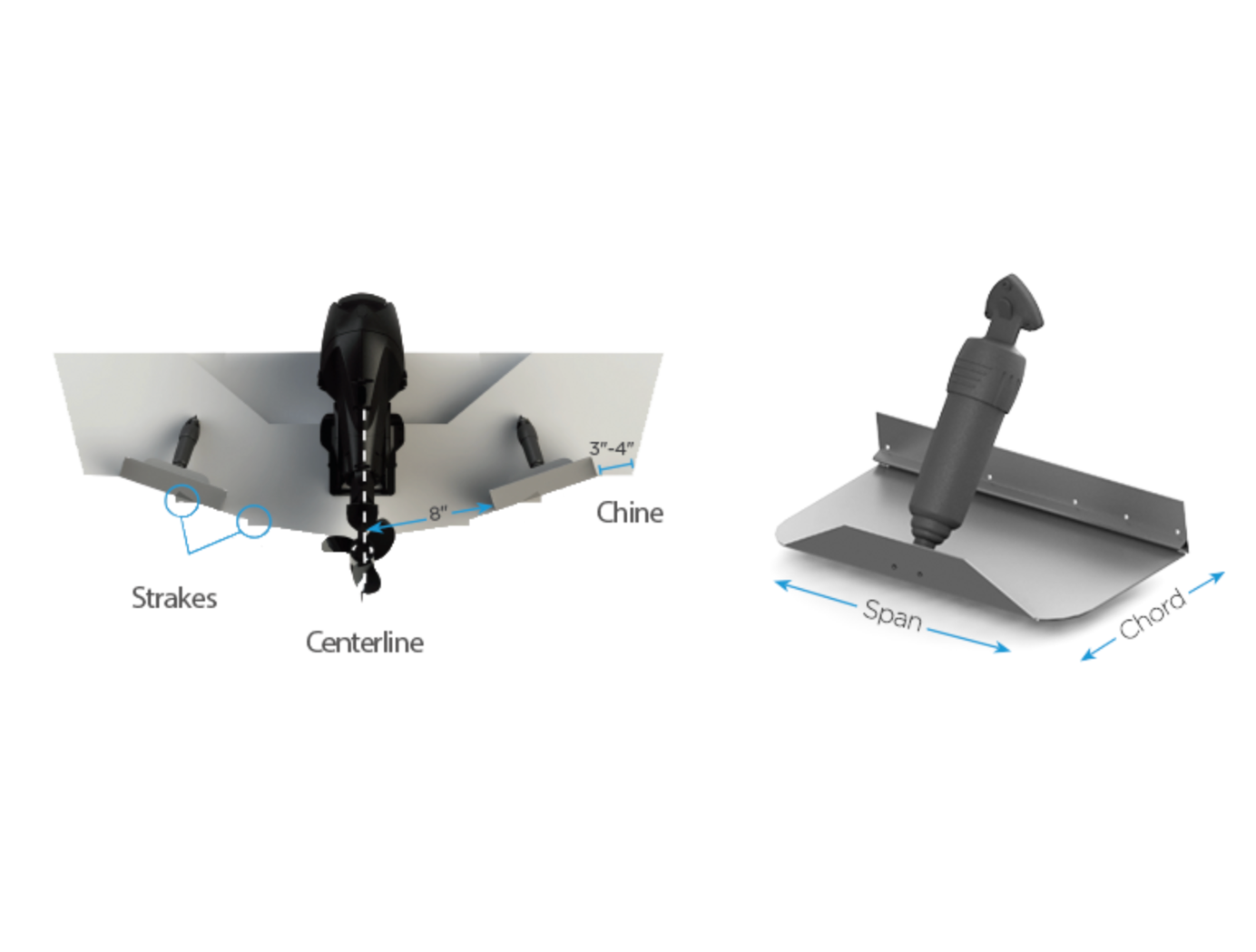

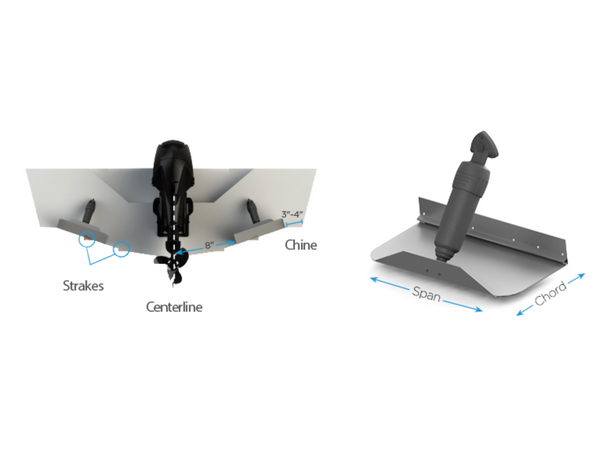

Choose the approximate tab size for your boat using the sizing chart below. Make sure the tabs will fit your transom using the diagrams shown as a guideline. When measuring, disregard the strakes and follow the Vee of the hull.

Key Features

  • Lifetime warranty for electric actuators
  • Water-tight design provides trouble-free operation for years
  • Installation is fast and simple
  • Reduce fuel consumption
  • Minimise labouring of engines
  • Minimise hull stress through pounding
  • Reduce boat wake
  • Eliminate squatting, listing and porpoising
  • Improve visibility
  • Increase speed whilst reducing fuel consumption
  • Multiple control options, tab sizes, and mounting options available
Specification
  • Trim tab dimensions vary with selection
  • 13″ vertical transom space required:

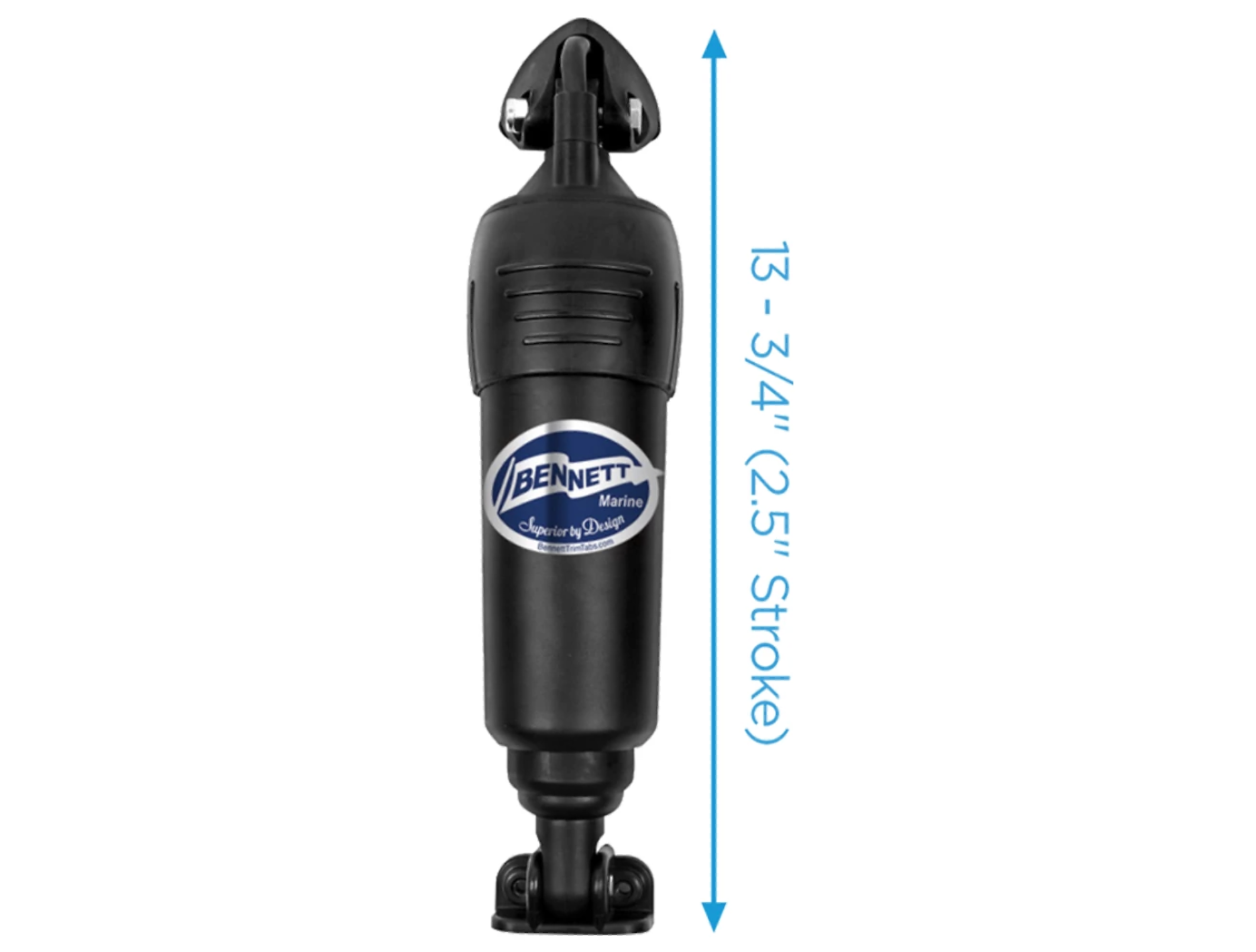

  • Actuator stroke: 2.5″
  • Actuator length: 13.25″
  • Actuator voltage: 12V
  • Connectors: Deutsch, DT Series, 13A
  • Working forces:
    • Actuation force: 750 lb
    • Return Force: 750 lb
  • Current draw:
    • Actuators:  20amp Max draw
    • Helm Control: 20amp Max draw
    • Control Unit / Relay Module: 20amp Max draw

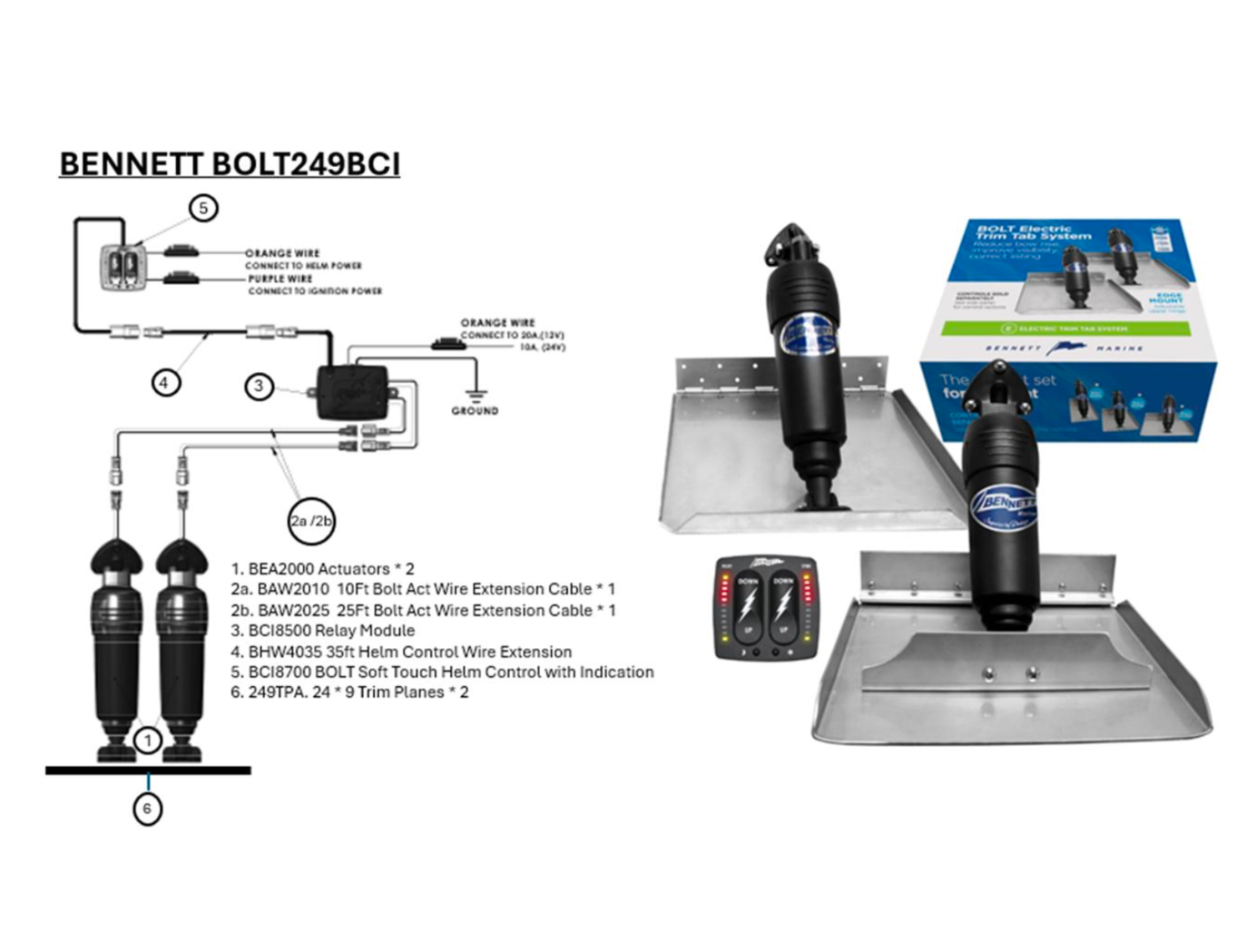

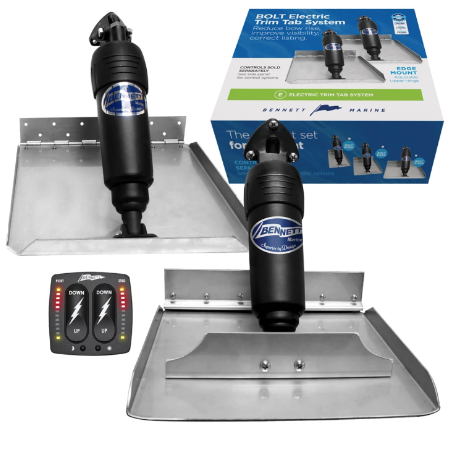

Whats in the Box
    • 12-volt fixed upper hinge actuators with 6-ft. wire harnesses and waterproof connectors (BEA2000) * 2
    • Stainless steel trim planes (tabs) and mounting plates * 2 x 24" x 9"
    • 10-ft. wire harnesses with waterproof connectors (BAW2010)  1
    • 25-ft. wire harnesses with waterproof connectors (BAW2025)  1
    • Relay Module BCI8500
    • 35ft Helm Control Wire Extension BWH4035
    • Soft Touch Helm Control with Indicators BCI8700 BOLT
