Garmin Echomap UHD 75CV Includes built in BlueChart g3 charts for UK and Ireland - Special Offer - In Stock

Garmin Echomap UHD 75CV Includes built in BlueChart g3 charts for UK and Ireland

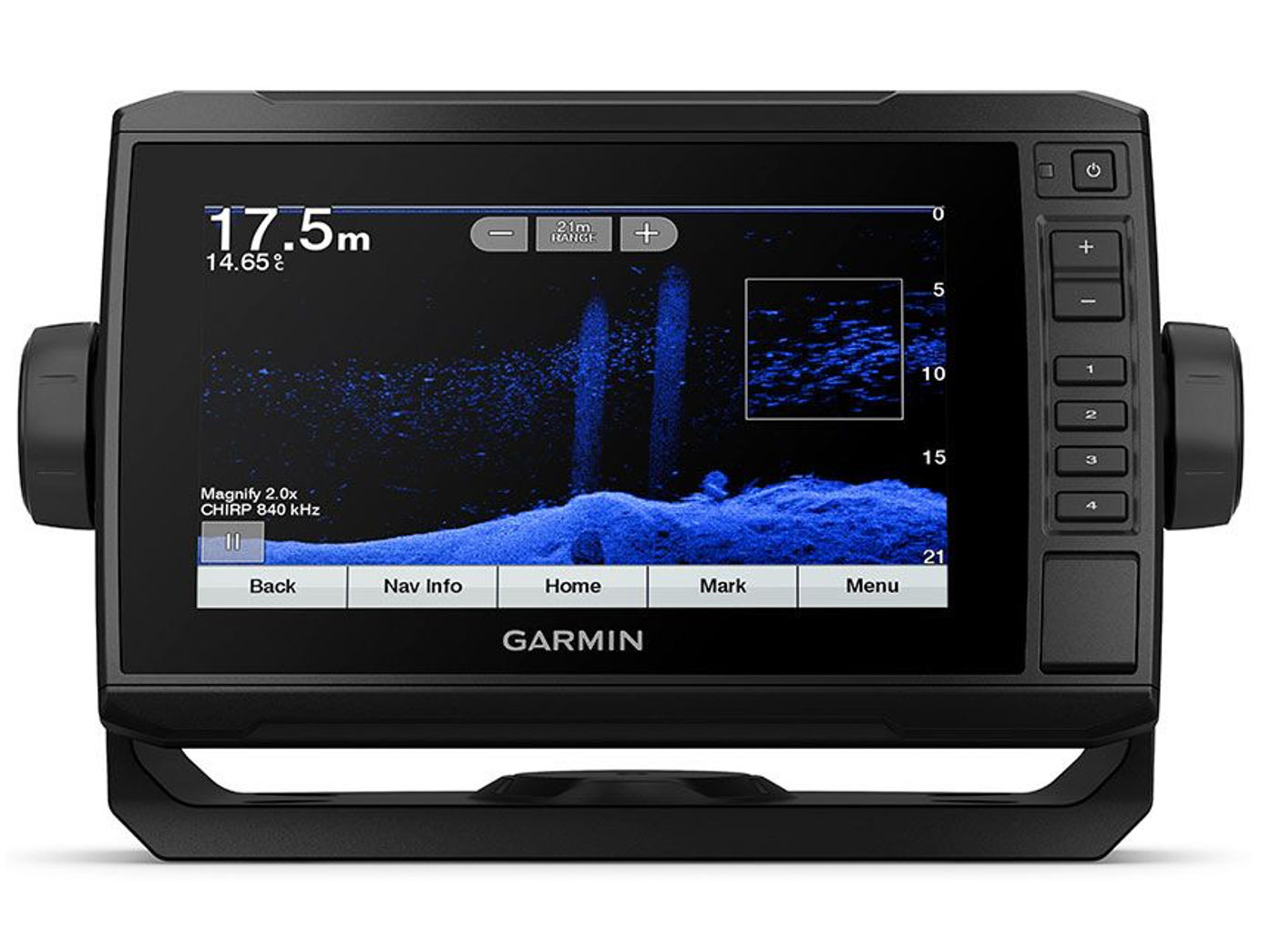

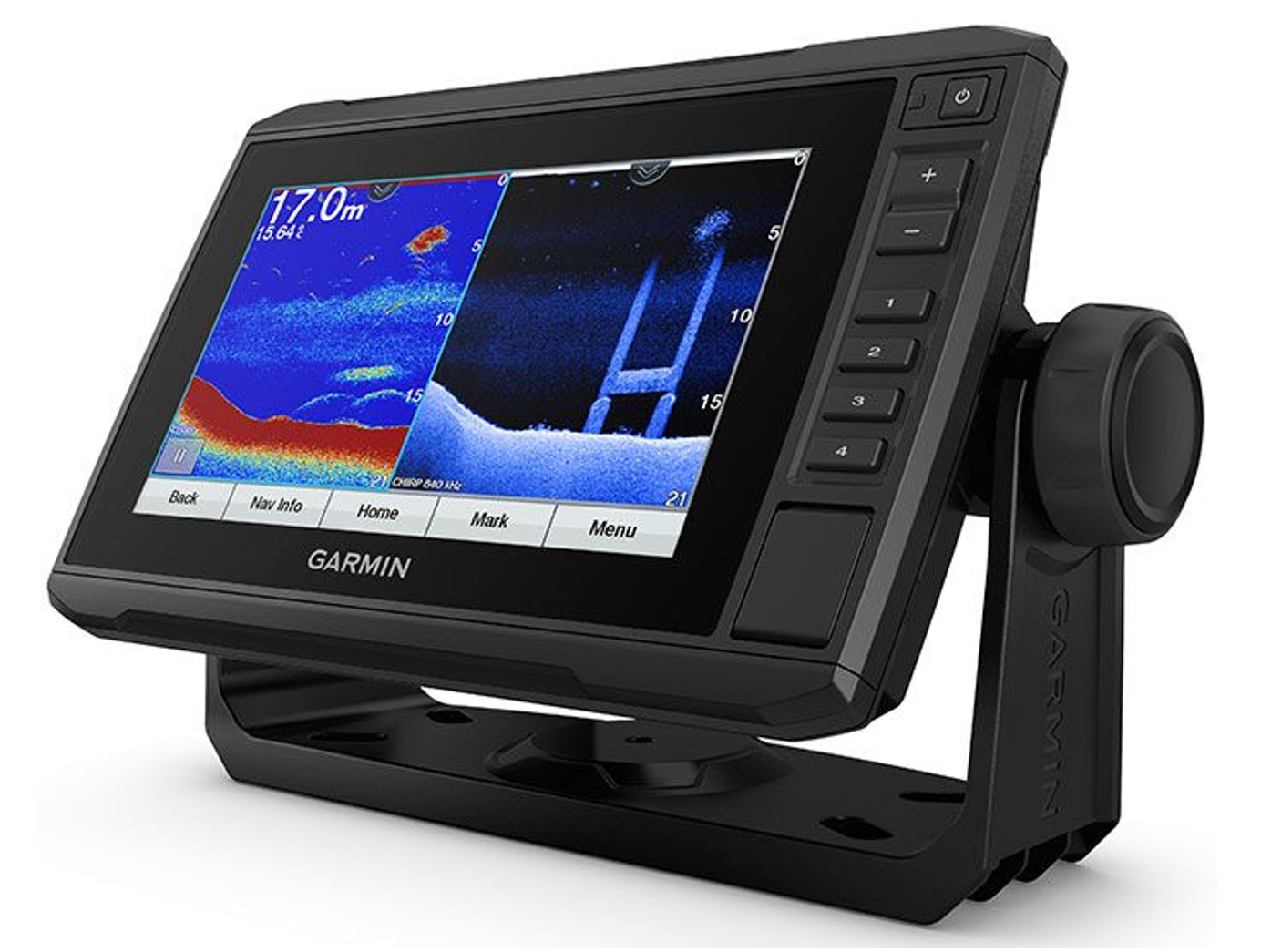

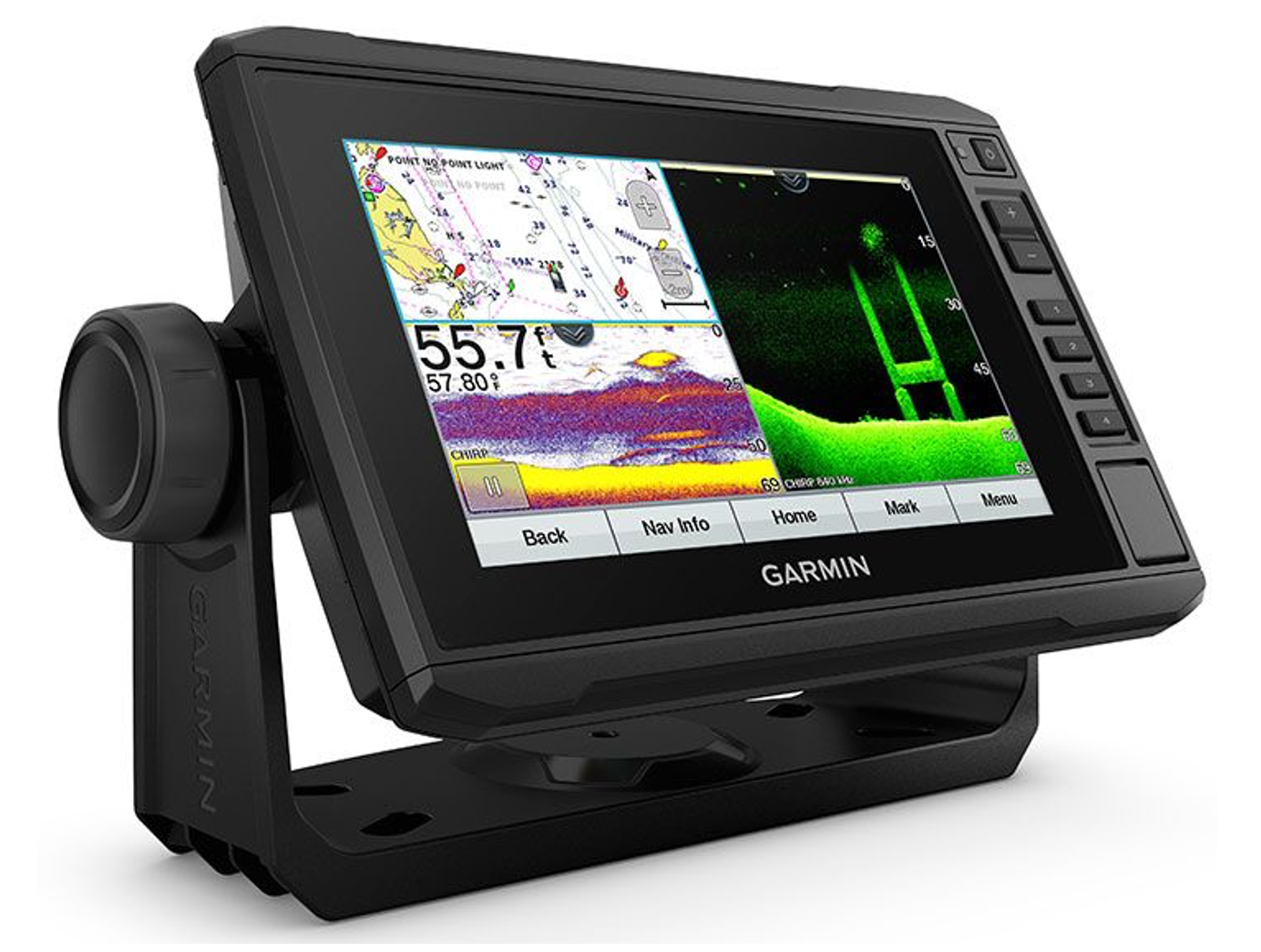

Find more fish using the ECHOMAP™ UHD 75cv combo with a bright, sunlight-readable 7” touchscreen with keyed assist. It supports Ultra High-Definition ClearVü scanning sonar, so you get a crystal-clear image of what is below your boat, and Garmin high wide CHIRP traditional sonar delivers remarkable target separation (transducer sold separately). It features a quick-release bail mount, making it easy to remove and take with you. NMEA 2000® and NMEA 0183 network support provides you with engine data, sensor connection, autopilot integration and more. ECHOMAP™ UHD 75cv is even compatible with the Force™ trolling motor for full control of the motor from the screen plus the ability to route to waypoints, follow tracks and more. Preloaded BlueChart® g3 charts for the United Kingdom, Ireland and Northwest mainland Europe coast.

Key Features

  • Bright, sunlight-readable 7” touchscreen with keyed assist
  • Supports Ultra High-Definition ClearVü scanning sonar and Garmin high wide CHIRP traditional sonar
  • Preloaded BlueChart® g3 charts for the United Kingdom, Ireland and Northwest mainland Europe coast
  • Supports Panoptix™ all-seeing sonar, including Panoptix LiveScope™ sonar
  • Sonar sharing capabilities with other ECHOMAP™ Plus, ECHOMAP UHD and ECHOMAP Ultra units
  • NMEA 2000® and NMEA 0183 network support for autopilot and engine data
  • Quick-release bail mount for fast and easy mobility
  • Compatible with Force™ trolling motor for full control of the motor from the screen plus the ability to route to waypoints, follow tracks and more

Whats In the box

  • ECHOMAP UHD 75cv with BlueChart g3 for U.K. and Ireland
  • Power/data cable
  • Tilt/swivel mount with quick release cradle
  • Flush mount
  • Protective cover
  • Hardware
  • Documentation

Specification

PHYSICAL DIMENSIONS 25 x 13.9 x 5.1 cm
DISPLAY SIZE 15.5 x 8.6 cm; 17.8 cm (7.0″) diagonal
DISPLAY RESOLUTION 400 x 800 pixels
DISPLAY TYPE WVGA display
WEIGHT 0.77 kg
WATER RATING IPX7
POWER CONSUMPTION 15 W
ANTENNA Internal or external over NMEA 2000
MOUNTING OPTIONS Bail or flush
RECEIVER 5 Hz
GARMIN MARINE NETWORK™ PORTS 1 Panoptix™ port
Maps & Memory

PRELOADED MAPS BlueChart® g3 (coastal charts)
ACCEPTS DATA CARDS 1 microSD™ card; 32 GB maximum size
WAYPOINTS 5,000
ROUTES 100
TRACK LOG 50,000 points; 50 saved tracks



Outdoor Recreation Features

TIDE TABLES YES

Chartplotter Features

GARMIN SONAR COMPATIBLE YES
SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) YES
SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) YES
GCV™ BLACK BOX SONAR SUPPORT YES
ACTIVECAPTAIN COMPATIBLE YES
SAILING FEATURES YES



General



PHYSICAL DIMENSIONS 25 x 13.9 x 5.1 cm
DISPLAY SIZE 15.5 x 8.6 cm; 17.8 cm (7.0″) diagonal
DISPLAY RESOLUTION 400 x 800 pixels
DISPLAY TYPE WVGA display
WEIGHT 0.77 kg
WATER RATING IPX7
POWER CONSUMPTION 15 W
ANTENNA Internal or external over NMEA 2000
MOUNTING OPTIONS Bail or flush
RECEIVER 5 Hz
GARMIN MARINE NETWORK™ PORTS 1 Panoptix™ port

Maps & memory

PRELOADED MAPS BlueChart® g3 (coastal charts)
ACCEPTS DATA CARDS 1 microSD™ card; 32 GB maximum size
WAYPOINTS 5,000
ROUTES 100
TRACK LOG 50,000 points; 50 saved tracks

Outdoor recreation features

TIDE TABLES YES

Chartplotter features

GARMIN SONAR COMPATIBLE YES
SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) YES
SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) YES
GCV™ BLACK BOX SONAR SUPPORT YES
ACTIVECAPTAIN COMPATIBLE YES
SAILING FEATURES YES

Sonar features & specifications

DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE YES
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE YES
TRANSMIT POWER 500 W (RMS) / 4,000 W (peak to peak)
CHIRP SONAR TECHNOLOGY Yes (Built-in)
CLEARVÜ Yes with CHIRP (built-in)
SIDEVÜ no
MAXIMUM DEPTH 700 metres @ 77 kHz, freshwater, 335 metres @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions)
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) YES
WATER TEMPERATURE LOG AND GRAPH YES
SONAR RECORDING YES
SONAR HISTORY REWIND YES
Connections

NMEA 2000® COMPATIBLE YES
TRANSDUCER PIN NUMBERS 8
NMEA 0183 INPUT PORTS 1
NMEA 0183 OUTPUT PORTS 1
VIDEO INPUT PORTS None
VIDEO OUTPUT PORTS None
WIRELESS CONNECTIVITY Yes
