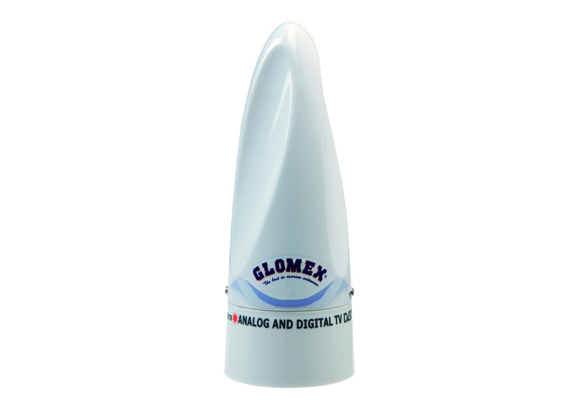

Glomex VT300 Avior Omnidirectional TV Antenna

Modern design the Avior is the TV/RADIO FM Omnidirectional antenna in the Glomex range characterized by very compact dimensions (diameter 100 mm/4”and height 210 mm/8”). It enables the user to watch TV programs broadcasted with analog and digital terrestrial system and to listen the radio. The new amplifier allows Avior to have an increase in the gain and to receive vertically and horizontally polarized TV signals coming from more directions at the same time. The inner amplifier, coupled to the power inserter with 2 independent outputs for TV and radio (V9114OI-FM), allows the reception of VHF and UHF and FM frequencies with a single antenna. Avior can be installed on any kind of boat, whether sailboat or motorboat, and can be matched to the VHF RA121 antenna.

Key Features

  • Antenna Diameter : 100mm (4’’)
  • Antenna  Height : 210 mm (8'')
  • Base Diameter : 25 mm (1'')
  • Antenna Weight : 250 g (8,81 oz)
  • Ra Material : U.V. resistant ASA
  • Angle Of Reception : 360°
  • Polarization : Horizontal/Vertical
  • Impedance : 75 ohms
  • Frequency Range : 40/890 MHz
  • Gain Average : 24,5 dB
  • Noise Factor : 1,7 dB
  • Power Consumption : 20 mA
  • Power Supply : 12 Vdc
  • TV Set Max : 21
  • Termination : F Female
  • Connector Supplied : F male gold plated connector (V9144)
  • Warranty: Lifetime
  • Height (CM): 16.5
  • Width (CM): 29
  • Depth (CM): 36

Whats in the Box

  • Universal Mount
  • V9114PI-FM 2 WAY POWER INSERTER
  • Coaxial  Cable 9 metres 75 ohms
  • Cable TV 1.5 metres

Optional  Accessories

  • WW-V9123 Masthead Mount
  • WW-V9124 Stainless Steel Universal Mount
