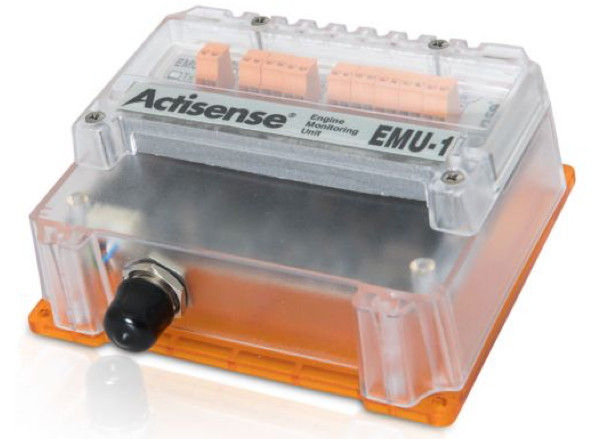

Actisense EMU-1 Engine Monitoring Unit

The EMU-1 has a PC based configuration tool that allows the settings inside the EMU-1 to be changed to best suit the engine it is working with, making it a flexible solution for many engine makes and models. An Actisense PC to NMEA 2000 Gateway (NGT-1) is required to configure the EMU-1.

It is recommended that an NGT-1 is available for every EMU-1 installation. The NGT-1 can be used to update the firmware, connect the Toolkit and display data on a PC for diagnostic and information purposes, using NMEA Reader. Please visit the NGT-1 page for product details.

An optional DIN rail mounting kit is also available. The kit is suitable for use with a top hat rail, type EN 50 022 or a G section rail, type EN 50 035. Please order the DIN rail kit using part number: 005-DIN-KIT-1.

Key Features

  • Enables analogue signals to be converted to NMEA 2000 messages.
  • Six gauge/parameter inputs.
  • Four alarm inputs.
  • Two Tach inputs.
  • Two additional auxiliary inputs which are flexible to suit the installation.
  • Total engine hours are logged by the monitoring of engine Tach (RPM) input.
