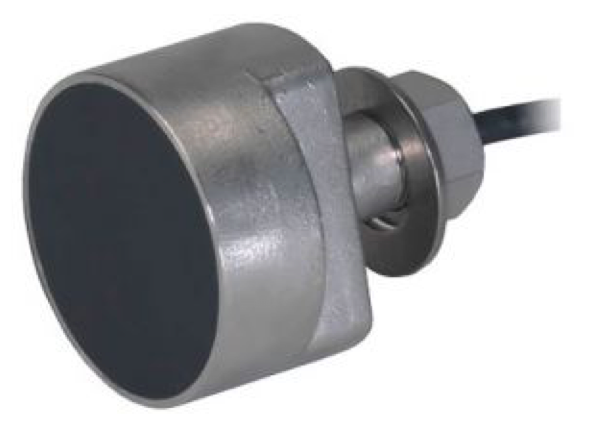

Airmar SS510 DT 200Khz Echo Range Sensor - 20m Cable
The Airmar EchoRange SS510 Smart Sensor is a low-cost depth sonar for bridge scour monitoring, sediment transfer studies, and portable hydrographic surveys.
200 kHz EchoRange Smart Sensor
Airmar’s patented Smart™ sensors feature embedded microelectronics that process depth and temperature inside the sensor that can be instantly displayed on any device that accepts NMEA data. EchoRange technology transfers NMEA 0183 data in real time to a computer via the RS422 standard.
200 kHz EchoRange+ Smart Sensor -With Echo Envelope Developer Option. Exclusive to OEM’s, available for purchase only through Airmar USA.
In addition to the bi-directional NMEA 0183 interface, a secondary transmit only interface with a proprietary protocol using RS485 is available to OEMs. The user can obtain detailed echo envelope data which may be displayed as an analog waveform. The echo envelope is a 900-point time-series of the echo amplitude. By analyzing the shape of the echo envelope, information indicative of the seafloor type is revealed.
Bridge scour inspection systems
Portable hydrographic survey
Autonomous Surface Drones
Depth and temperature
Digital signal processing

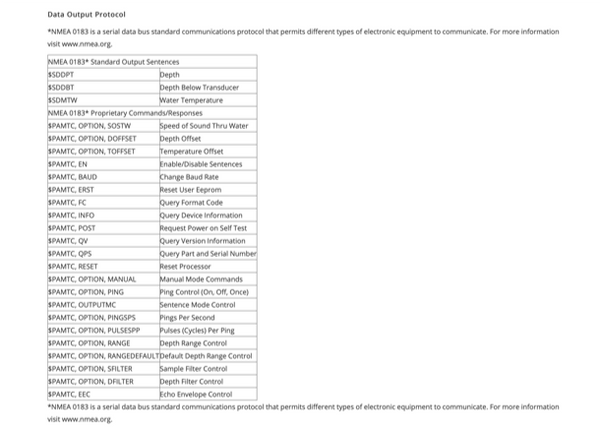

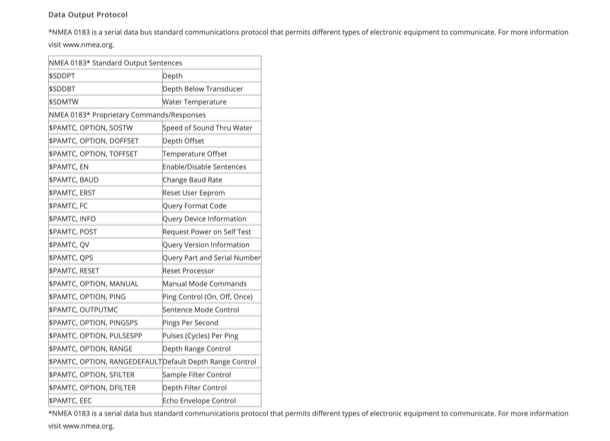

NMEA 0183 data output
User configurable, conserving bandwidth
Control the depth range and the ping rate resolution, using the auto mode or manual setting capabilities
Submersible down to 10M
Housing design offers flexibility in types of mounting – Portable mount for pole installation – Transom-mount (with optional bracket) – Hull mount (either inside or external to hull)
Maximum depth reading: 200m, limited in manual mode (by ping rate)
Depth display resolution: 0.01 m
Housing type offered: Stem type SS510
Temperature Sensor: 10k ohm +/-0.05C accuracy
Temperature resolution: 0.09 C
Power and data cable: C304, 4 twisted shielded pairs, 7.6 m and 20 m
Sounding Rate: In full auto mode, sounding rate is variable with depth, in manual mode, sounding rate is configurable up to 10 times per second. Data output rate and ping rate are the same in manual mode, one ping produces one depth output. In full auto mode, data output rate is configurable (0.1 to 25 seconds per interval)
