Alfatronix Wireless Integrated Charger Module

Wireless charging is increasingly becoming the preferred method of maintaining battery power in mobile devices, with most of the latest designs from the major manufacturers including wireless charging as standard.

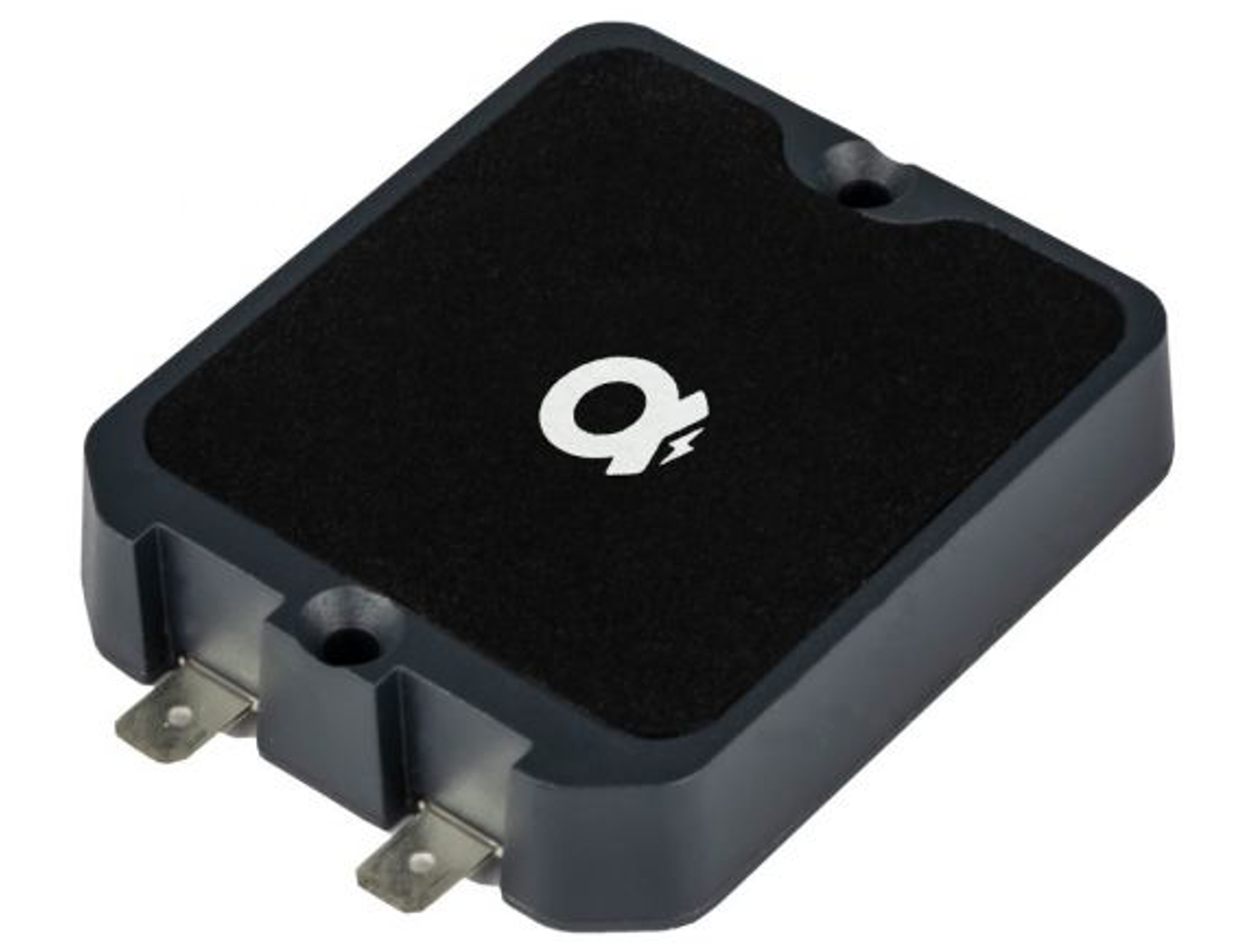

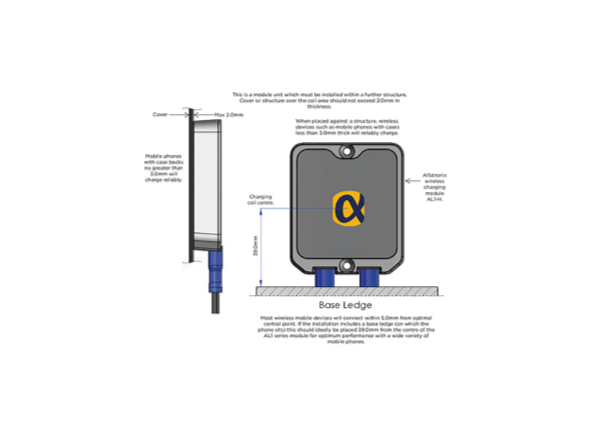

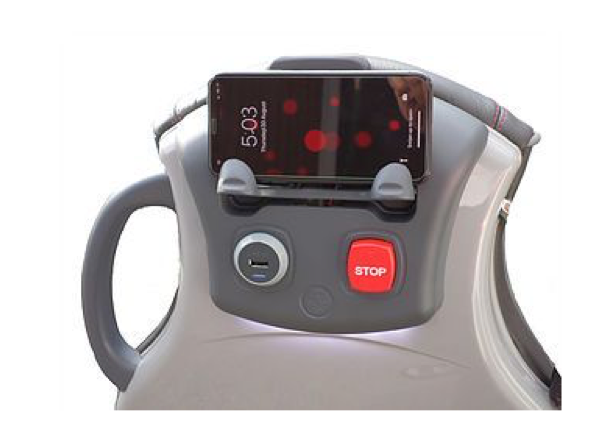

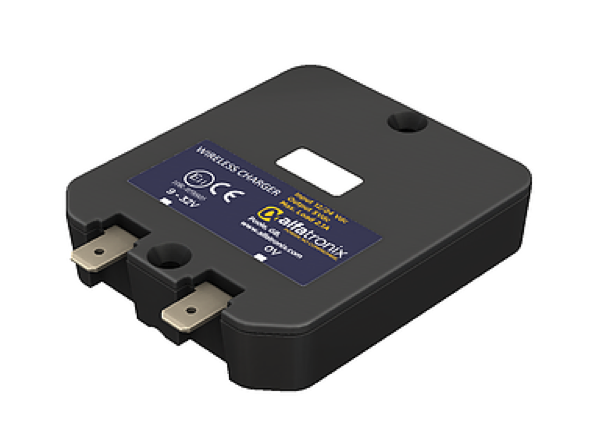

 The AL1 series module is designed for integration into equipment on vehicles to allow wireless charging to extend to private and public transport applications. This module is typically housed in an apparatus that enables mobile devices to be retained in position on the vehicle during charging. Typical applications include integration into seat back consoles and table tops.

Accepts both 12Vdc and 24Vdc.

The Alfacharge range has been designed to meet the rigorous standards required for on-board commercial vehicle applications including EN50498, ISO7637-2,
EN61373 and is both CE and E marked (Reg10). The casings are made from V0-rated (self-extinguishing) high impact polycarbonate and the PCB is populated by
computer-controlled SMT for maximum accuracy and durability.

Key Features

  • Extra vibration protection to EN61373.
  • Approved to EN50498, ISO7637-2 and EN50155. E marked (Reg10) and CE marked.
  • Phone communicates every millisecond to establish correct charge.
  • 2A internal fuse to protect against catastrophic failure.
  • Foreign object detection & activation.
  • Convenient wide input of 9-32Vdc for wireless charger in one standard casing.
  • LED to confirm correct operation.
