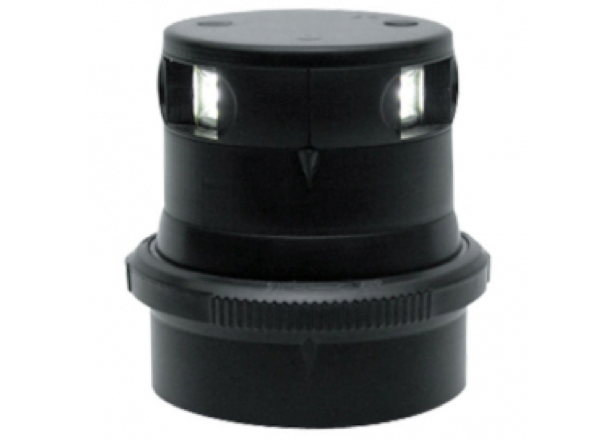

Aqua Signal Series 34 LED - 12/24V Masthead Navigation Light

A stylish family of slim-design, maintenance-free LED navigation light. Totally maintenance free

Housing

• High quality, impact & shock resistant polycarbonate.
• UV protected
• Non-corrosive
• Non-magnetic
• Seawater resistance

Optics

• Innovative lens technology for wide visibility

Range of visibility

• All Round White Optics – 2nm

Technical Data

• IP Classification: 67
• Maximum Ambient Temperature: 45C
• Body Material: Polycarbonate
• Colour of Body: Black
• Optic: White LED
• Material of Diffuser: Acrylic
• Visibilty (nm): 3

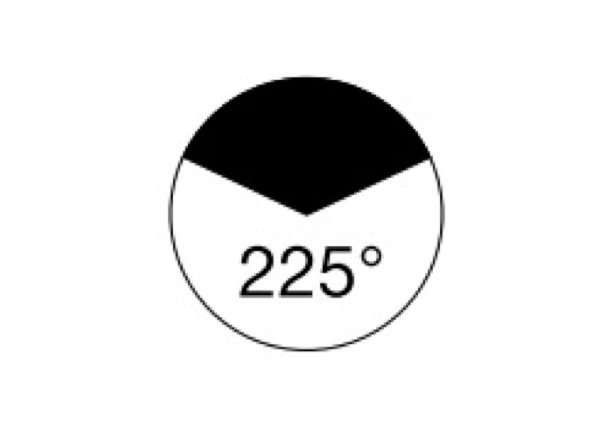

• Angle of visibility: 225
• Voltage from: 12V
• Maximum Voltage: 24V
• Light Source: LED
• Number of Lamps: 1
• Lamp power: 1.0 Watt
• Ready for Mounting: Deck Mount
• Suitability: Boats up to 20m - 65ft
• Approvals: IMO, BSH, GL, CE, Steuerrad
• Ship Type: Sail or Power

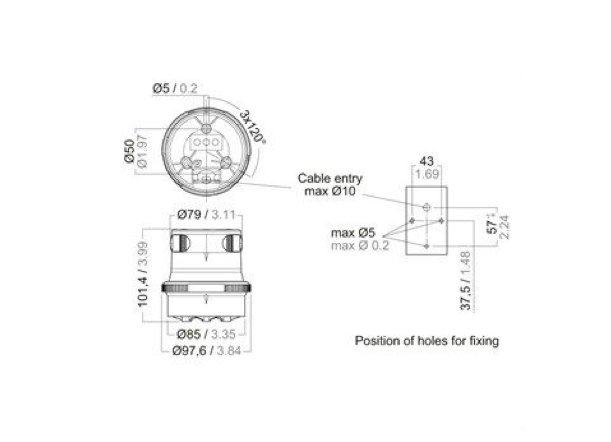

Dimensions & Weight

• Height: 102mm
• Diameter: 98mm
• Weight: 0.3Kg
