Navico NAC-2 Autopilot Core Pack - Incl. Computer, Precision-9, RF-25N

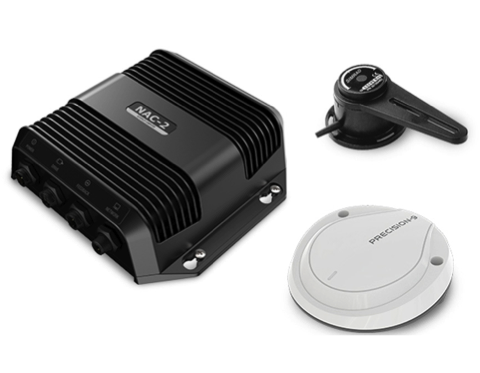

This NAC-2 Autopilot Core Pack is made up of the low-current NAC-2 autopilot computer, Precision-9 compass and RF-25 rudder feedback unit. The pack is designed to run small hydraulic drives and mechanical drives for vessels up to 10 meters (33 feet) in length.

The NAC-2 system’s control algorithms are designed to helm a yacht across a range of weather conditions and sea-states. The system contains the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units.

The NAC-2 is designed for boats up to 10 metres (33 feet) in length and is also suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (16 Amps peak).

NAC-2 features:

- B&G Reflex sailing algorithms

- Plug and play installation

- 12/24V input 8A continuous output, 12A peak

- Solenoid output capable

- 3A clutch output

- Optional Auto/Standby switch

The Precision-9 compact compass is easy to install and provides accurate heading and rate-of-turn information to B&G, Simrad and Lowrance autopilot, radar and navigation systems over an NMEA 2000® connection.

Precision-9 features

- Heading, Rate Of Turn (ROT), pitch and roll output over NMEA 2000®

- Accurate and reliable solid-state sensor technology

- Heading accuracy of ±2° after calibration

- Easily adjustable mounting bracket allows bulkhead or up-mast installation

- IPX7 waterproof for external up-mast mounting on steel hulled vessels

- Simple installation with a single NMEA 2000® connection

The RF25 is a medium duty rudder feedback unit with a SimNet interface. It attaches directly to Simnet systems for straight-forward installation.

RF25 features

- +/- 120 Degree Measurement

- Precise and Accurate; +/- 0.5 Deg

- SimNet Connectivity

- 5.5m attached SimNet Cable

Minimum product requirements: Requires a hydraulic steering pump or mechanical drive unit, and a compatible autopilot controller or networked multifunction display.

Key Features

Reliable autopilot performance based on B&G Reflex steering technology

Recommended for boats up to 10 metres (35 feet) in length

Output of 8 amps continuous, 16 amps peak

Clutch output (3 amps maximum)

Compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves

Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats

Supports RF25 rudder feedback units

Plug-and-play connectors for easy installation

NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays


Brand Navico

Application Boats up to ten metres (35 feet) in length

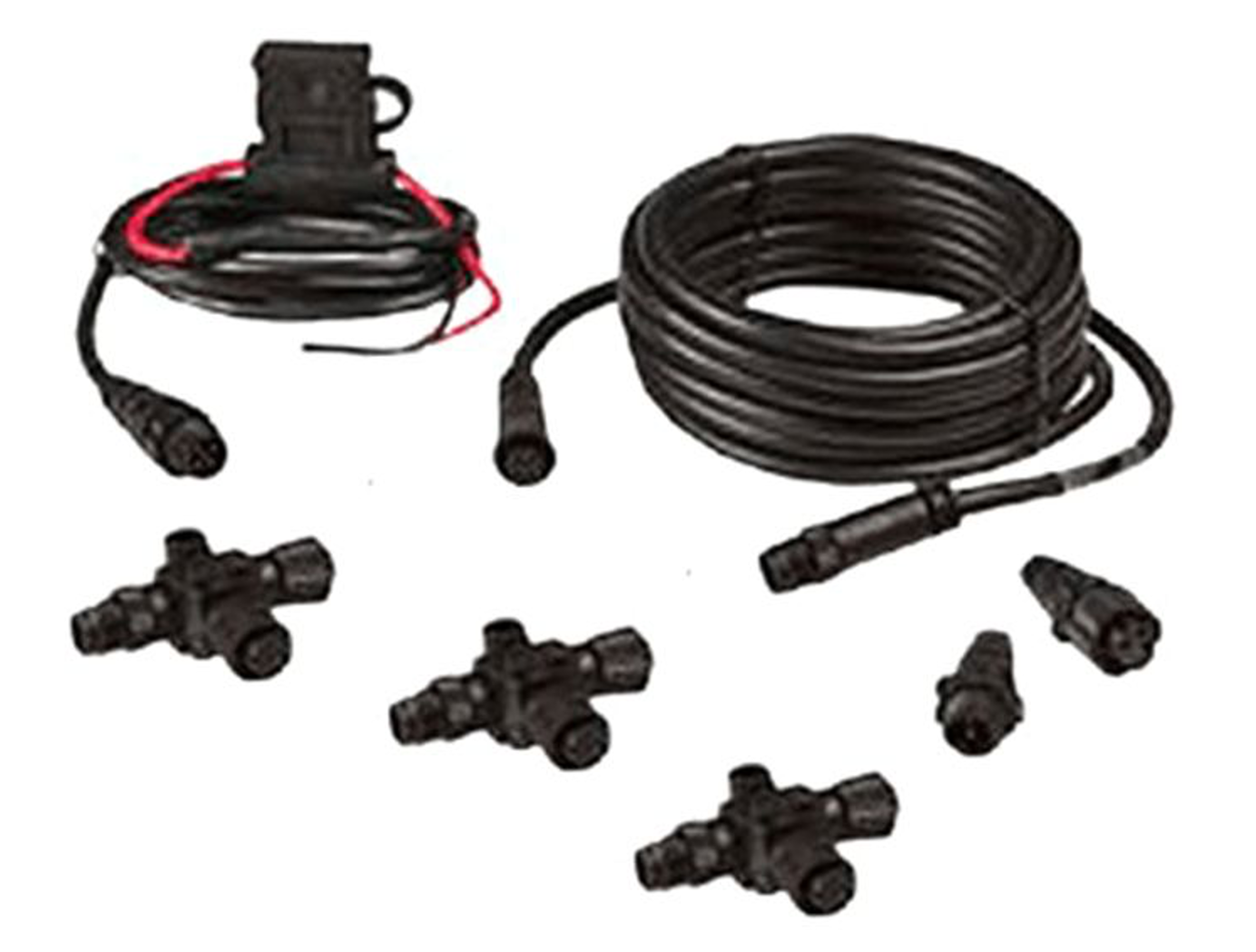

Contents NAC-2 Course Computer, Precision-9 Compass, RF25 Rudder Feedback Unit, NMEA 2000 Backbone Kit, Documentation
