£409.00 £449.98

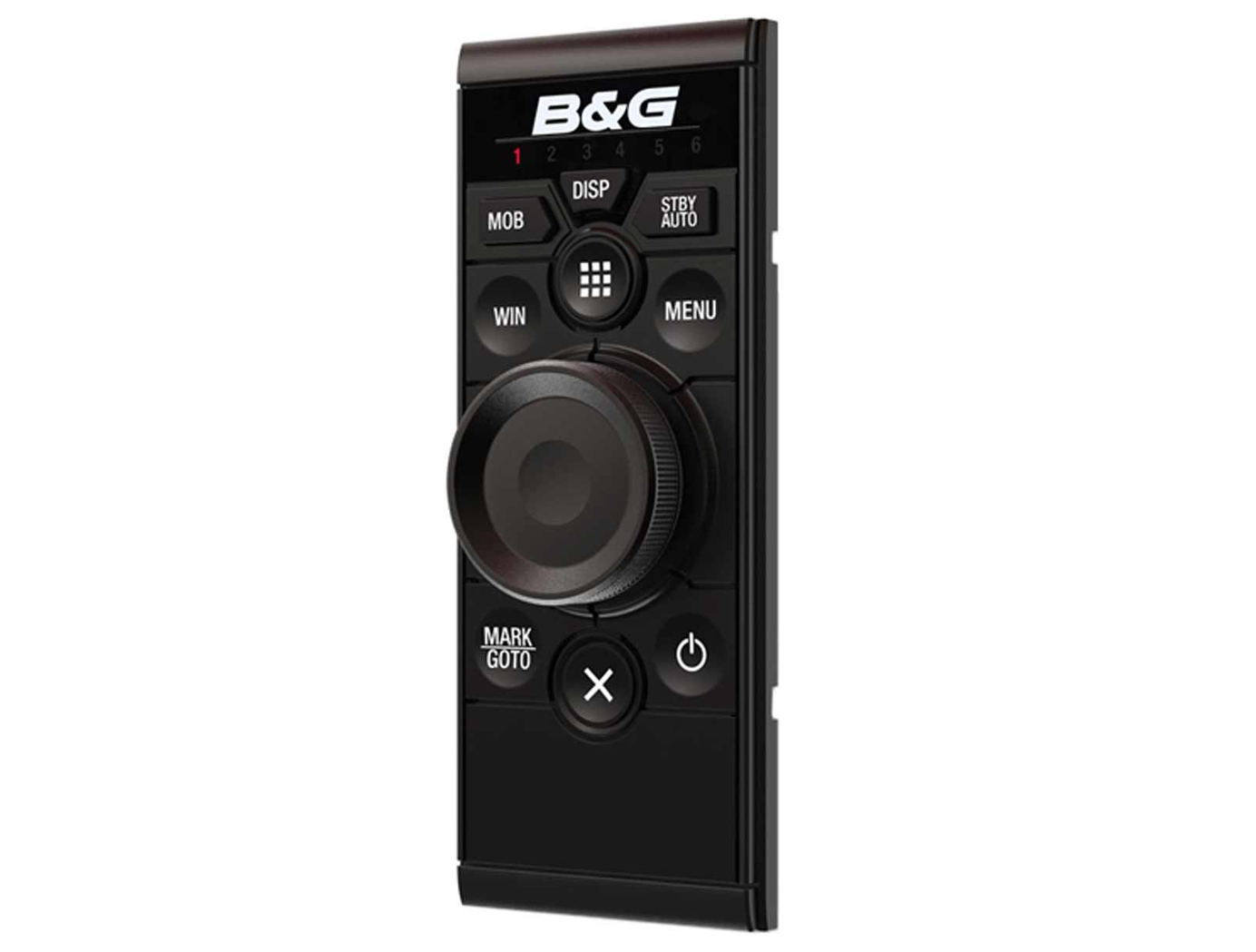

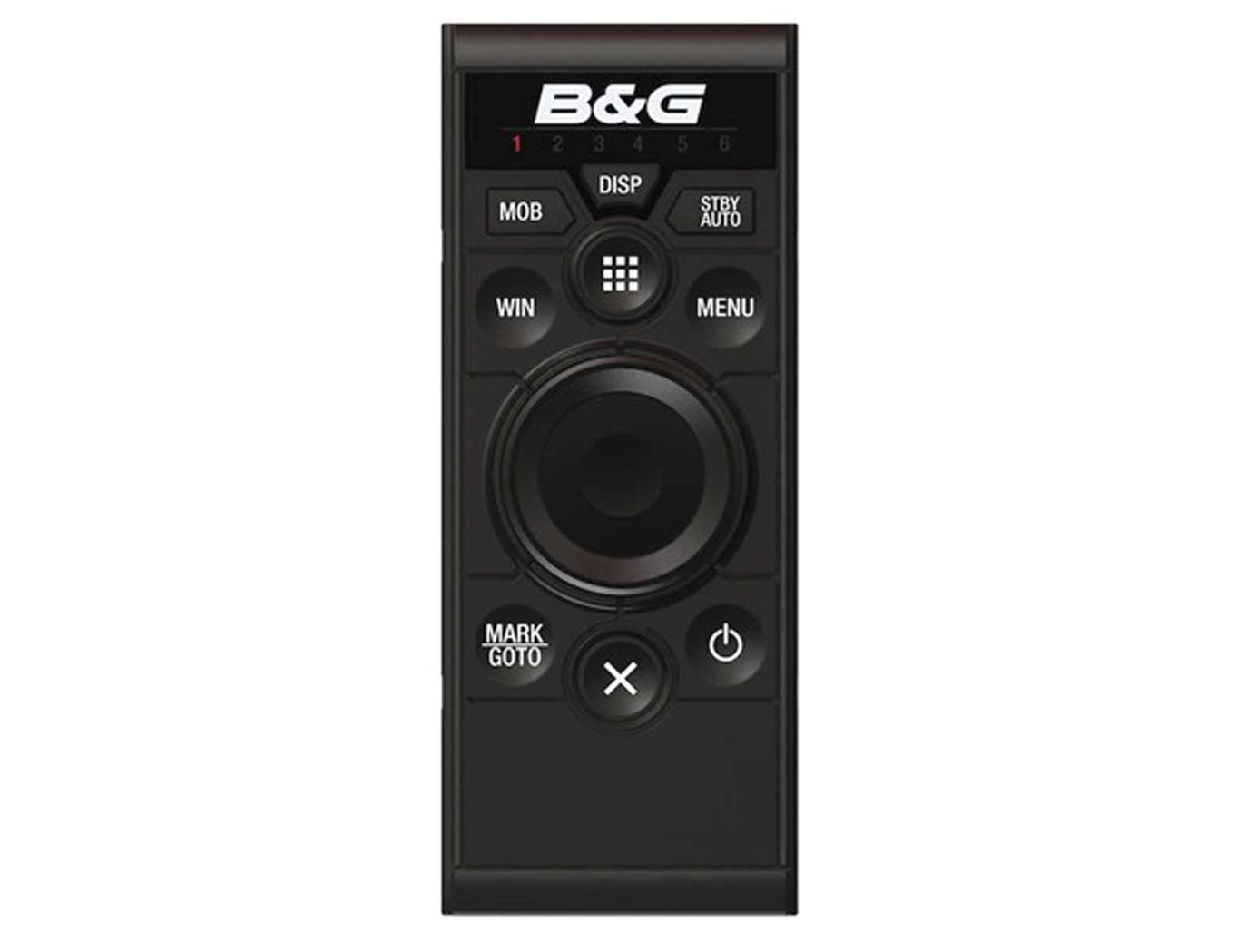

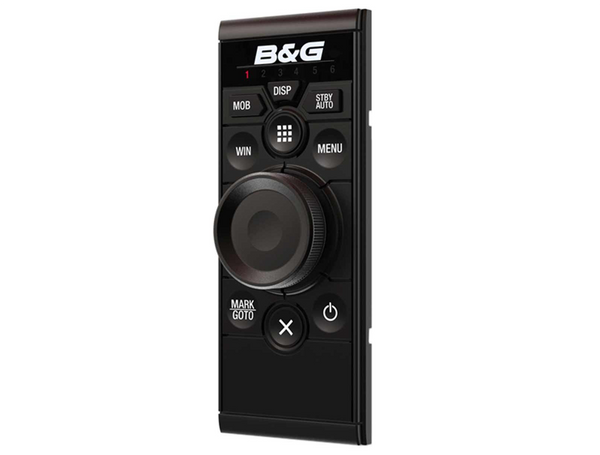

B&G ZC2 remote control 000-12365-001 is perfectly designed for mounting in a cockpit pedestal, by the chart table or in other locations suiting a ‘portrait’ orientation. The B&G ZC2 Remote Controller provides intuitive keypad and rotary-dial command of up to six Zeus², Zeus³, Glass Helm or Vulcan multifunction displays; and can be used to control a B&G autopilot via any networked display.
Enjoy remote control with a ZC2 remote

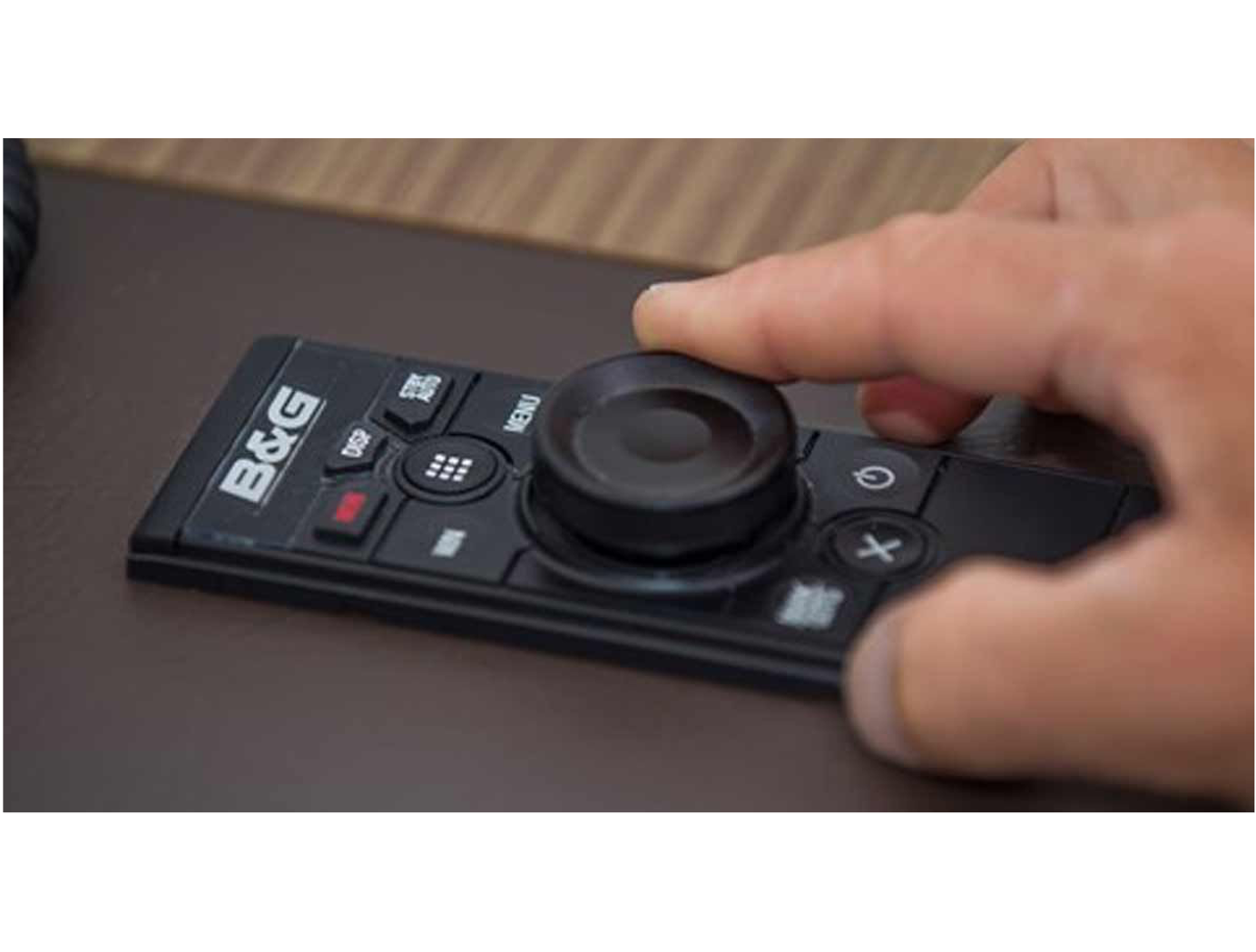

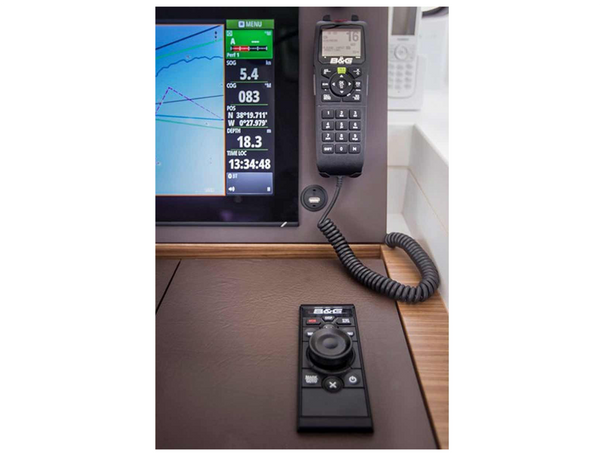

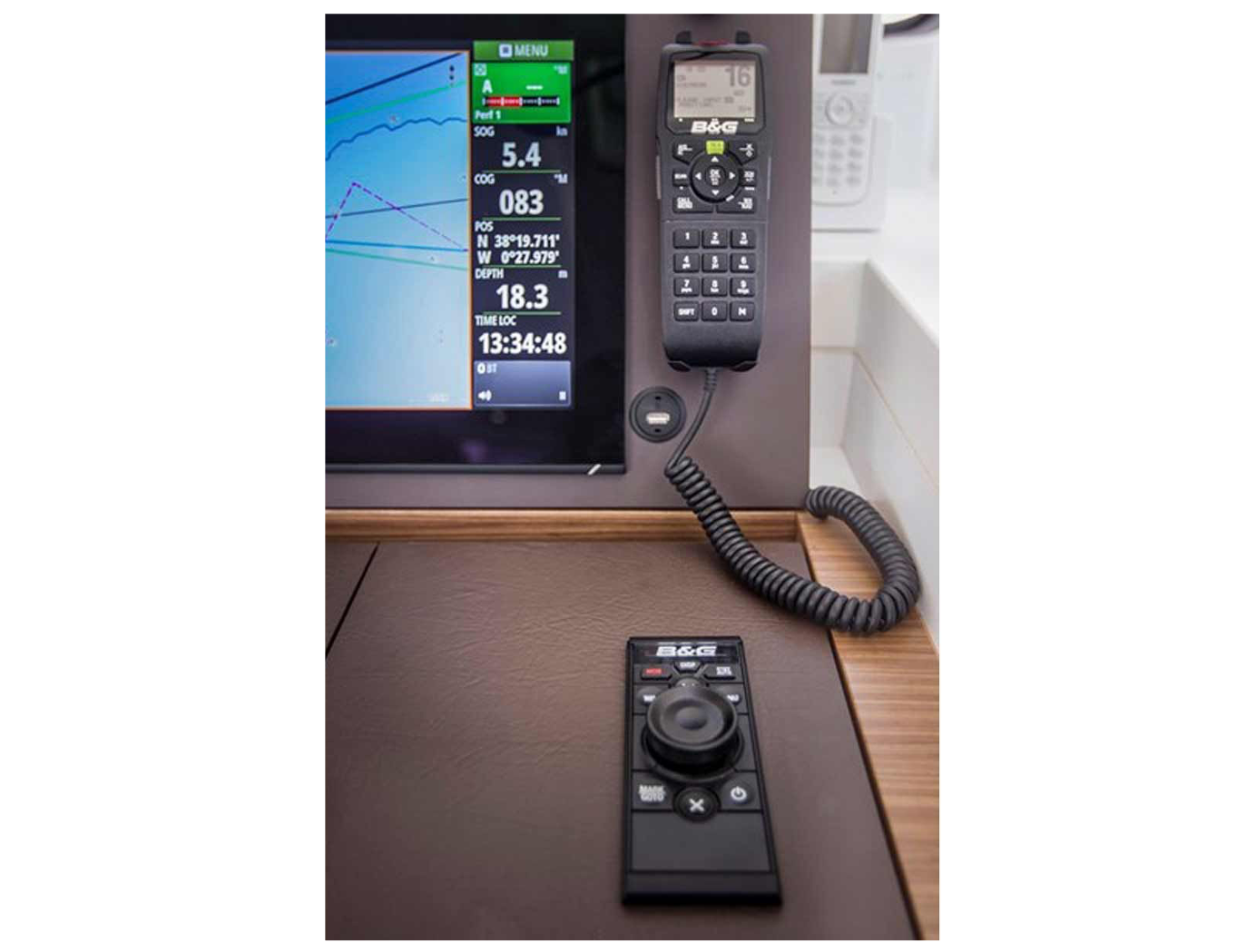

Take full control of up to six displays from one ZC2 remote controller. A neat and stylish install with a knurled aluminium controller, the ZC2 minimises clutter and enables you to take full fingertip control from wherever it’s mounted.
Humidity: Up to 95% RH
Weight: 0.3 kg (0.66 Lbs)
Interface: keypad
Landscape version also available, see 000-12513-001.
Key Features
Control up to 6 Zeus2, Zeus3, Glass Helm or Vulcan multifunction displays
Autopilot remote control via any networked display
High-quality aluminium control dial with built-in cursor functions
MOB function
Portrait orientation
Narrow design perfect for chart table mounting
Dash mount with low 8mm profile
Zero-profile flush mount with optional bracket
Integrated high-decibel speaker for critical alarms
Quickly switch displays with dedicated button & LED indicators
Single NMEA 2000 connection
Specifications
| Supplied With | N2K-T-RD Network T-Connector, OP50/ZC2 Keypad Sun Cover & ZC2 Dash Kit (Gasket, Bezel & Screws) |
| Connections | NMEA2000 Micro-C port, 2 LEN |
| Brand | B&G |
| Voltage | Supply: 12V DC (10V-16V DC) |
| Wattage | Typical: 0.6W, 1.0W Maximum, Minimum 0.5W |
| Fuse | Recommended 5A |
| Approvals | IEC/EN 60945 |
| Height | 150mm (5.9") |
| Width | 60mm (2.4") |
| Depth | 45mm (1.8") |
| Operating Temperature | -15°C to +55°C (5°F to 131°F) |
| Dimensions | Compass Safe: 200mm (0.9 ft) |
| Protection Rating | IPx6 Waterproof |
| Warranty | 2 Years |
| Mounting | Flush |
