B&G Zeus 3S 9" Chartplotter with World Basemap

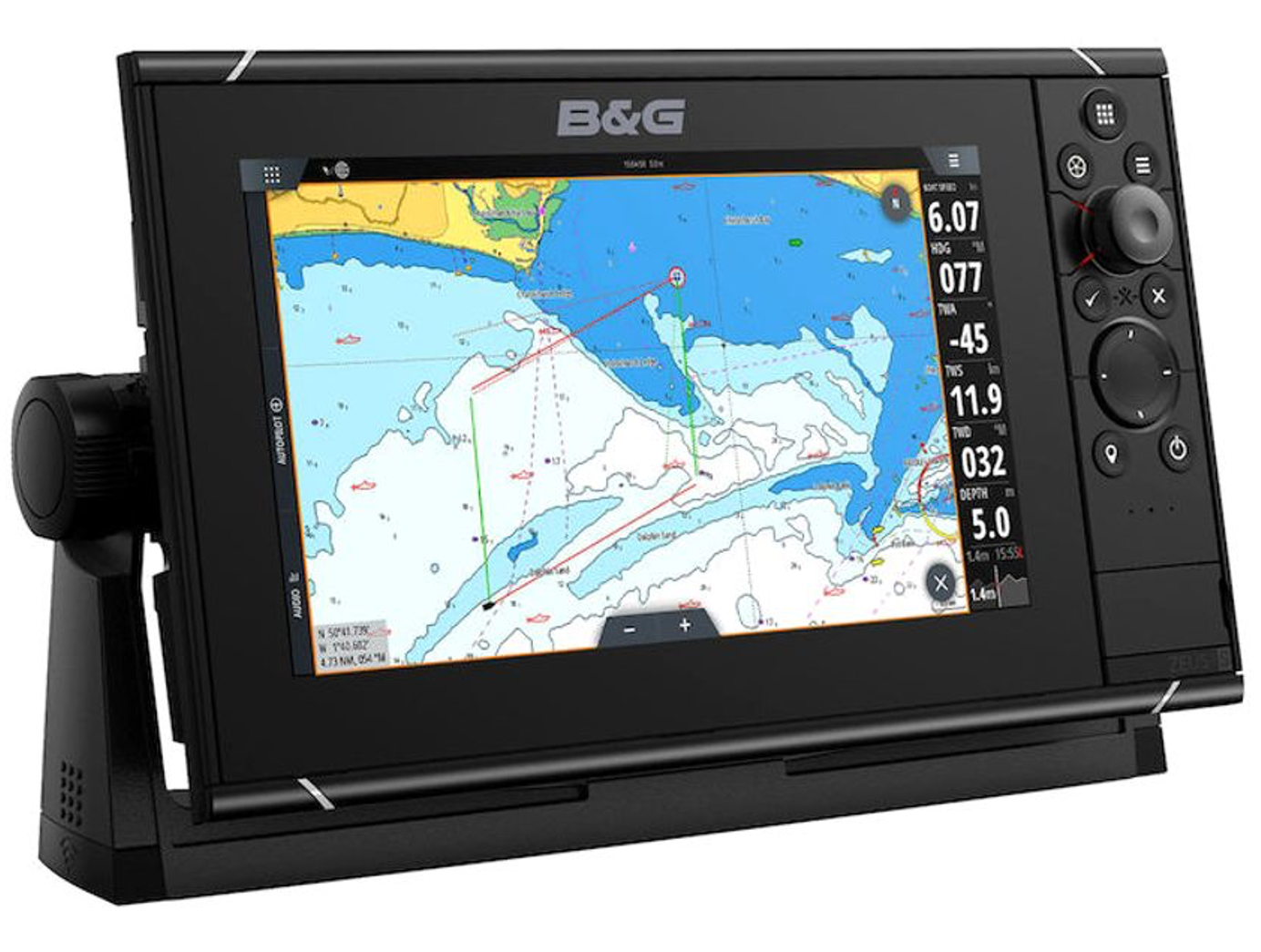

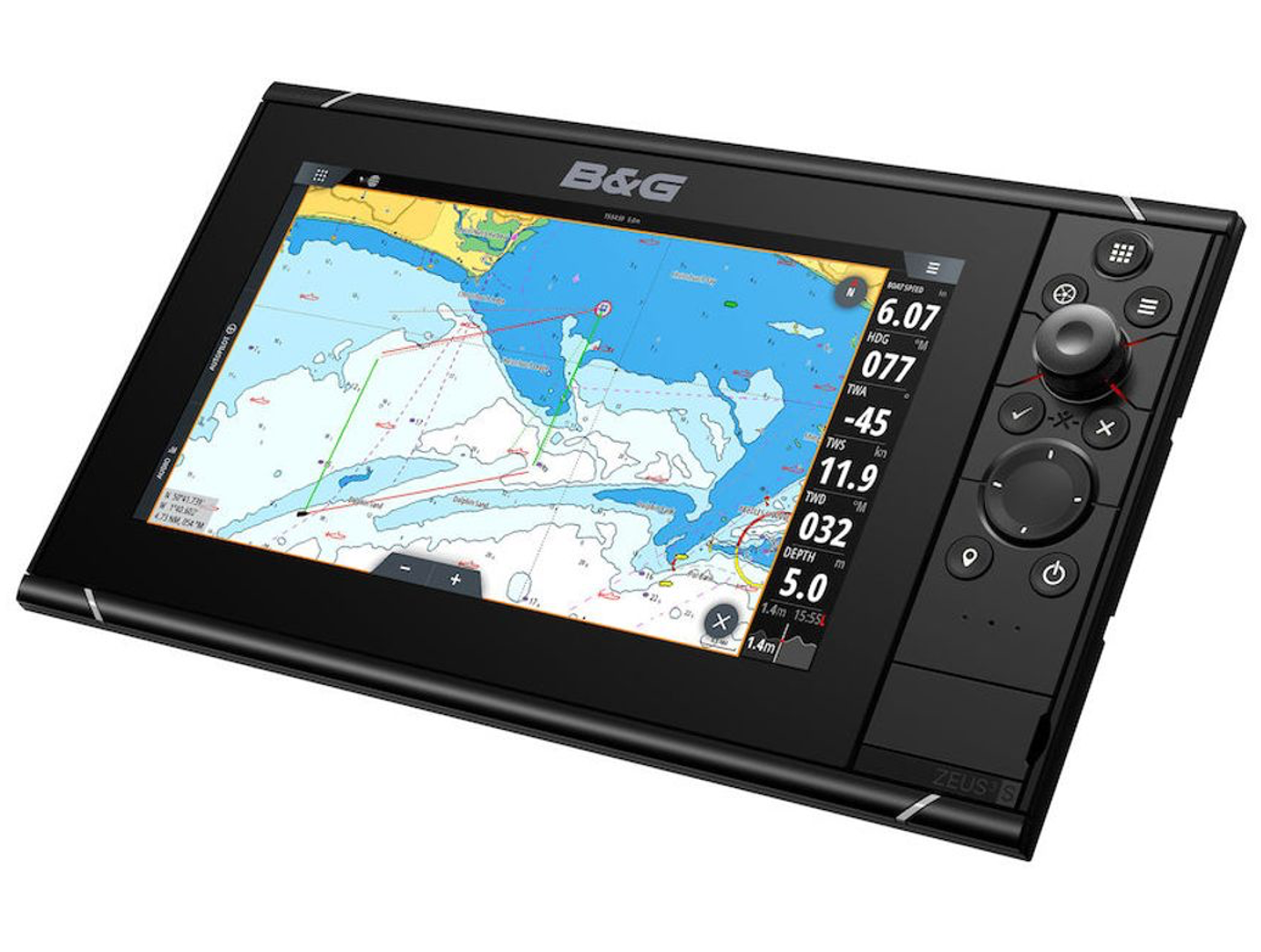

The easy-to-use Zeus³-9 chartplotter and navigation system is designed for blue water cruisers and racers. Its ultra-bright, wide-angle display combines an all-weather 9-inch touchscreen with a rotary dial and keypad for ultimate control in all conditions.

The unit features race-proven sailing features such as SailSteer, Laylines, and RacePanel. The user can connect with online services and mobile devices using built-in Wi-Fi, and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance, and enjoyment on the water.

Whats in The Box

• Zeus³-9 Chartplotter/Navigation System

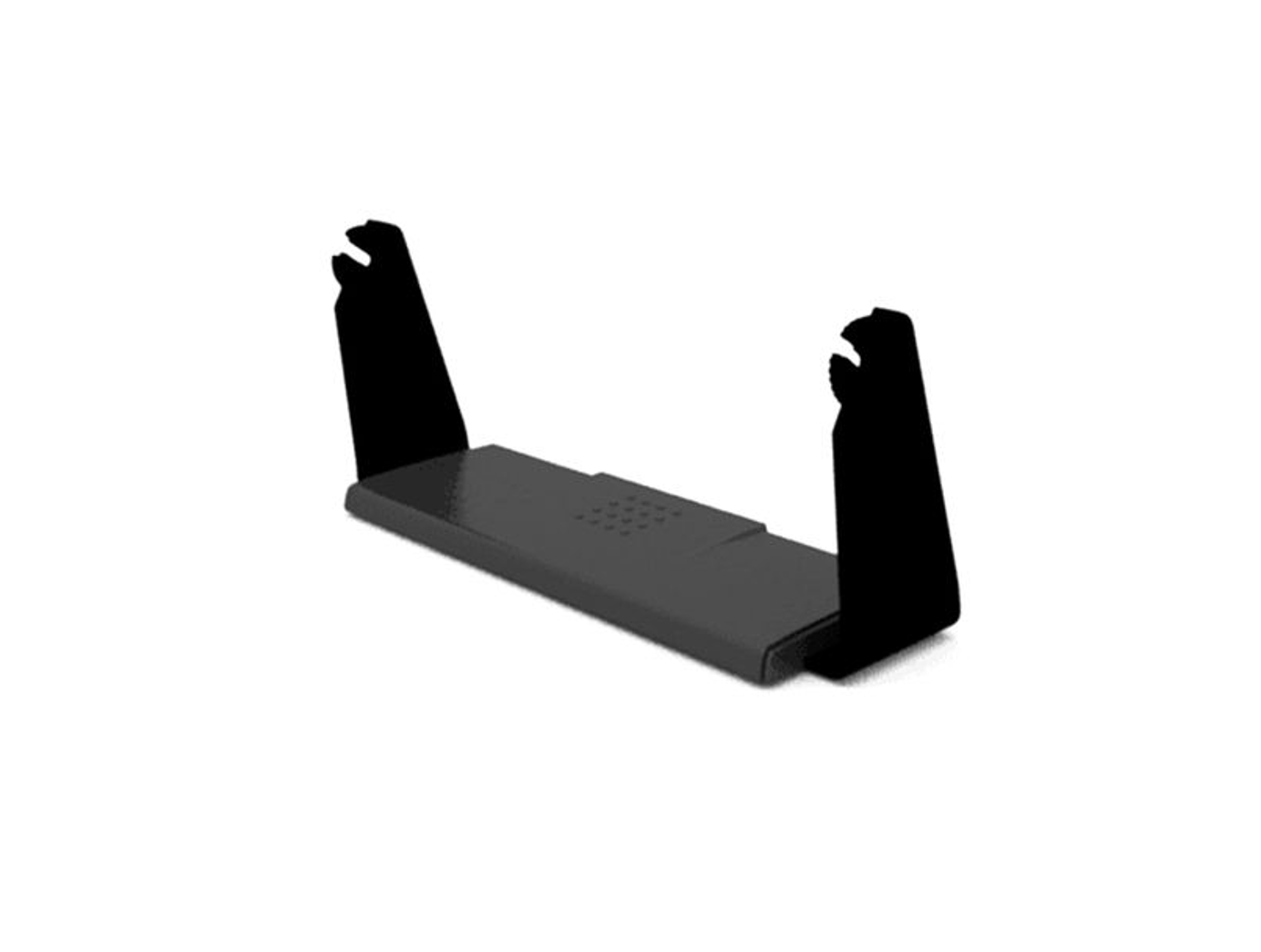

• Gimbal Bracket (000-13758-001)

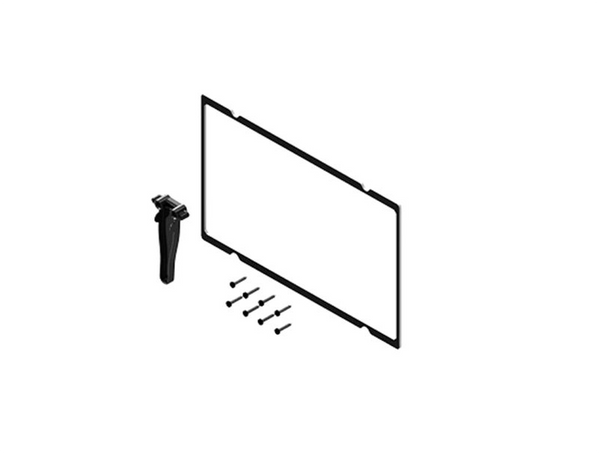

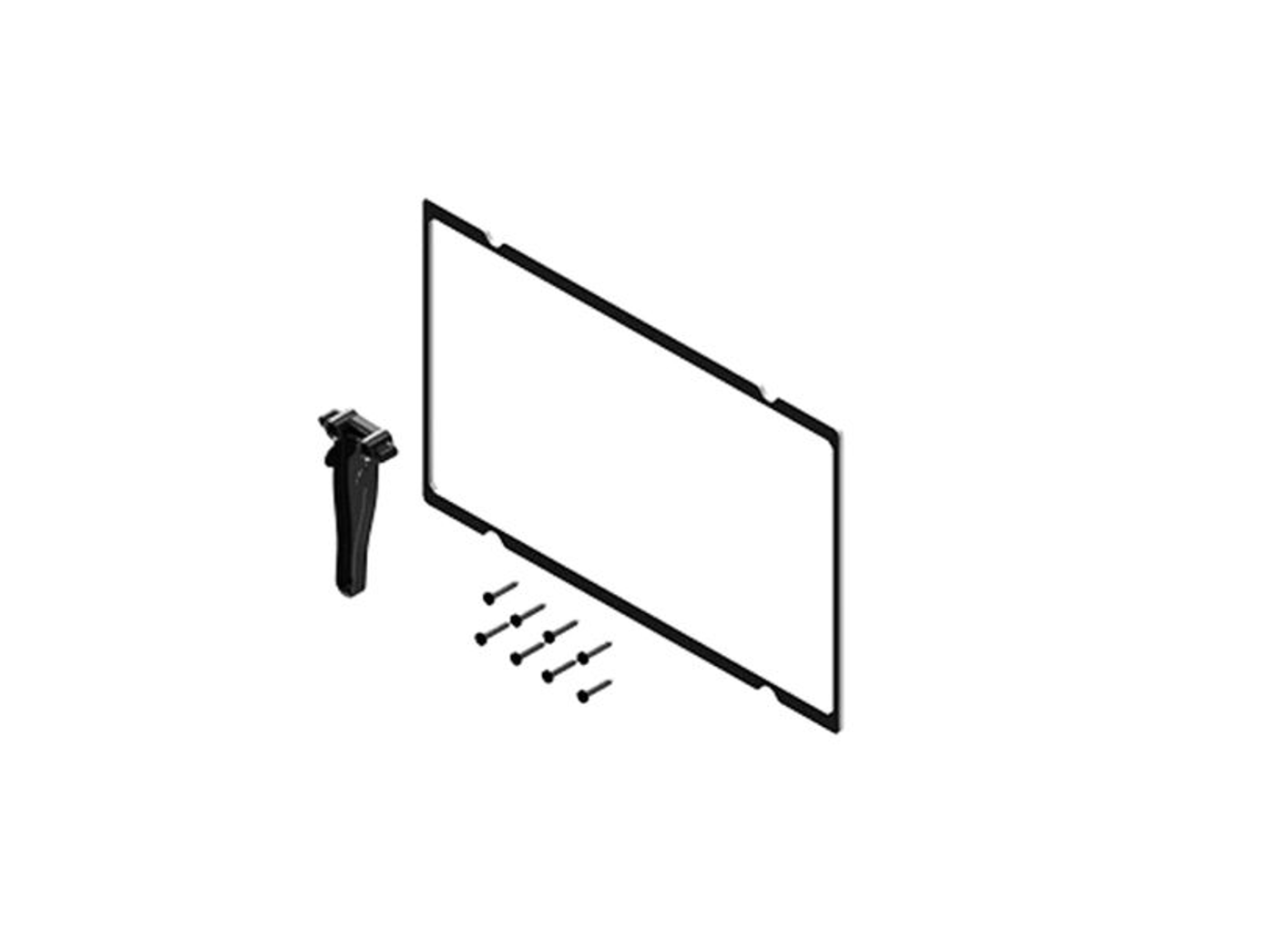

• Dash Mount Kit (000-13754-001)

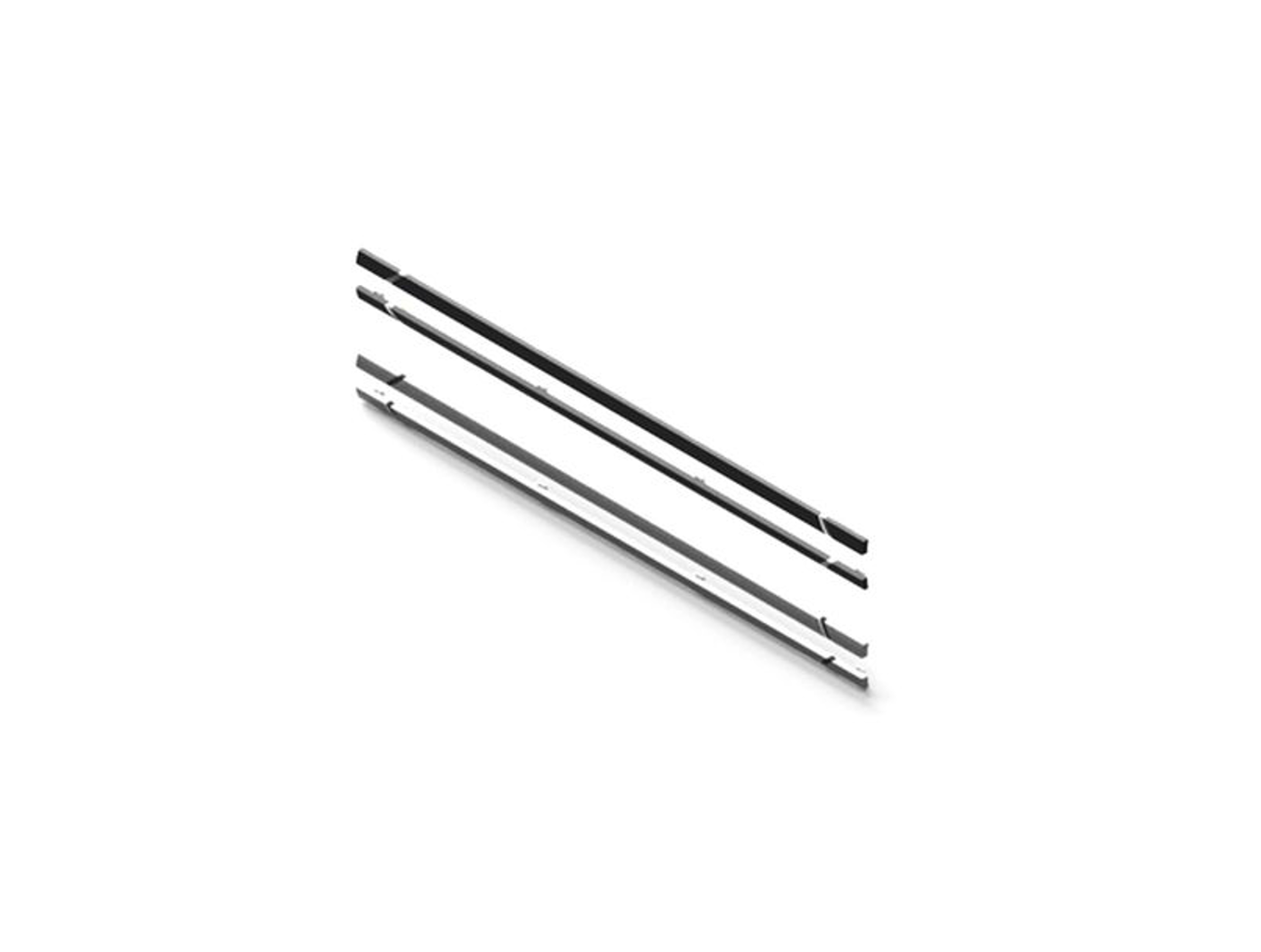

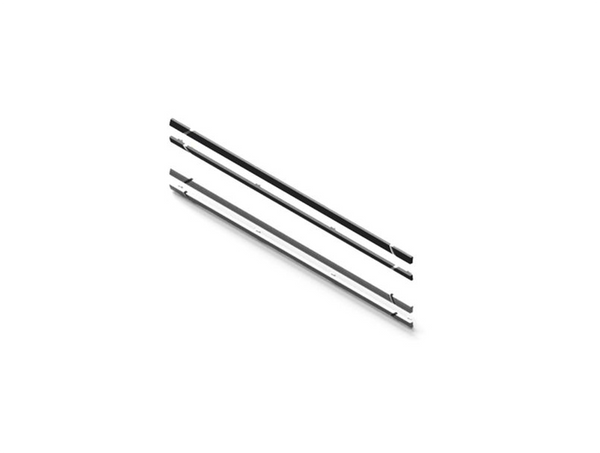

• Edge Bezels (000-13750-001)

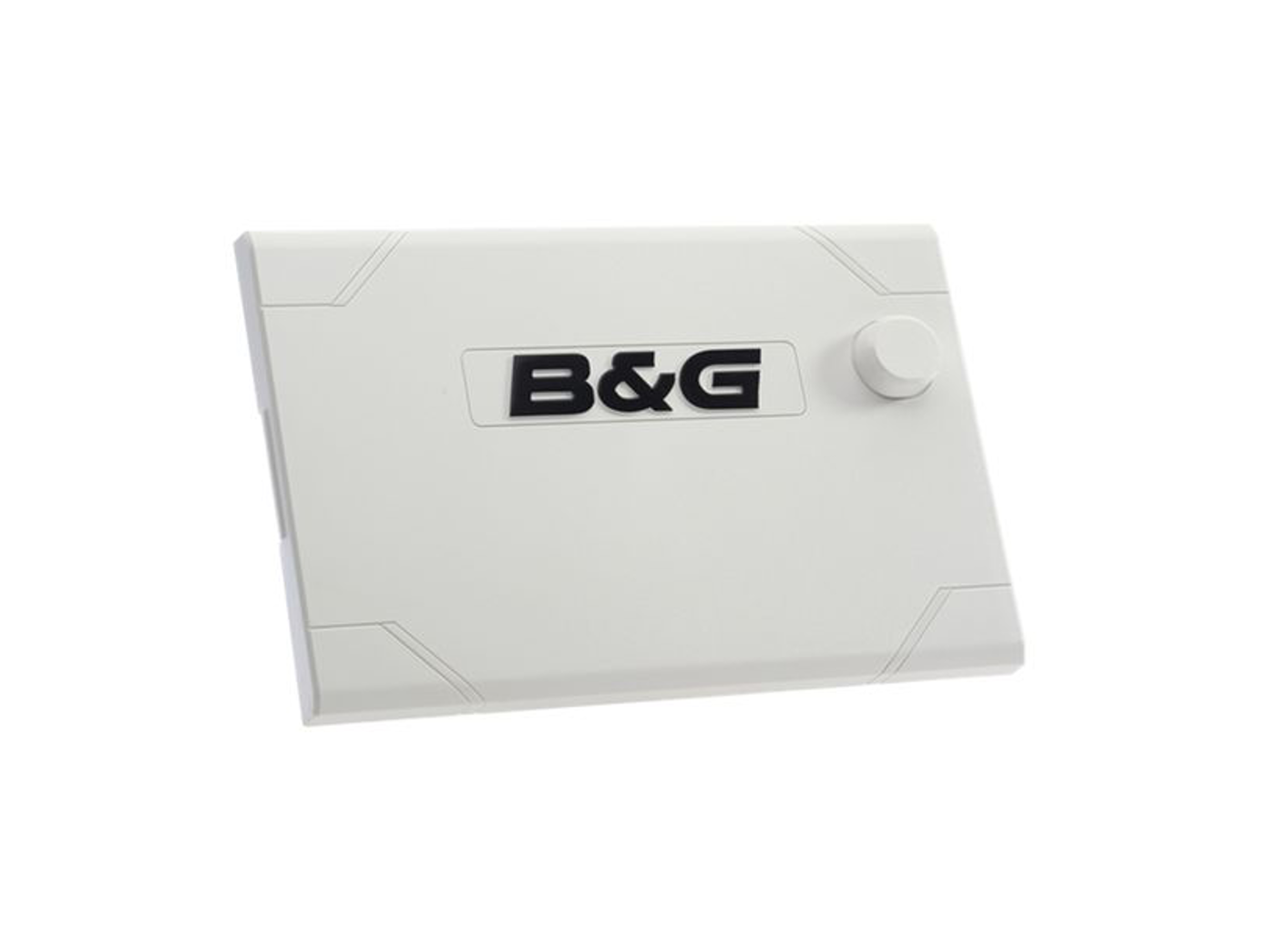

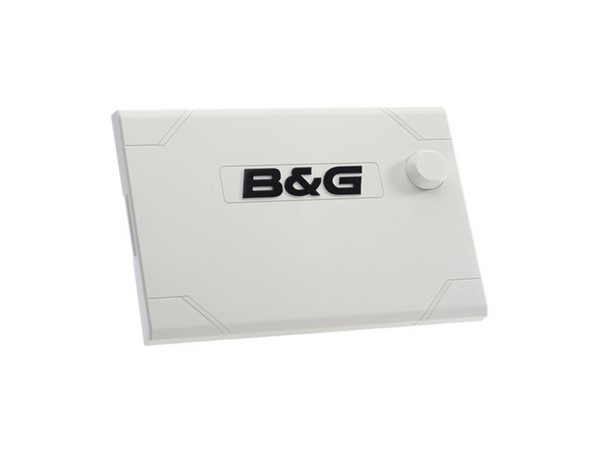

• Suncover for Display (000-13745-001)

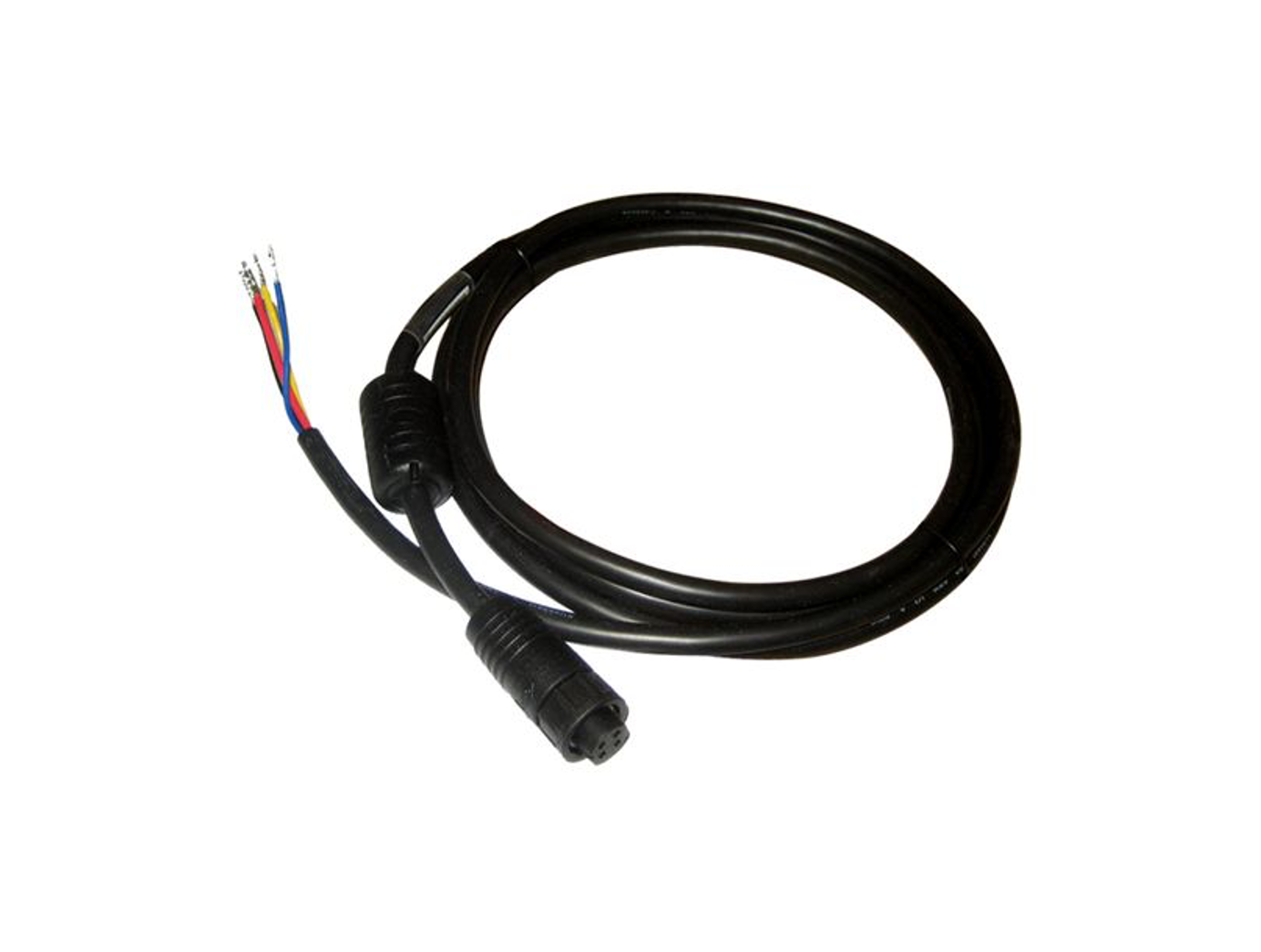

• Power Cable (000-00128-001)

Key Features

Super-bright 9-inch SolarMAX™ HD display

Fast and responsive sailing chartplotter and navigation display

SolarMAX IPS Screens Best in class visibility from all angles with or without polarised glasses

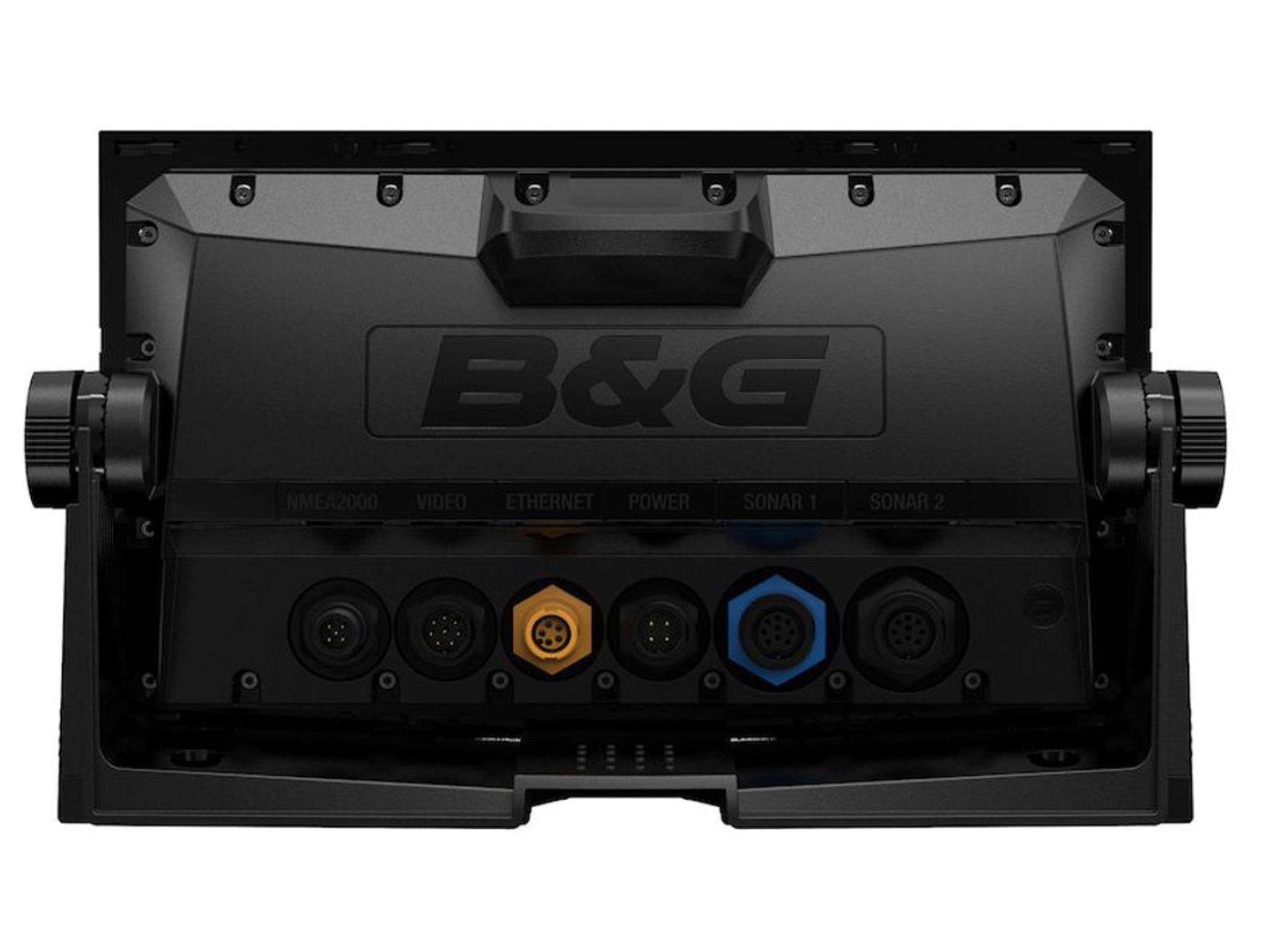

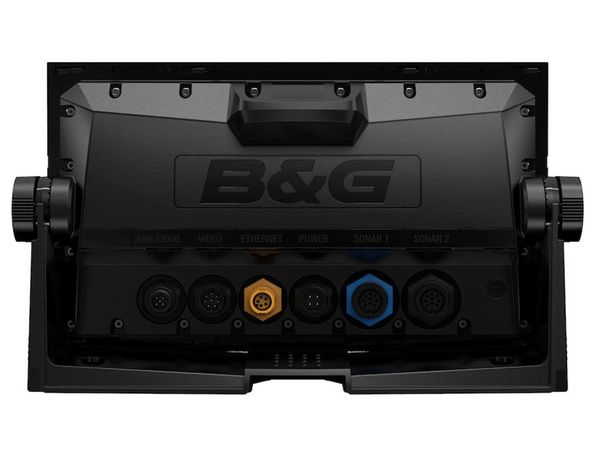

Connects to B&G’s performance network modules for the ultimate offshore performance: Halo Radar, Autopilot, ForwardScan™, NMEA 2000 and 0183, Integrated Pilot Control

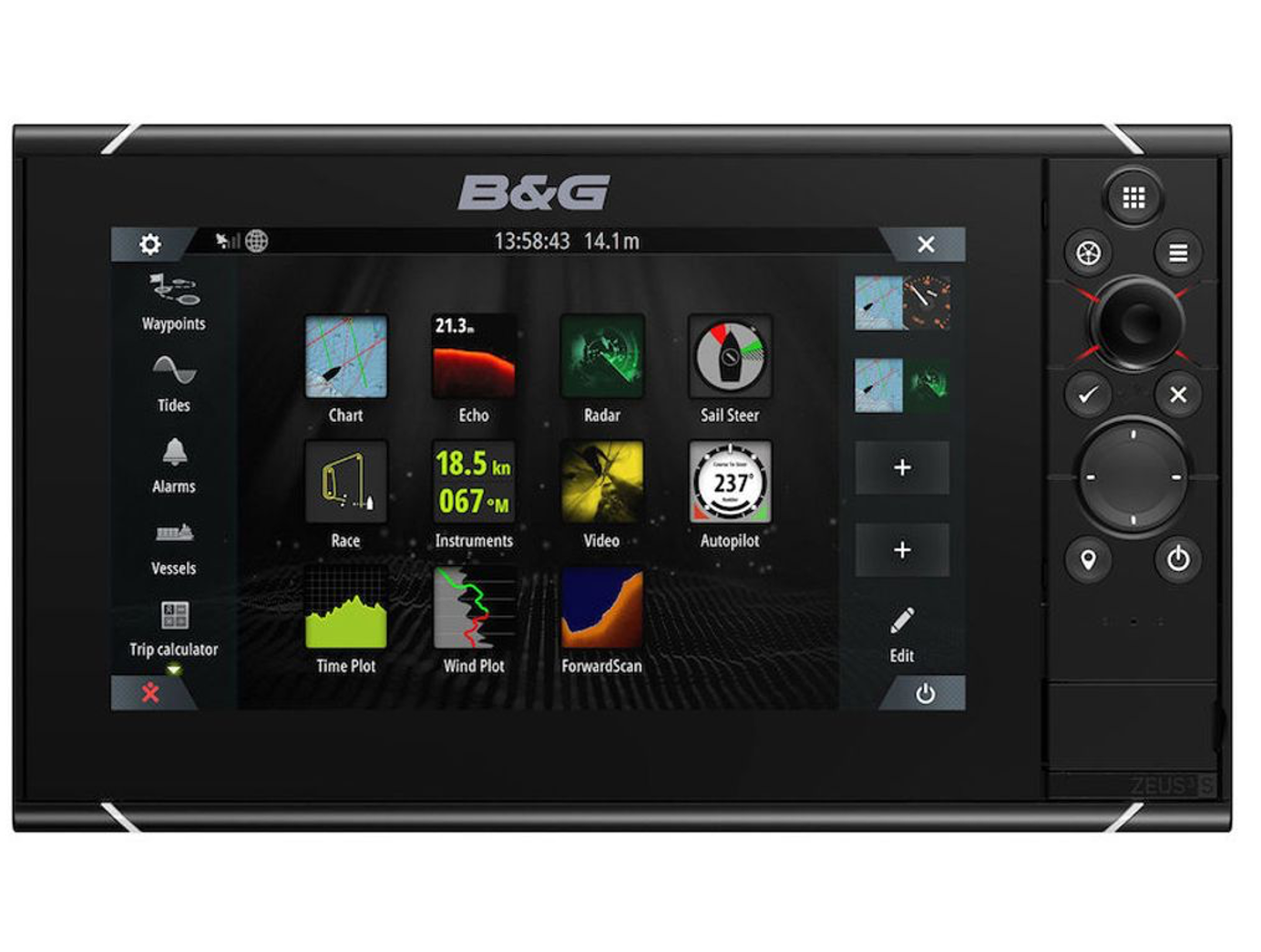

Full suite of sailing features: Sailsteer, PredictWind, RacePanel, LayLines and SailingTime

Up to 6-Way information panel split on the display

Connect with smartphones, tablets, and internet hotspots

Built in Wi-Fi


Brand B&G
Screen Size 9"
Series Zeus 3S
Model Zeus 3S 9
Voltage 10V - 31.2V DC
Fuse 5A (recommended)
Contents Zeus³-9 Chartplotter/Navigation System, Gimbal Bracket (000-13758-001), Dash Mount Kit (000-13754-001), Edge Bezels (000-13750-001), Suncover for Display (000-13745-001), Power Cable (000-00128-001)
Approvals CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.2
Consumption Max.: 21W
Temperature Range Operating: -15 to +55°C (5 to +131°F) / Storage: -20 to +60°C (4 to +140°F)
Angle 80° top/bottom, 80° left/right
Protection Rating IPx6 and 7
Warranty 2 Years
