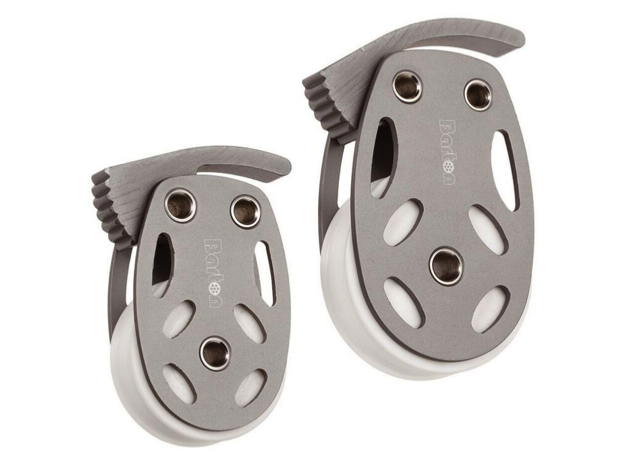

Barton High Load Foot Blocks with Cams

Featuring the same side plate and sheave construction as the high load blocks detailed above.
Key Features
  • Hollow stainless rivets allow for through-bolt fastening, giving added strength.
  • Through-bolt mounting also means that these blocks can easily be stacked to achieve double block capabilities. Note; stacking blocks will reduce working loads.
  • Fastening of the minimum diameter suggested should be used to gain full load capability.
  • Ensure that suitable mounting pads are used under deck.
Available in two sizes; specifications as per our high load foot block range. Suitable for a multitude of uses, including locking control lines on headsail furling gear
Techy Bits, Dimensions & Weights

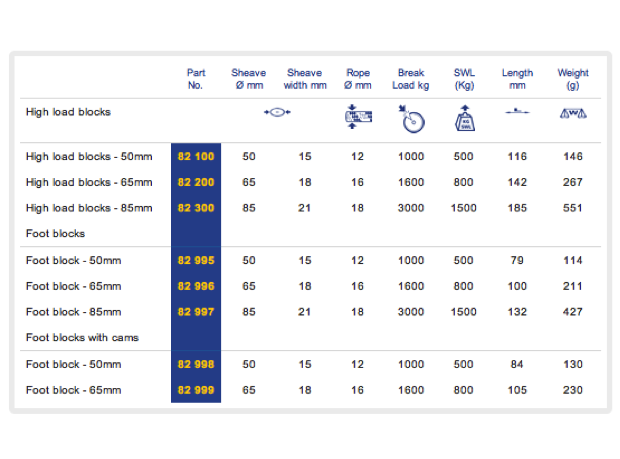

  • See attached image
  • Foot Block with Cam 50mm
  • Foot Block with Cam 65mm
