Barton Single Block Fixed Eye with Becket, Size 2-35mm Sheave

A strong, lightweight range of blocks for use on dinghies and dayboats or as lead blocks on larger craft.

With plain attachment eye. All the appropriate 35mm blocks are available with or without becket.

Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

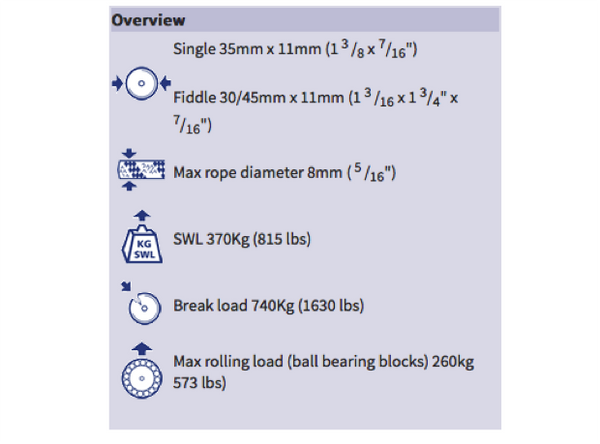

Techy Bits & Dimensions

• Sheave size: 35mm x 12mm (1 3/8  x 15/32")
• Fiddle: 30/34mm x 12mm (1 3/16" / 1 3/4" x 15/32" )
• Max rope diameter: 8mm (5/16")
• SWL: 370kg (815lbs)
• Break load: 740Kg (1630 lbs)
• Length: 88mm
• Weight: 56g

Important note - break loads

• Where break and safe working loads are stated, it is assumed that all sheaves are evenly loaded as in a purchase tackle. Uneven loading, or loading of one sheave in a double or triple block, will severely affect strength quoted. If unsure, please seek further assistance.
