Barton Single Stand Up Block Size 1-30mm Sheave

A strong, lightweight range of blocks for use on dinghies and dayboats or as lead blocks on larger craft.

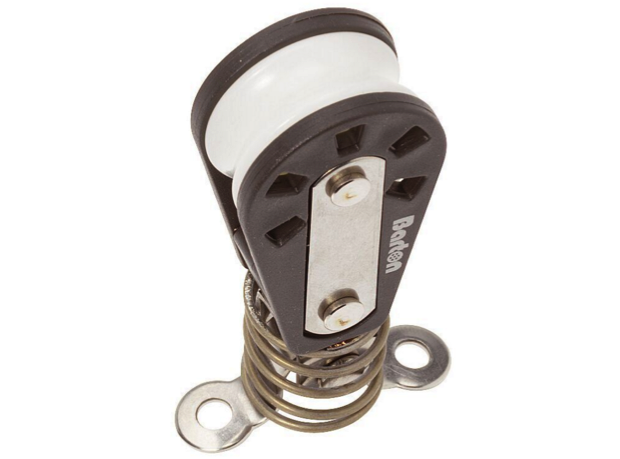

Stand up block with S/S  Lacing Eye and Spring

Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

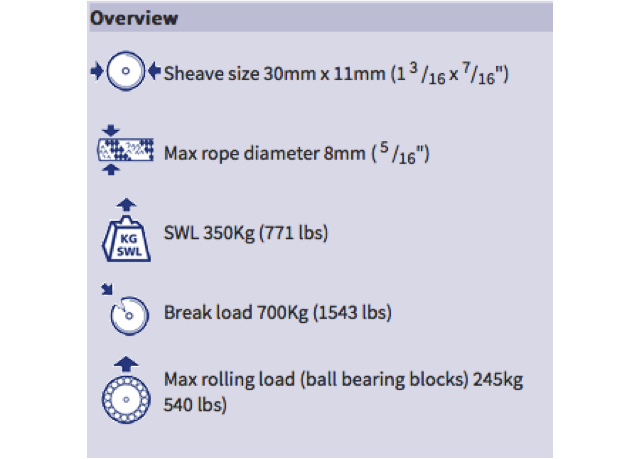

Techy Bits & Dimensions

• Sheave size: 30mm x 12mm (1 3/16 x 15/32")
• Max rope diameter: 8mm (5/16")
• SWL: 350kg (771lbs)
• Break load: 700Kg (1543 lbs)
• Length: 79mm
• Weight: 62g

• Where break and safe working loads are stated, it is assumed that all sheaves are evenly loaded as in a purchase tackle. Uneven loading, or loading of one sheave in a double or triple block, will severely affect strength quoted. If unsure, please seek further assistance.
