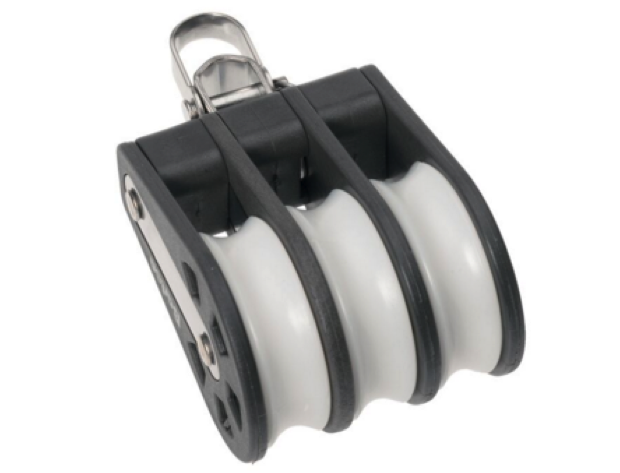

Barton Triple Plain Block Reverse Shackle Size 3 - 45mm Sheave

A strong, lightweight block for use on dinghies, dayboats and light cruising yachts. Ideal for mainsheet, vang, lead blocks or wherever a powerful and compact purchase tackle is required.

Removable shackle that can be set in-line or at 90° to the sheave.

Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of load

Dimensions & Weights

  • Sheave size: 45mm x 14mm (1 3/4 x 35/64")
  • Fiddle: 30/58mm x 14mm (1 3/16" / 2 1/4" x 35/64")
  • Max rope diameter: 10mm (3/8")
  • SWL: 385kg (848lbs)
  • Break load: 770Kg (169 lbs)
  • Length: 104mm
  • Weight: 183g
