Bennett Bolt 1612BCI Trim Tabs System with Soft Touch Control & 16" x 12" Trim Plates - Cost Price whilst Stocks Last - In Stock

£957.00 £1,595.00

Having sold Trim Tabs for my 45 years in the industry i think Bennett are amongst the best on the market place, with a quality product and great back up service if required. Hence why lots of boatbuilders fit or recommend them

Balance loads, plane faster, increase efficiency and performance with Bennett BOLT Electric Trim Tab systems. Cutting-edge technology, with a robust, watertight actuator, built to outlast any electric trim tab system on the market.

Bennett BOLT Electric Trim Tab Kits deliver power, precision and durability, allowing the skipper to get the best performance from the boat, reducing fuel consumption and improving pitching and porpoising, promoting earlier planing and reducing time in displacement mode.

BOLT electric actuators stop and start immediately with the press of the switch, they provide precise control and instant response time, they are simpler to fit and do not require the installation of hydraulic hoses or a pump.

This system comes complete with the AutoTrim Pro (AP000A1BC) All-In-One space-saving keypad control system packed full of features. Easy-to-use, it automatically controls bow rise and corrects listing

Key Features

Lifetime warranty for electric actuators
Water-tight design provides trouble-free operation for years
Installation is fast and simple
Reduce fuel consumption
Minimise labouring of engines
Minimise hull stress through pounding
Reduce boat wake
Eliminate squatting, listing and porpoising
Improve visibility
Increase speed whilst reducing fuel consumption
Multiple control options, tab sizes, and mounting options available

Specification

Trim tab dimensions vary with selection
13″ vertical transom space required:
Actuator stroke: 2.5″
Actuator length: 13.25″
Actuator voltage: 12V
Connectors: Deutsch, DT Series, 13A
Working forces:
- Actuation force: 750 lb
- Return Force: 750 lb
Current draw:
- Actuators: 20amp Max draw
- Helm Control: 20amp Max draw
- Control Unit / Relay Module: 20amp Max draw

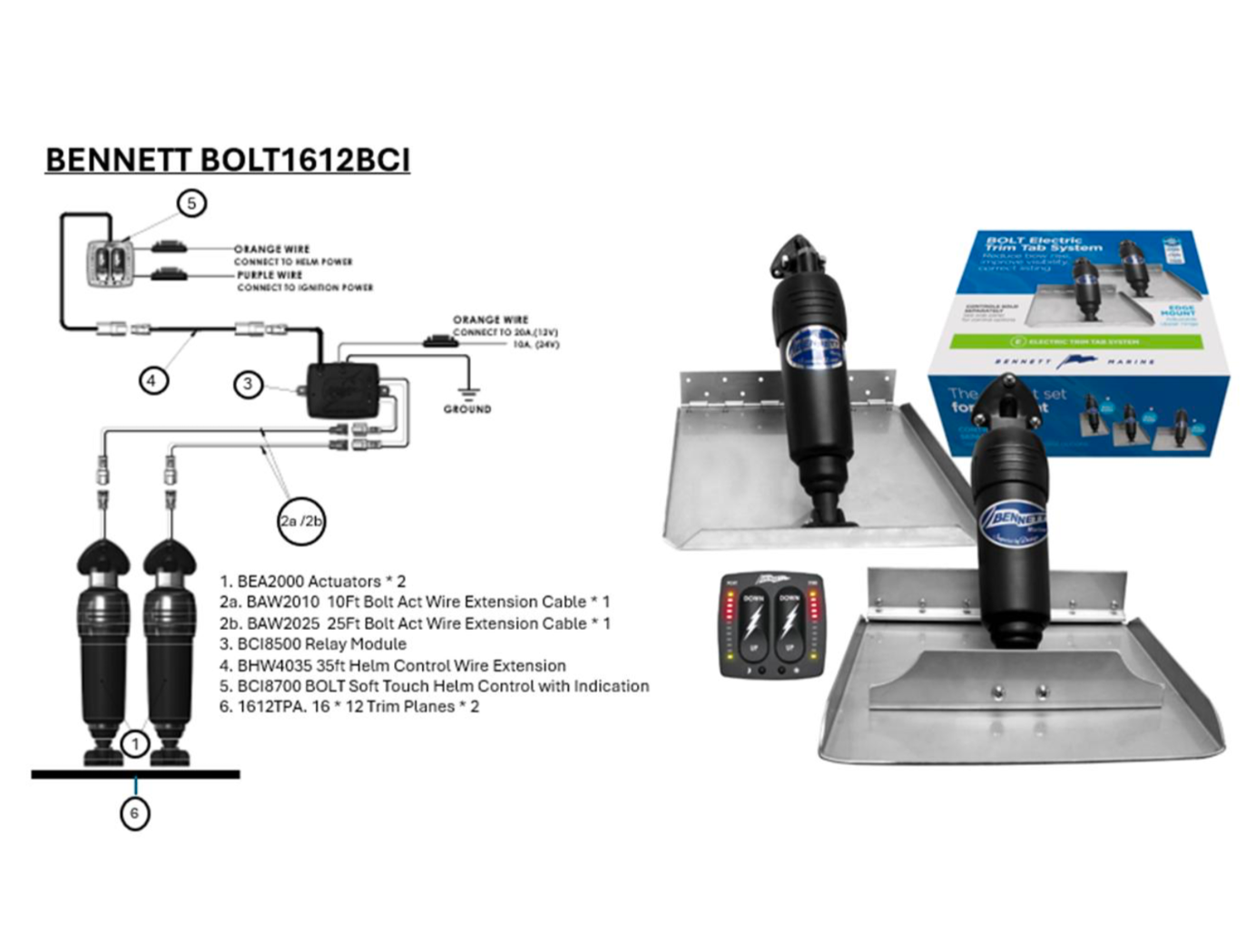

Whats in the Box

12-volt fixed upper hinge actuators with 6-ft. wire harnesses and waterproof connectors (BEA2000) * 2
Stainless steel trim planes (tabs) and mounting plates * 2 x 16" x 12"
10-ft. wire harnesses with waterproof connectors (BAW2010) 1
25-ft. wire harnesses with waterproof connectors (BAW2025) 1
Relay Module BCI8500
35ft Helm Control Wire Extension BWH4035
Soft Touch Helm Control with Indicators BCI8700 BOLT
