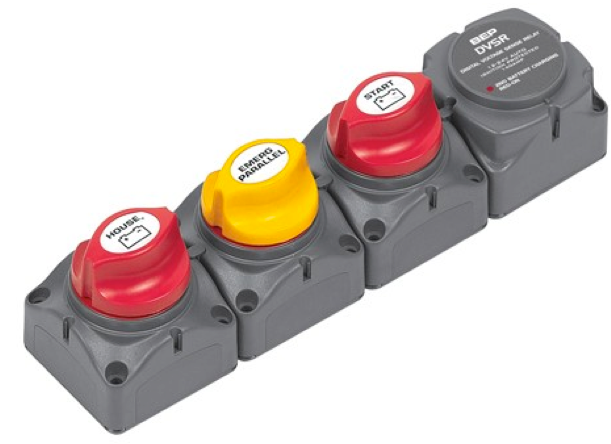

BEP Battery Distribution Cluster - 2 Battery - Horizontal

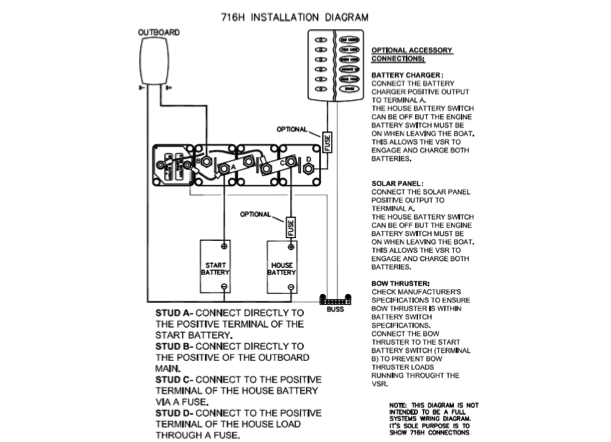

The 716-H-140A-DVSR is an ideal replacement for a battery selector switch. Just remove the selector switch and connect the existing wires to a 716 cluster, no extra wires are required for a fully automatic battery management system. To be used in a single outboard dual battery bank system or in a single alternator inboard engine dual battery bank system.

Key Features

  • No more flat start batteries.
  • Electronics protection from harmful engine start spikes.
  • The 716 cluster is for use on charging systems up to 150A.

To be used in the following systems:
1. Single outboard dual battery bank.
2. Single alternator inboard engine dual battery bank.


  • Continuous rating: 275 Amps DC
  • Intermittent rating: 455 Amps DC
  • Cranking rating: 1250 Amps DC
  • Voltage rating: 48 Volts DC
  • Operation: On/Off
  • Mounting: Recessed or Surface
  • Termination stud size: 2 x 3/8” (10mm)


  • Length: 272mm
  • Width: 68mm
  • Height: 101mm
