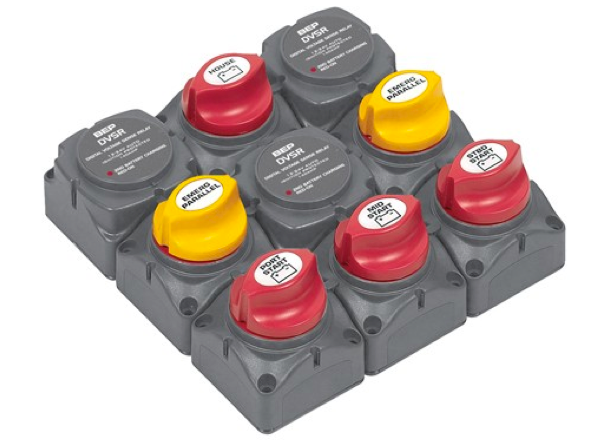

BEP Battery Distribution Cluster Triple Outboard Engines - 4 Battery Banks

$513.00 $616.00

This system is designed for triple engine installations. Once again using multiple VSR’s off each start battery giving combined charge from all 3 engines into the house battery via VSRs.

Part No 719-140A-DVSR

Specifications

Continuous rating: 275 Amps DC
Intermittent rating: 455 Amps DC
Cranking rating: 1250 Amps DC
Voltage rating: 48 Volts DC
Operation: On/Off
Mounting: Recessed or Surface
Termination stud size: 2 x 3/8” (10mm)

Dimensions

Length: 204mm
Width: 204mm
Depth: 101mm

Category: battery switch, battery switches, BEP Battery Distribution Cluster Triple Outboard Engines - 4 Battery Banks, general chandlery

Type: BEP Battery Distribution Cluster Triple Outboard Engines - 4 Battery Banks
