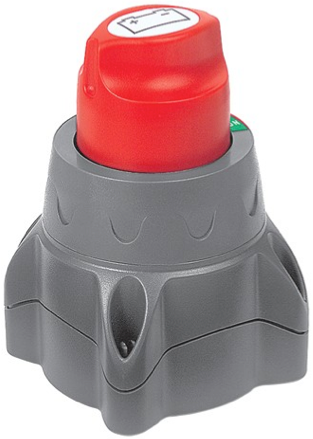

BEP Easyfit Battery Switch 700

A Battery Switch that meets most peoples requirements

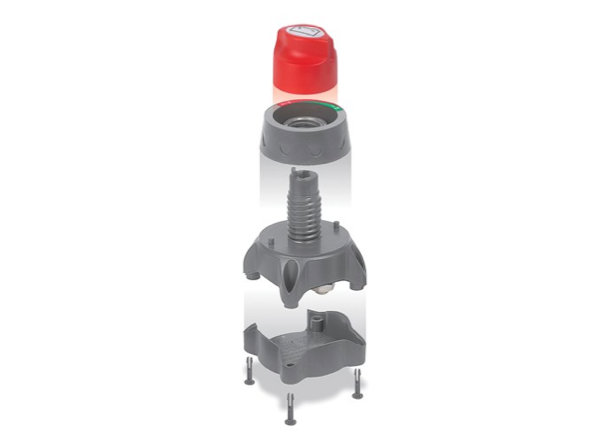

Following customer feedback about installations where switches need to be recessed through varying thicknesses of panels BEP developed the 700 Easyfit switch. It achieves this through an easily removable threaded ring allowing for panel thicknesses up to 19mm (3/4"). It uses the same features as the 701 with the removable key 45deg past the off position labelled handle and a removable back cover covering exposed terminals to meet ABYC specifications.

The switch can also be surface mounted offering a unique style compared to other switches available on the market.

The 700 Easyfit switch can easily be retro - fitted in place of most European post and lever type switches.

Key Features

  • Continuous rating: 275 amps
  • DC Intermittent rating: 455 Amps
  • DC Cranking Amps: 1250 Amps
  • DC Voltage rating: 48 Volts
  • DC Operation: On/Off
  • Mounting: Recessed or surface
  • Termination stud size: 2 x 10mm
  • Stuand nut: Tin Plated copper
  • UL Rating: Tested to UL Specifications
  • Ignition protecd
