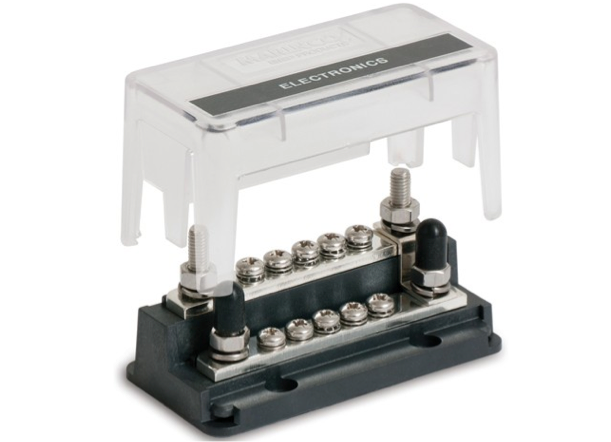

BEP PRO Installer Z Busbars - 2 Sizes

Marinco BEP Products have created a completely new concept for small cable termination with the Z-Bar range. These busbars maximize power density by utilizing high and low level bars to optimize cable runs, saving even more installation space.

Key Features

• 10 Way and 18 Way versions
• 4x 6mm (1/4") studs with anti-seize lubricant
• 4mm (5/32") terminals with captive lock washers
• 200A maximum per bar (2x 200A)
• 50 VDC
• Tinned CDA102 Copper conductors
• Stainless steel studs, washers, nuts for longevity in the marine environment
• Metric threads

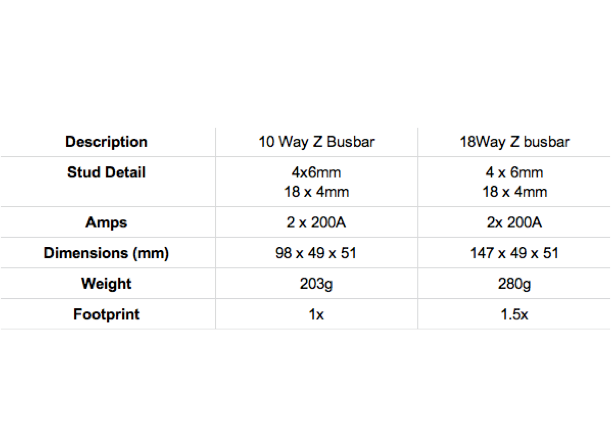

Specifications

• Stud Detail: 4 x 6mm, 18 x 4mm
• Amps: 2 x 200A
• Dimensions: 10 Way 98 x 49 x 51mm, 18 Way 147 x 49 x 51mm
• Weight: 10 Way 203g, 18 Way 280g
• Footprint: 10 Way 1x, 18 Way 1.5x

Models

• BEP Pro-Installer Busbar Z 10 Way 200A
• BEP Pro-Installer Busbar Z 18 Way 200A
