BEP Ultrasonic Tank Sensor Programing Device

For those whose systems are not calibrated then the Programing Device is required

Key Features

  • Handles common outputs – 240-33, 10-180, Vetus 10-300 and 0-5V tanks from BEP, Teleflex, Faria, VDO and many other popular instrument brands. (When connecting to non-adjustable gauges the TS1 must be pre-calibrated)
  • Low Profile Design and standard SAE 5 hole mounting pattern, allowing it to be retrofitted to practically all other sender brands.
  • Can be set for tank dimensions via computer using BEP™ Marine’s proprietary TS1 software, avoiding experimental tank filling on site
  • Is set for 0-2000mm depth off the shelf - not suitable for tank depths less than 200mm (8")
  • Operating voltage: 10-32V
  • Current draw: 25mA with 5V gauge output
  • Measurement method: Acoustic sonic measurement
  • Tank depth: 0 - 6.5 ft (up to 2000mm)
  • Accuracy Distance: 0 - 6.5 ft (2000mm) at 2mm accuracy
  • Mounting: SAE 5 stud mounting pattern with gasket, seal and screws (top mount only).
  • Environmental temperature: 39.2 - 149°F (4 - 65°C)
  • Chemical resistance: Petrol, diesel, water, toilet chemicals
  • Tank type style: Metal and plastic with non linear capacity
  • Works with petrol, diesel, fresh water, grey water and black water

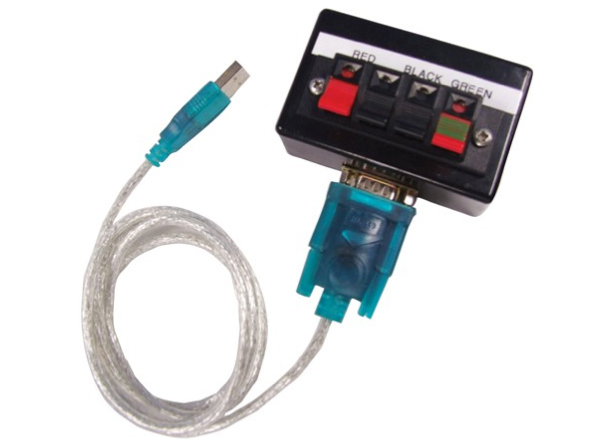

BEP’s proprietary Window’s based software application allows for TS1 senders to be programmed specific to tank shape, size and fluid type via a computer’s USB port. Programming is a simple process and can be carried out by downloading free software from www.bepmarine.com and purchasing a programming kit TS1-PK Part No. 8-94151. Once programmed, the specific tank parameters are stored in the non-volatile memory of the TS1
