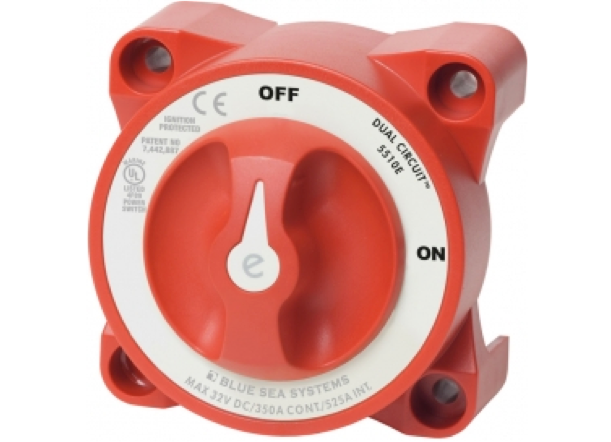

Blue Sea E Series Battery Switch - Dual Circuit

$92.00 $108.00

Easy to install quality dual circuit battery switch

Simultaneously switches two isolated battery banks.
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting

Key Features
  • Switch Type : Dual circuit
  • Colour : Red
  • Switch Positions : 2
  • Battery Combine : No
  • Alternator Field Disconnect : No
  • Maximum Voltage : 32V DC
  • Continuous Rating : 350A
  • Intermittent Rating : 525A (5 min )
  • Cranking Rating 10 sec : 1000A
  • Cranking Rating 1min : 750A
  • Battery Inputs : 2
  • Cable Clearance for 4/0 AWG Cables : 1.10in (27.94mm)
  • Cable size to Meet Ratings : 4/0 AWG (120mm)
  • Mounting Holes : Accept 3/8"-16 (M10)
  • Terminal Stud Torque : 140 in-lb (15.82Nm)

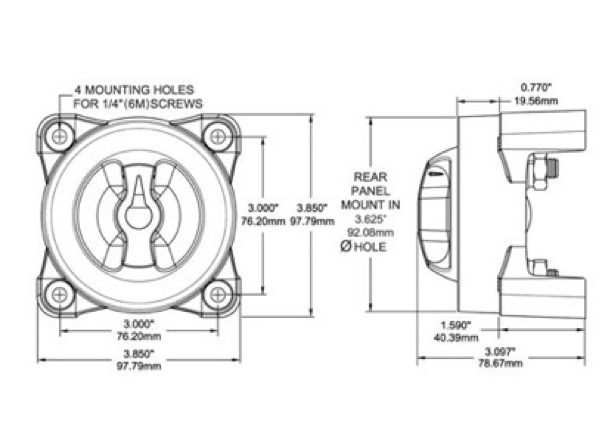

  • Dimensions : Height 98mm, Width 98mm
  • Weight : 1.30lb (0.59kg)
Continue Shopping or Checkout

Category: battery switch, Blue Sea E Series Battery Switch - Dual Circuit, general chandlery, switch panels & battery switches

Type: Blue Sea E Series Battery Switch - Dual Circuit
