Blue Sea M-LVD Low Voltage Disconnect 65A 12V

Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery life. A dead battery is one of the most common reasons for a tow. Don't get stranded with a dead battery. The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.

Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect. Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required)

Remote Control Switch Functions

  • Disconnect Voltage Adjustment - Sets desired disconnect voltage
  • Override - Temporarily delays circuit disconnect for 10 minutes
  • OFF - Temporarily disconnects circuits until voltage rises
  • Override or OFF - Silences alarm (optional alarm required)

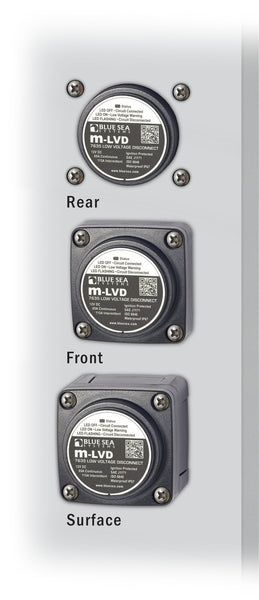

Case design allows surface, front panel, or rear panel mounting Rear insulating cover protects rear contacts. Waterproof – rated IP67 for temporary immersion

Key Features

  • Nominal voltage: 12V DC
  • Amperage operating current: 95mA (connected) 4mA (open)
  • Continuous rating: 65A
  • Intermittent rating: 115A (5min)
  • Maximum cable size: 1/0 AWG (50mm’)
  • Terminal stud length: 7/16 in (11.11m)
  • Terminal stud size: ¼’’- 20 (M6)
  • Terminal stud Torque: 60 in lb
  • Dimensions : See Image
  • Weight : 0.77lb ( 0.35kg )
