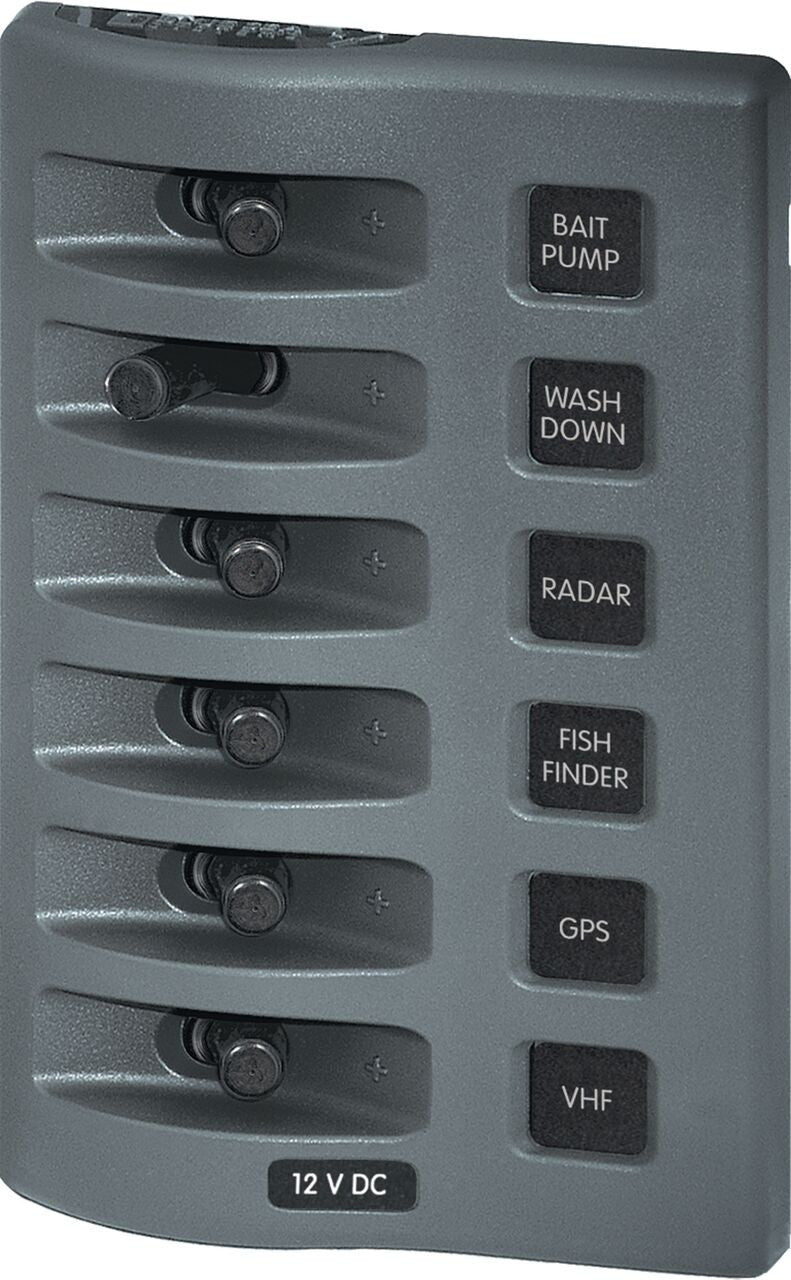

Blue Sea Weatherdeck Water Resistant Switch Panel - 4, 6 or 8 Way

Many switch panels mounted on the dash or flybridge do not stand up to harsh marine environment. WeatherDeck® Switch Panels are waterproof and rated IP67 (for temporary immersion in water) and use materials that won't deteriorate in the harsh sun, salt, and water. Many small boats, which already have circuit protection and do not run at night, simply need a switch panel which is waterproof. The new WeatherDeck® Switch Panel has all the rugged features of the proven WeatherDeck® Panel family however does not have the added cost of back lighting and circuit protection.
Key Features
  • Integrated switch guards reduce the risk of accidental switching
  • Panels can be mounted in four different orientations
  • Panel front rated IP67 when properly mounted with watertight mounting gasket
  • UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws
  • Waterproof : IP67
  • Positions : 3 Models 4, 6 or 8 Variants
  • Nominal Voltage : 12V, 24V
  • Circuit Protection : None
  • Maximum Amperage : 15A @ 12V DC (per circuit)
  • Panel Cumulative Rating : 45A
  • Material : Reinforced Polycarbonate
Dimensions
  • Height : 4 Position 4.30in (109.2mm), 6 Position 6.0in (152.40mm) 8 Position 7.70in ( 195.58mm)
  • Width : 4, 6, 8 Position 3.88in ( 98.5mm)
  • Depth : 4, 6, 8 Position 2.50in ( 63.5mm)
  • Weight ; 4 Position 0.41kg, 6 Position 0.52kg, 8 Position 0.7kg
Whats in the Box
  • Switch Panel
  • Waterproof DC label kit - 30 black square labels V1 ( Label )
  • Weatherdeck toggle switch boot - black
  • Weatherdeck toggle switch SPST- ON- OFF
  • Instructions
Models

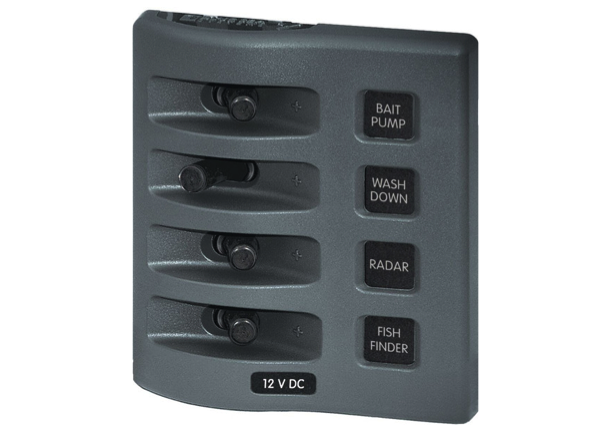

    • Weatherdeck Water Resistant Switch Panel 4 Way

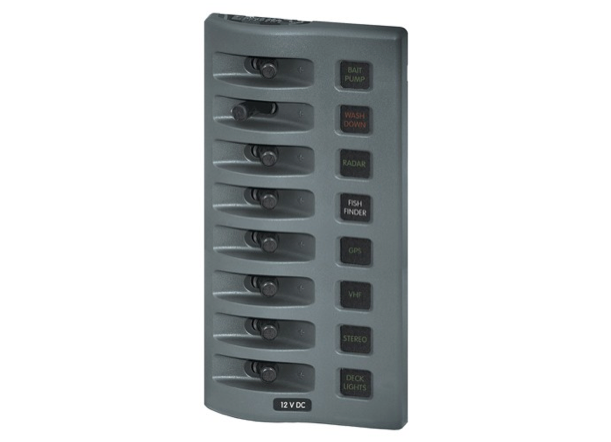

    • Weatherdeck Water Resistant Switch Panel 6 Way
    • Weatherdeck Water Resistant Switch Panel 8 Way
