Bluefin Great White GW20 Thru Hull Interchangable LED Underwater Boat Light 24V - 3 Colours

£1,199.00 £1,338.00

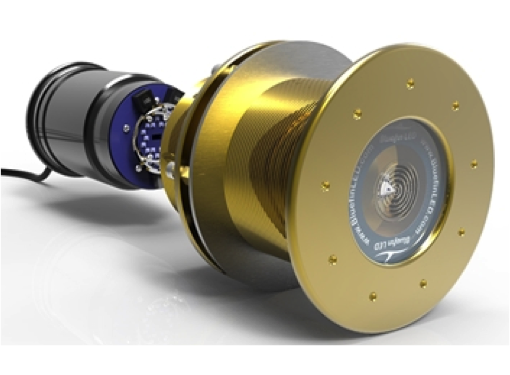

The Great White GW16 Underwater LED Light produces 13000 fixture lumens and has almost unlimited mounting options thanks to a ultra low profile bezel (4mm) and internal driver system. Thru Hull mounting offers secure fixing with the additional benefit of a removable LED cartridge to eliminate the need for hauling.

Suitable for transom and side mounting on all hull types.

Simple installation thanks to our inbuilt driver technology, just two wires to connect. Reverse polarity protection with active thermal control, Guard X protective coating prevents marine growth.

Specification

Suitable for transom and side mounting
Thru-Hull interchangeable requires 101mm/4" entry hole
Recommended for boats up to 30+m/105+ft
Max Lamp Lumens 16000 / Fixture Lumens 13000
Typical LED life expectancy 50,000 + hours
Voltage 24v, Power Draw 5.1A
For Mains voltage systems purchase our 110/240V PSU
Over voltage,current,reverse polarity,active thermal protection
Beanm Angle: 65 Dia FWHM
Fixture profile 4mm,0.16"
Fixture diameter 140mm,5.5"
Fixture Length 170mm,6.69"
Light Overall Length: 170mm
Hole Cutout Diameter: 101mm
Light Aperture: 70mm
Lens: optical grade 8mm Boroscilicate glass,65 degree beam angle
Body AB2 Bronze throughout
Weight 5.2kg/11.44lbs
2 years warranty
Delrin Isolation Sleeve must be used if fitting lights to Steel or Aluminium hulls
RINA Type Approved

Models

Great White GW20 IFM Diamond White 24V
Great White GW20 IFM Cobalt Blue 24V
Great White GW20 IFM Emerald Green 24V
