Bluefin Mako M12 IFM Interchangeable Flush Mount Underwater LED Light 12/24V

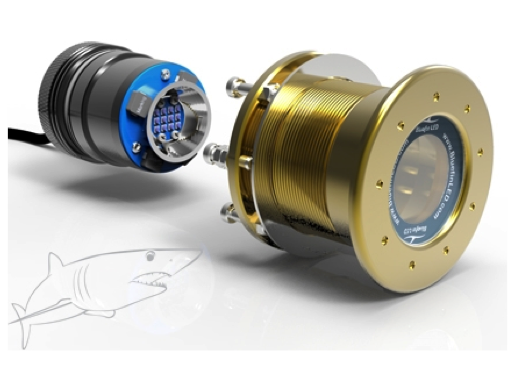

The Ultra compact design of the Mako M12 Interchangeable Flush Mount offers unrivalled performance producing 6100 Fixture Lumens with almost unlimited mounting options thanks to the low profile bezel and short body design.Thru Hull mounting provides a safe and secure fixing with the added benefit of a removable LED cartridge that can be serviced or upgraded from inside the hull eliminating the need to haul the boat.

Simple installation thanks to our inbuilt driver technology,just two wires to connect saving time and money in labour fees,reverse polarity protection with active thermal trip,Guard X protective coating applied to the lens provents marine growth build up.

Suitable for transom, side and under hull mounting on all types of hull


  • Suitable for transom, side and under hull mounting
  • Thru-Hull interchangeable requires 65mm/2.5" entry hole
  • Recommended for boats upto 20m/65ft
  • Max Lamp Lumens 9000 / Fixture Lumens 6100
  • Typical LED life expectancy 50,000 + hours
  • Voltage 12 or 24v, Power Draw 5.1A@12v / 2.6A@24v
  • For Mains voltage systems purchase our 110/240V PSU
  • Over voltage,current,reverse polarity,active thermal trip protection
  • Beam Angle: 60 Dia FWHM

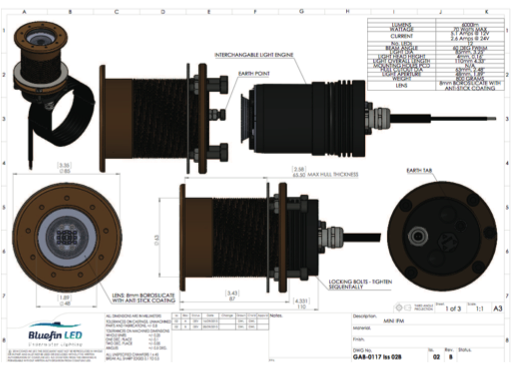

  • Hole Cut Out Diameter: 63mm
  • Light Aperture: 48mm
  • Weight: 800 grams
  • Fixture profile 4mm,0.16"
  • Fixture diameter 85mm,3.35"
  • Fixture Length 110mm,4.33"
  • Lens: optical grade 9mm Boroscilicate glass,60 degree beam angle
  • Body AB2 Bronze throughout,Aluminium removeable cartridge
  • Weight 1kg/2.2lbs
  • 2 years warranty
  • Delrin Isolation Sleeve must be used if fitting lights to Steel or Aluminium hulls


  • Mako M12 IFM 12v White
  • Mako M12 IFM 12v Blue
  • Mako M12 IFM 12v Green
  • Mako M12 IFM 24v White
  • Mako M12 IFM 24v Blue
  • Mako M12 IFM 24v Green
