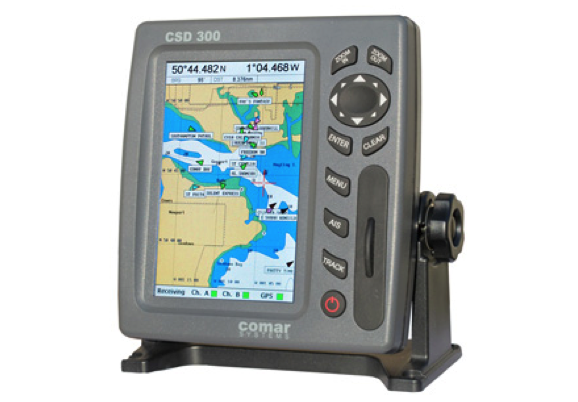

Comar CSD 300 AIS Display Only

The CSD-300 is a dedicated device designed for simple to use management, control and display of all AIS targets within VHF range. AIS data can be received from all AIS receivers, Class B or Class A transponders, and can be displayed either on a “radar” display, or overlaid on a worldwide background chart. For more detailed cartography, the CSD-300 has the facility to take a Jeppesen C-MAP card.

The vivid graphics and the simple menu structure on the 6.5 inch, high resolution display make the unit easy to use. The data is easy to access and the information easy to analyse enabling the user to quickly move from screen to screen and gain access to the information specifically required.

Key Features

  • Tracks the movement of up to 5 vessels with track history and optional live
    details on individual vessels.
  • Monitors position, speed and heading of vessels on a background chart or
    on detailed cartography (optional).
  • Allows variable parameters to be set for CPA and TCPA alarms.
  • Listing of all vessels with name, MMSI, range and bearing, with full details
    on each vessel, and instant GOTO function.
  • Ability to display different types of vessel by colour, and different types of
    transmission by icon.
  • Complete information from all AIS vessels
  • Tabular listings of vessels with variable sort
  • Filter targets by type of transmission
  • Zoom, pan brightness, contrast
Displays the following
  • Class A vessels
  • Class B vessels
  • Base Stations
  • Aids to Navigation
  • AIS Sarts
Specifications & Dimensions
  • Operating Voltage : 12 - 24V dc
  • Power Consumption : 1 Amp
  • Display : 6.5 inch (750 x 480 pixels)
  • Input1: NMEA 0183 AIS/GPS 38400 baud
  • Input 2: NMEA 0183 GPS 4800 baud
  • Operating Temperature: -15C to +55C
  • Dimensions Overall : Width 220mm, Height 215mm, Depth 95mm
  • Weight
