Dometic MCS T12 Marine Climate System, 12000 BTU/H, 3500W - Complete DIY Kit

With weather patterns changing with summers getting hotter, it is time to look at climate control for boats. What could be better than to go down below and have a controlled temperature climate. Well Dometic have come up with an affordable and easy to fit system, and whatever size boat you have they have a system that will do the job

Cool, heat and dehumidify with one neat, little and easy-to-fit unit. Allowing you to create the perfect climate on yachts and boats!

The improved Dometic MCS T now features the award winning DTU unit for fast, easy and versatile installation. With rotatable blower for custom installation, composite drain pan with quick fittings and superior vibration insulation for quiet operation the MCS T offers you true OEM quality in one kit. All components and mounting materials are included in the scope of delivery. Three available capacities, all using R-410A refrigerant, allows the systems to work effectively and supply air-conditioned comfort to cabins of different sizes or design.

With its efficient cooling, heating and dehumidifying settings, the Dometic MCS T6 ensures perfect temperatures on board yachts and boats regardless of weather conditions outside. Through an easy-to-use control panel, this ultra-compact unit creates the ideal onboard climate with six blower speeds and an additional automatic setting. Supplied with all fixtures and fittings, the MCS 6 is quick to install and means a home-from-home atmosphere can be enjoyed with the greatest of ease.

Key Features

  • Cooling capacity 12,000 BTU/h; heating capacity 3,500 W
  • Consumption (at 230 V): 1030 W/1270 W
  • Reliable comfort thanks to versatile functions: heat, cool and dehumidify
  • Designed for fast, easy retrofitting
  • Made from high quality corrosion-resistant materials
  • All installation components included
  • Ultra compact design for neat, unobtrusive fit
  • Easy to use control panel to ensure optimal temperature at the touch of button
  • Integrated filter easy to clean

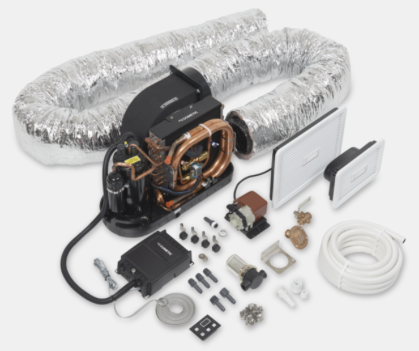

  • Scope of Delivery: A/C unit, electrical box and control panel, seawater pump, seawater strainer, air ducts, supply-air and return-air grilles,seawater hose, through-hull fittings, fixing material, fittings, valves
  • Product DescriptionMarine climate system, 12000 BTU/h, 3500W
  • Dimensions product depth 315 mm
  • Dimensions product height 318 mm
  • Dimensions product width 519 mm
  • Net weight: 23.60 kg
  • Input voltage (AC) 230 V
  • Input frequency 50 Hz
  • Starting current - max 22.00 A
  • Required AC circuit protection min 8.00 A
  • Required AC circuit protection max 10.00 A
  • Refrigerant, type R410A - Contains fluorinated greenhouse gases
  • GWP 2088
  • Refrigerant amount 326.02 g
  • CO2 equivalent 0,681 t
  • Cooling capacity (ISO 5151) 1200 W
  • Power consumption - Cooling mode (ISO 5151) 1030 W
  • Current consumption min cooling 4.30 A
  • Current consumption min heating 5.30 A
  • Current consumption max cooling 4.30 A
  • Current consumption max heating 5.30 A
  • Number of Blower Speeds 6/Automatic
  • Temperature Range 18°C to 30°C
  • Thermostat control Electronic Thermostat
