Know What’s Out There
Motionscope Technology - Detect and highlight moving targets in different colours to help avoid collisions, find flocks of birds and track weather from 20 feet to 96 nautical miles.
Automatic Acquisition - New mini-automatic radar plotting aid (MARPA) automatic acquisition allows for triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones or MotionScope.
Clear The Way - Scan-to-scan averaging aids in reduction of sea clutter and interference, to give a clear view of what’s out there.
Auto Bird Gain - Where there are birds on the water’s surface, there are fish below it. Auto Bird Gain helps locate flocks of birds at the water’s surface.
Pulse Compression - This feature provides high-resolution imaging while maximising energy to enhance target detection and identification.
Echo Trails - True Echo Trails feature displays a fading trail to help quickly and easily identify moving targets while accounting for the movement of the boat.
Radar Overlay - Overlay radar on the chart screen as single display or split screen with independent range settings.
Dynamic Sea Filter - Dynamic Sea Filter automatically adjusts gain to calm, medium and rough sea conditions.
Guard Zone - Set the safety zone and receive an alarm when an object enters the zone.
In The Box

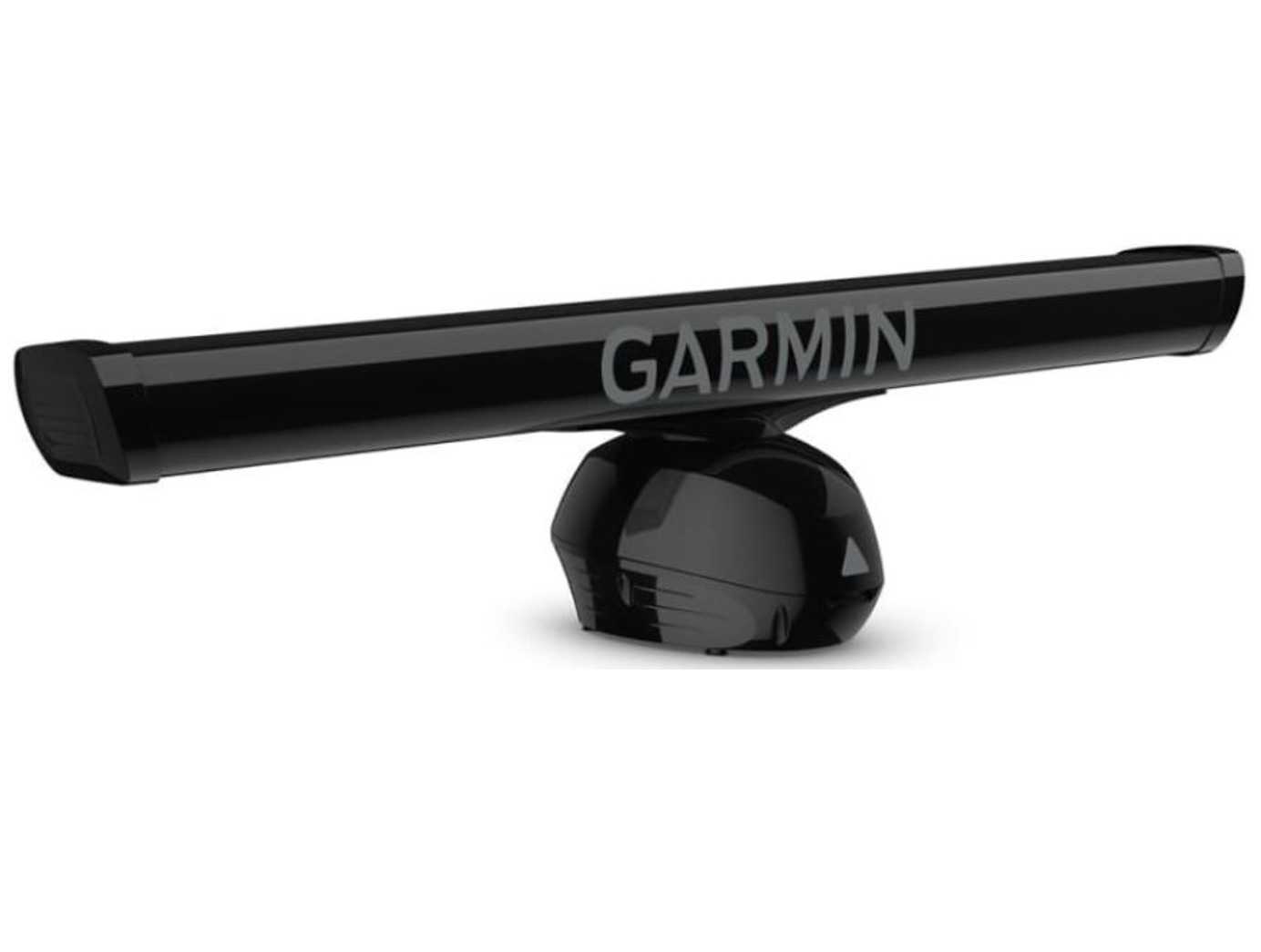

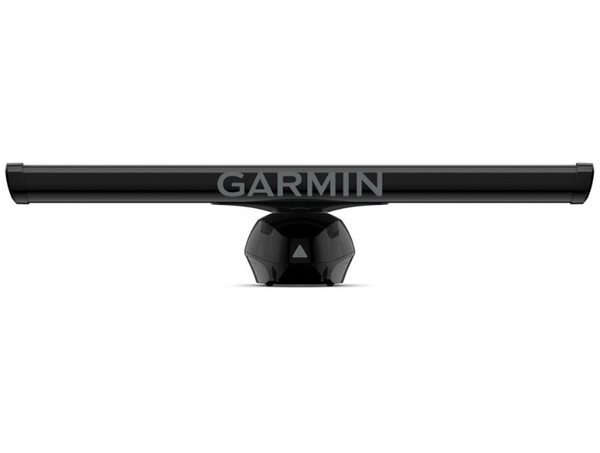

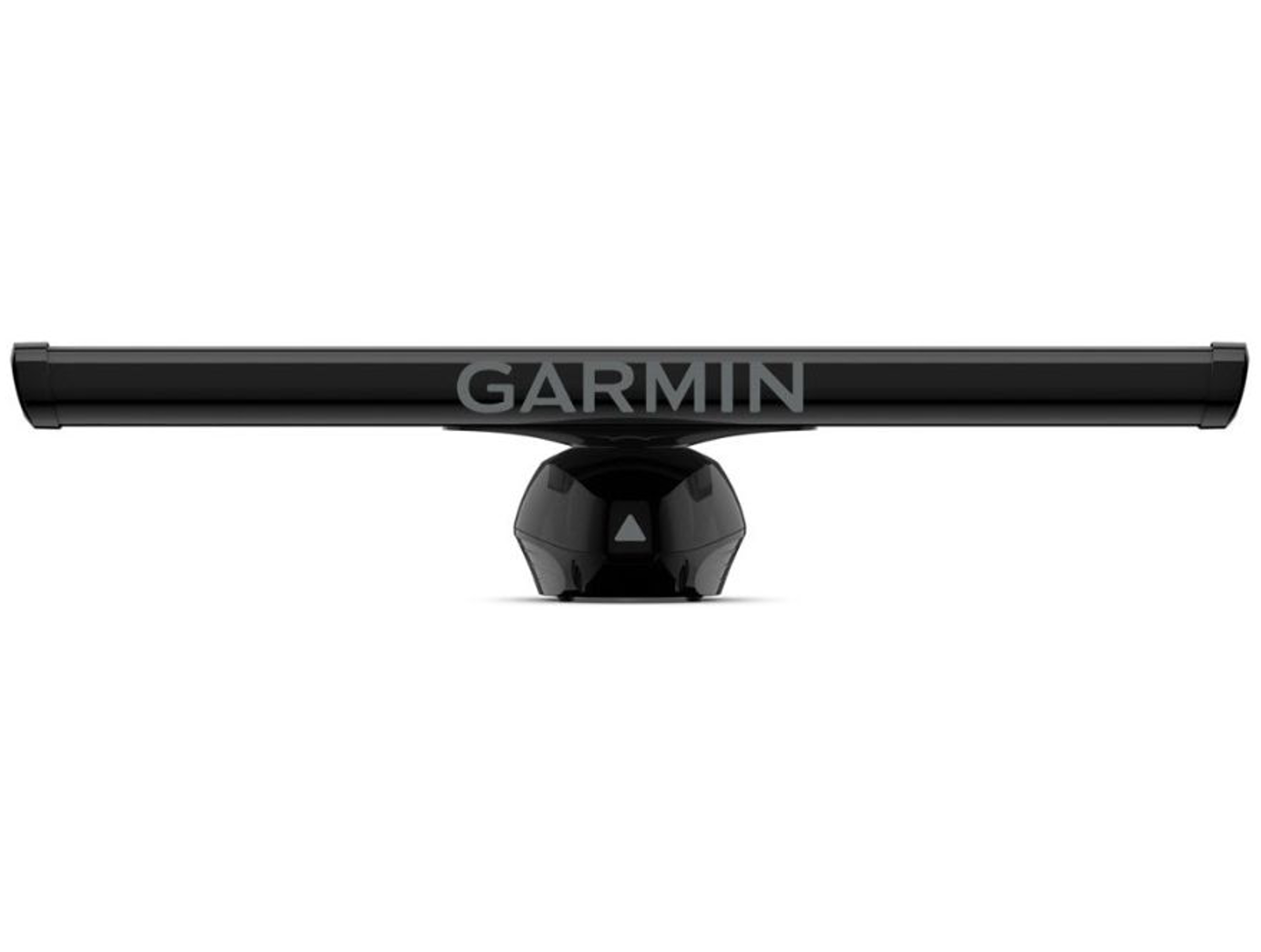

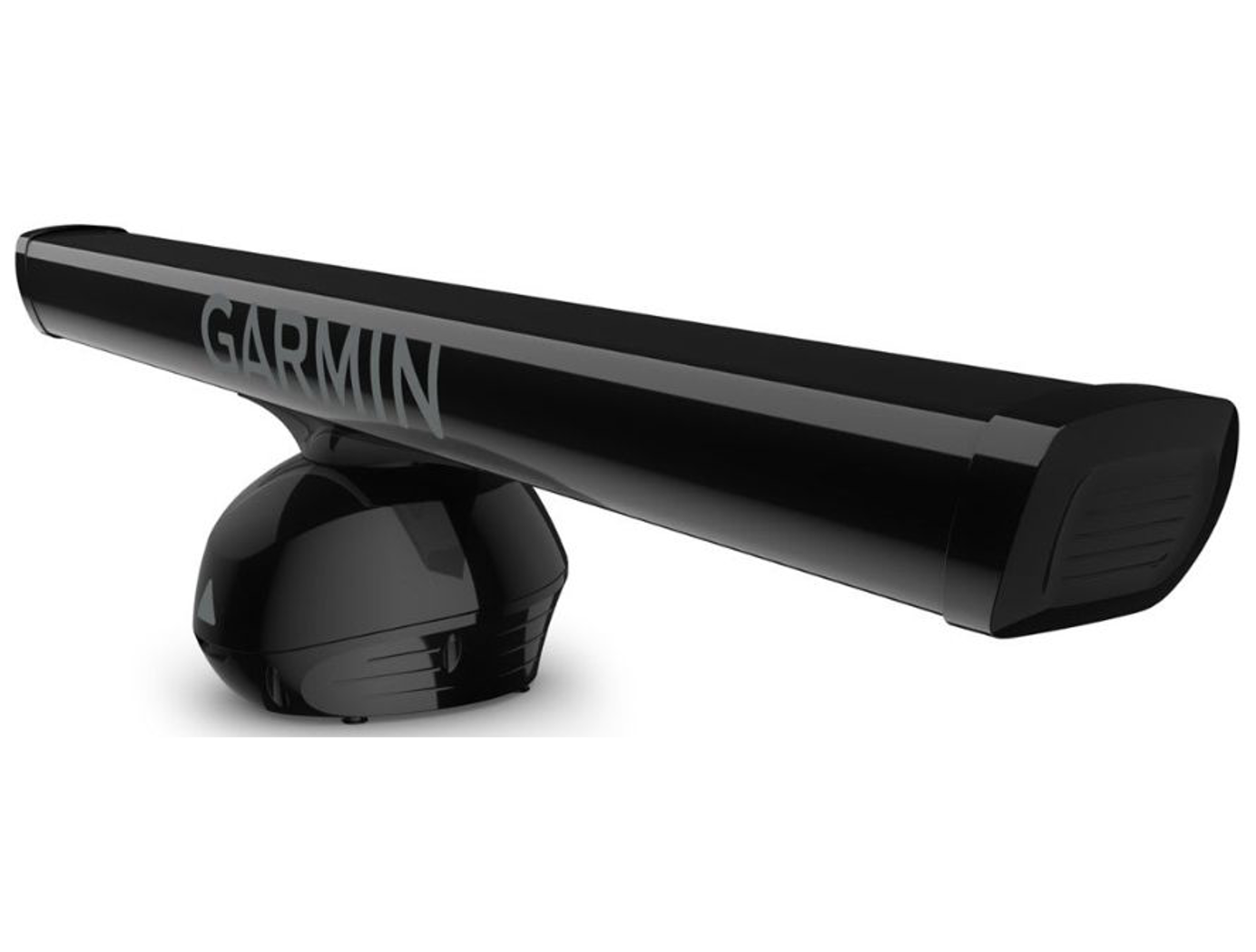

- GMR Fantom 256 antenna and pedestal
- Mounting hardware kit and template
- Right angle power cable (15 metres)
- Right angle network cable (15 metres)
- Voltage Converter
- Documentation
Specification
| General | |
|---|---|
| Dimensions | Pedestal: 42.1 x 36.4 x 27.1cm Full Assembly: 40.3cm Height x 190.9cm diameter |
| Weight | Array: 7.3Kg Pedestal: 15.7Kg |
| Waterproof Rating | IPX6 |
| Max Wind Load | 80kt |
| Antenna Length | 182.9cm |
| Rotation Speed (RPM) | 24 & 48 rpm |
| Beam Width | 1.25° horizontal 23° vertical |
| Maximum Range | 96nm |
| Minimum Range | 6 metres |
| Radar Features | |
|---|---|
| Dual Range | ✓ |
| Overlay | ✓ |
| Dual Radar Support | ✓ |
| Auto Bird Gain | ✓ |
| Auto Gain | Dynamic |
| MARPA Target Tracking | Yes (Requires heading sensor) |
| Echo Trails | ✓ |
| Motionscope | ✓ |
| Programmable Antenna Parking | ✓ |
| Target Size | ✓ |
| Scan Averaging | ✓ |
| Electrical Features | |
|---|---|
| Power Input | 10 - 32 VDC |
| Transmit Power | 250W |
PS Please contact us before ordering due to ite weight and size. We can then quote on shipping
