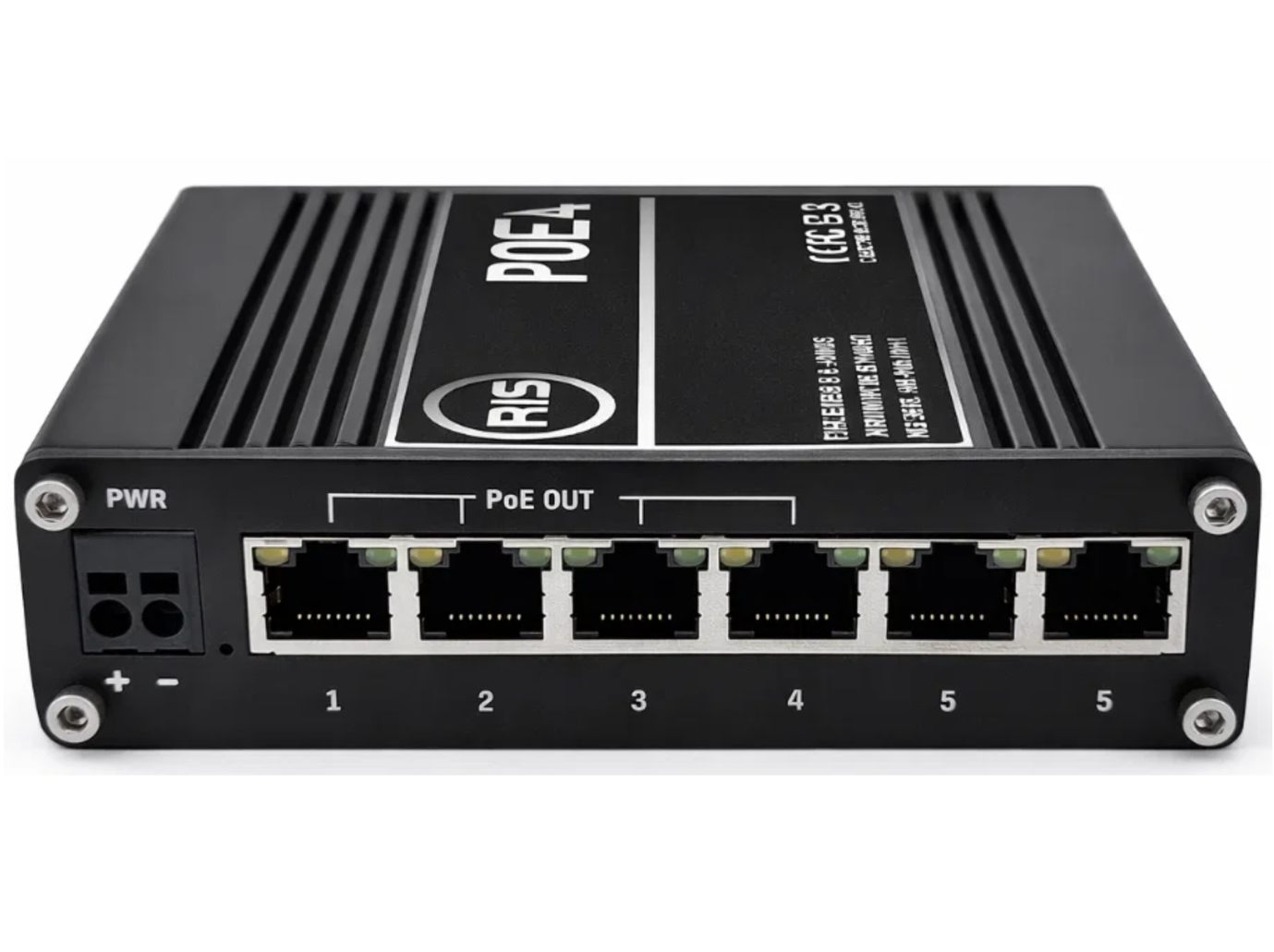

IRIS Four Channel + Uplink PoE Switch-PoE04v2

37548 Iris Four Channel PoE Switch +Uplink DC Power for up to four devices, including cameras across your ethernet network

The new PoE4v2 from Iris Innovations is a four channel plus uplink Power over Ethernet switch which operates over a wide DC input volt- age range of 9~30VDC making it perfect for off-grid environments where input voltage may not be stable such as boats and vehicles.

The PoE4v2 outputs 48VDC to your PoE devices with total power 60W in total, max 30W per port. The unit features a passive uplink port to enable connection to other network switch equipment, routers or modems.

Certification

The IRIS-PoE1marine certified: • IEEE802.3af / 3at (PoE+)

Designed for battery powered applications such as boats & vehicles.

Features

• Four PoE output ports plus one dedicated uplink/network input port
• Supplies power and data to up to four IEEE 802.3af / 802.3at compliant devices
• Wide DC input voltage range from 9 V to 30 V, suitable for 12 V and 24 V systems
• Total power budget of up to 60 W with flexible power allocation across ports
• Supports up to 30 W per port depending on load distribution
• Plug-and-play operation with no configuration required
• Compact aluminium enclosure with mounting points for secure installation
• Designed for marine, vehicle, and off-grid environments
• Supports standard Ethernet cable runs up to 100 m
