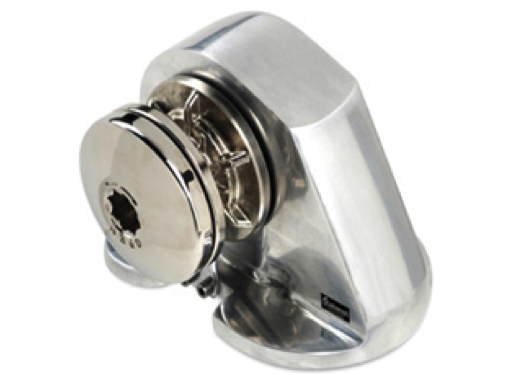

Ital Obi 500 Windlass without Drum 500W 12V 6/8mm Chain

Windlass made in anodized aluminium alloy, 12 volt 500 watt with chromed gypsy cover. Supplied with a rope-chain gypsy and equipped with a spring loaded rope pawl that guides/holds the rope in the gypsy, also has manual chain freefall release, supplied with a 6/8 mm gypsy the windlass is also supplied with a built-in chain counter sensor and control box.

Specification:

  • Electric Motor: 500 Watt
  • Motor Supply Voltage: 12 Volt
  • Chain: 6/8mm
  • Maximum Pull: 550 KG
  • Maximum Chain Speed: 23 Mt min
  • Current Absorption: 60 A

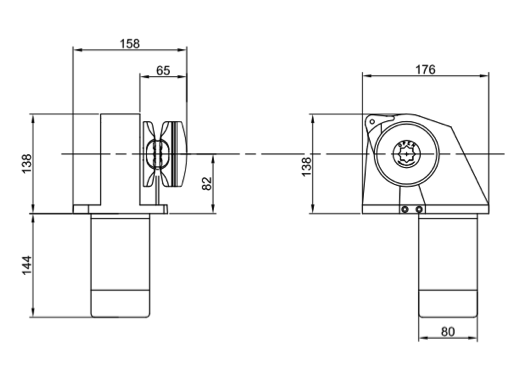

  • Dimensions: See attached image
  • Weight: 8.2 Kg

Models

  • Obi 500 without Drum 12V 6mm Chain
  • Obi 500 without Drum 12V 8mm Chain
