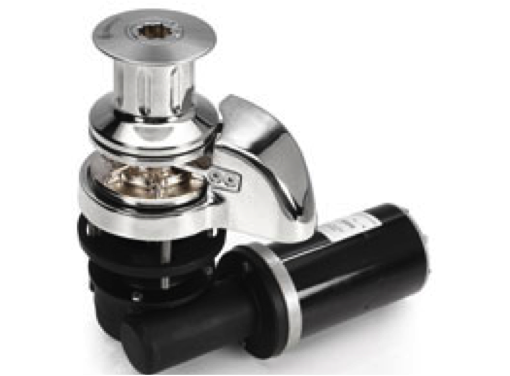

Italwinch Smart 500 Windlass with Drum 700W 12V 7/8mm Rope/Chain

Stainless steel 316 vertical windlass with rope drum. Supplied with a 500 watt motor suitable for boats up to 12/13 metres. Fitted with 8mm rope-chain gypsy and is equipped with a spring loaded rope pawl which guides/holds the rope in the gypsy, the windlass is also supplied with a built-in chain counter sensor.


  • Electric Motor: 500 Watt
  • Motor Supply Voltage: 12V
  • Chain: 7 or 8mm
  • Max Lift Load: 270 Kg
  • Working Load: 90 Kg
  • Maximum Chain Speed: 23 mt/min
  • Current: 60A

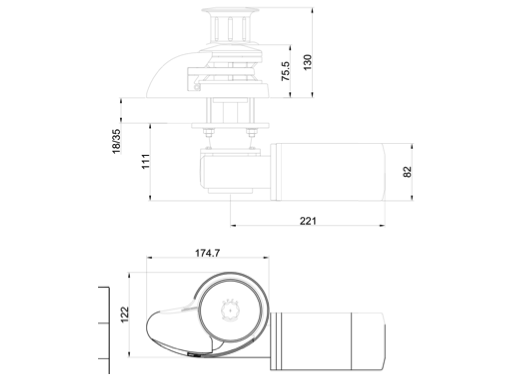

  • Dimensions: See attached image
  • Weight With Drum: 10.1 Kg


  • Smart 700 with Drum 7mm
  • Smart 700 with Drum 8mm
