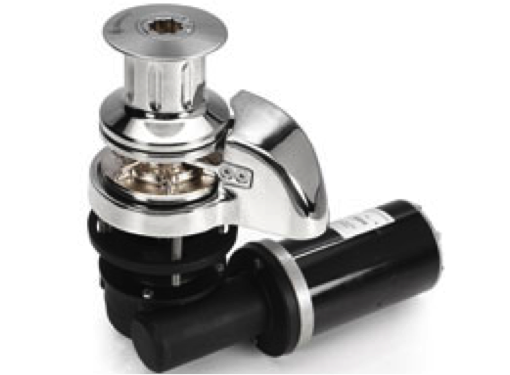

Ital Smart Plus 1700 Windlass with Drum 24V 8mm Rope/Chain 138A

Stainless steel 316 vertical windlass with rope drum. Supplied with a 1700 watt motor suitable for boats up to 13/16 metres. Fitted with 8mm rope-chain gypsy and is equipped with a spring loaded rope pawl which guides/holds the rope in the gypsy, the windlass is also supplied with a built-in chain counter sensor.


  • Electric Motor: 1700 Watt
  • Motor Supply Voltage: 12V
  • Chain: 8mm
  • Max Lift Load: 720 Kg
  • Working Load: 240 Kg
  • Maximum Chain Speed: 25 mt/min
  • Current: 138A
  • Weight With Drum: 25.3Kg

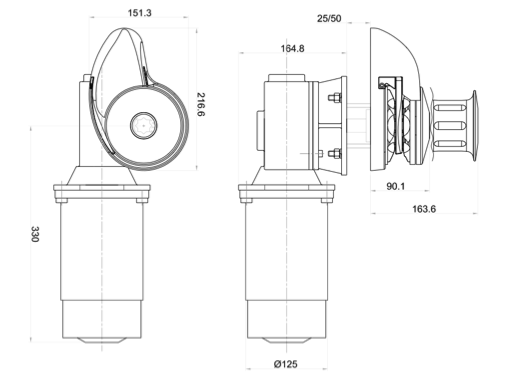

  • Dimensions: See attached image
