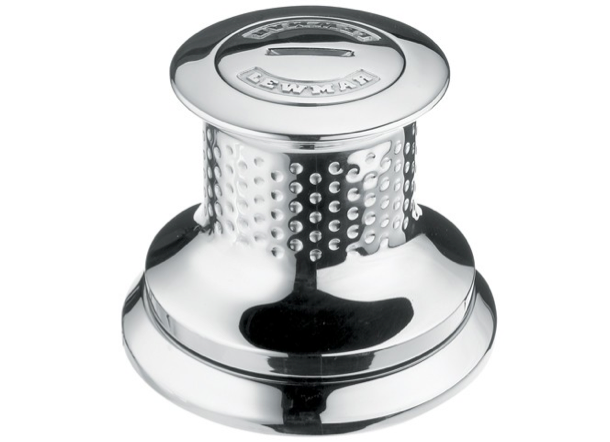

Lewmar Capstan C3 - Rope - 12 Mets Min 12 or 24V

Lewmar’s C Series Capstans provide almost effortless rope control at the press of a footswitch. The WARP™ (Wear and Abrasion Resistant Pattern) finished drum optimizes performance and reduces rope wear by up to 30%. Stainless steel components combine strength, anti-corrosion and durability with a beautiful, polished finish. Installation of the C3 is quick and simple, as it is fastened entirely from above deck.

Key Features

• Beautifully crafted stainless steel components ensure enduring strength and performance
• WARP™ finish drum - unique Wear and Abrasion Resistant Pattern reduces rope wear by 30%
• C3 offers quick, easy ondeck installation requiring only one person

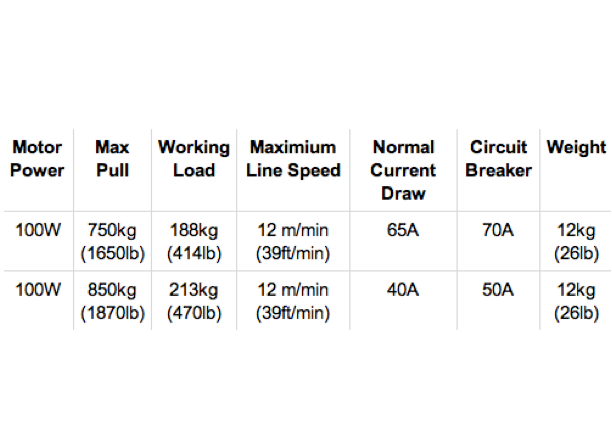

Specification

• Motor Power 12/24V: 1000W
• Max Pull: 12V 750kg, 1650lb, 24V 850kg, 1870lb
• Working Load: 12V 188kg, 414lb, 24V 213kg, 470lb
• Maximum Line Speed Met/Feet Per Min: 12m, 39ft
• Nominal Current Draw: 12V 65A, 24V 40A
• Circuit Breaker: 12V 70A, 24V 50A
• Weight: 12kg, 26lb

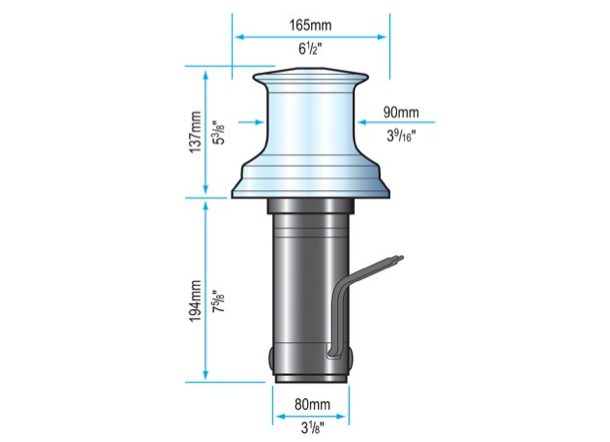

Dimensions

• See attached images

Models

• Lewmar Capstan C3 12V
• Lewmar Capstan C3 24V
