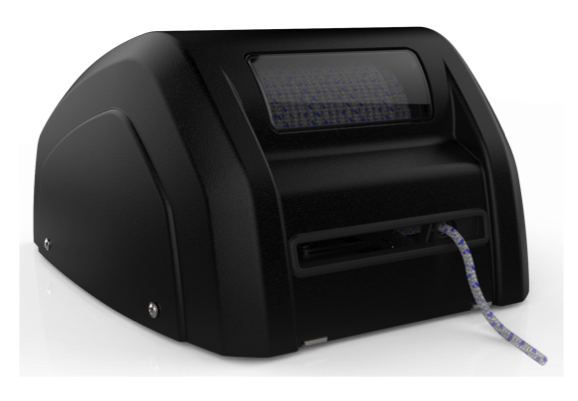

Lewmar Captive Reel Windlass CRW400

Lewmar’s new CRW400 windlass NEW represents a step-change in
engineering and design for small boat
windlasses. Built around a stainless steel chassis with composite bearing technology and a robust UV-stabilised ABS shell, the CRW400 is salt-water resistant and suitable for boats up to 30ft.

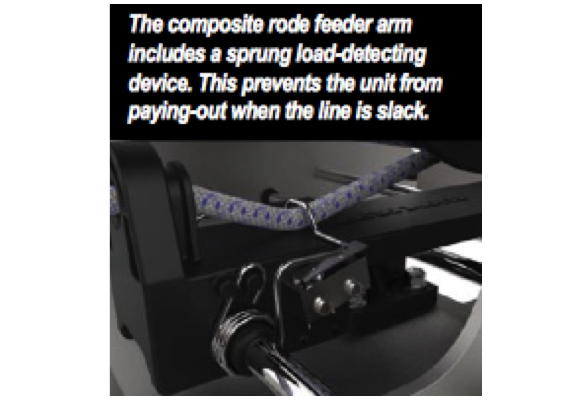

Lewmar’s unique “level wind” feature ensures that the rode is always stowed neatly on the drum, offering tangle free anchoring and maximum stowage recapacity every time. In addition, the windlass features load detection, allowing  effective “drift” fishing to be performed. An auto-stop is also included, ensuring a safe number of wraps remain on the drum when anchoring in deep water.winding drum.

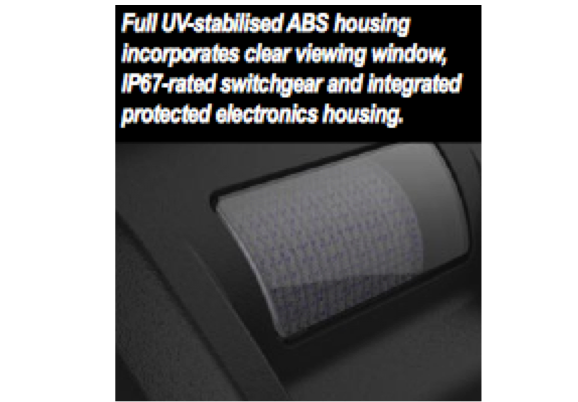

An integrated switch is fitted to the rear of the housing, or optional  remote controls can be fitted. A clear window means that correct functioning of the windlass can be observed, with no risk of trapping fingers or clothing in the winding drum.

Key Features

  • Rode stowage without the need for a locker
  • Self locking – no need for cleat or chain stopper
  • Fully remote operation - can be deployed and retrieved from the helm
  • High quality materials and construction

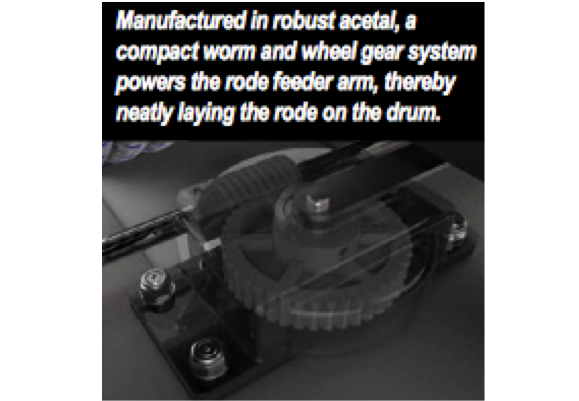

  • Level-wind technology prevent spooled line bunching
  • Pre-fitted with 35m (115ft) of 6mm (1⁄4'') anchor rode
  • All stainless steel 316 chassis / ABS UV stabilised case

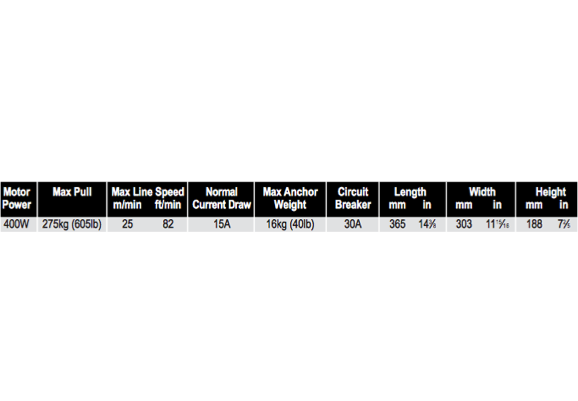

Dimensions & Techy Bits

  • Length : 365mm (14 3/8")
  • Width : 303mm (11 15/16")
  • Height : 188mm (7 2/5")
  • Style: Horizontal
  • Boat Length: 18'-24'
  • Rode Type: Rope
  • Rode Size: 115' of 1/4" anchor rope
  • Speed Up/Min.: 82' (no load)
  • Speed Down/Min.: 82'
  • Maximum Pull: 600lb.
  • Draw: 15A @ 12V
  • Case Material: Composite and stainless steel
  • Warranty: Two years
