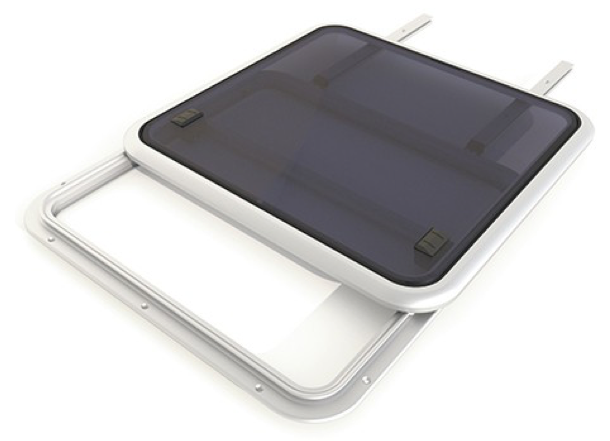

Lewmar Pilot Hatch - 4 Sizes - NEW - Sliding Hatch

Another great product from Lewmar, especially for those where space is a premium. Elegantly styled

The Pilot Hatch is designed for use on the wheelhouse or cockpit canopy of a power craft, and the styling complements the Low Profile and Medium Profile Hatch Ranges.

Key Features

  • Opens up enclosed steering positions
  • Sliding technology from Lewmar’s hardware track systems, ensuring minimum friction
  • The Pilot Hatch uses Lewmar’s unique seal system for improved sealing and easy servicing
  • Operated with a single handlebar that rotates to seal down the hatch
  • Can be secured with a 5cm opening when full ventilation is not required
  • Acrylic colour: smoke grey
  • Trim Kits are not available for size 78, normal Trim Kit fits size 40, 60 and 70.
  • Hatches should be fitted to a flat surface with a maximum tolerance of ± 1mm.
  • The pilot hatch cannot be operated from the outside.
  • The Pilot Hatch is only for use on wheel houses and cockpit canopies. It is not suitable for use on normal decks and coachroof applications. Fastening size for lower frame and sliding track use 5mm CSK screws No. 10 UNC 2BA
  • Powered Option Available To Order

  • Compact mechanism utilises spiral cables for smooth operation
  • Load sensing closure provides protection from entrapment
  • Can be retrofitted to same aperture as the standard pilot hatch
  • Can be held in any position to allow varying degrees of ventilation
  • Available in a range of acrylic colours and frame finishes
  • Custom sizes available on request

Effortless operation is achieved through a range of switching options. The full mechanism and railings are contained within the aperture of the hatch and the above-deck profile is only 35mm, ensuring the visual impact is minimal

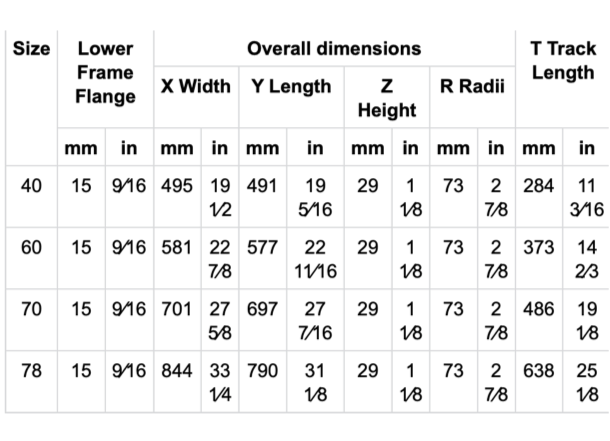

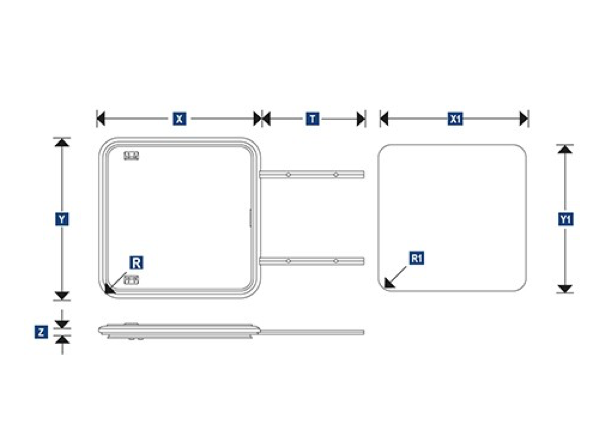

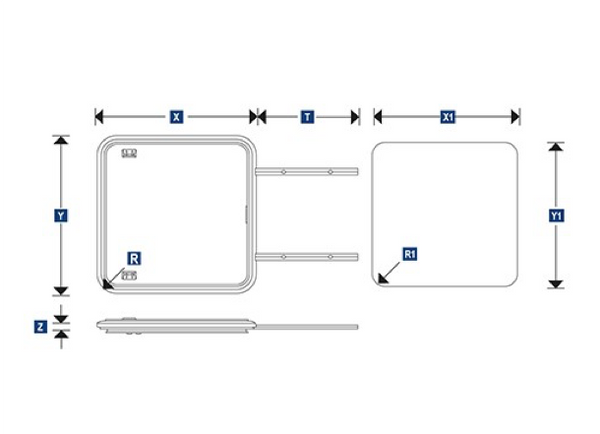

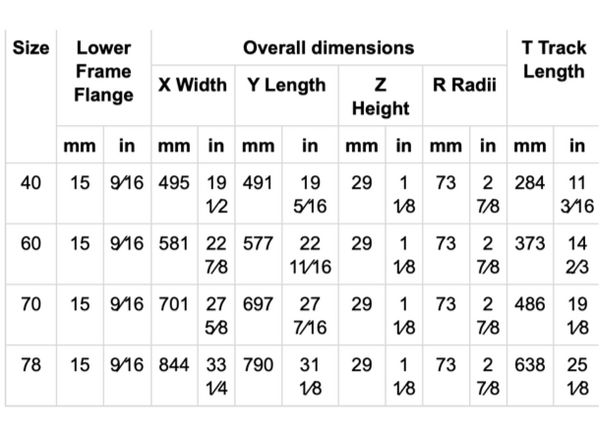

Specification & Dimensions

  • See attached image

Models

  • Lewmar Pilot Hatch Size 40
  • Lewmar Pilot Hatch Size 60
  • Lewmar Pilot Hatch Size 70
  • Lewmar Pilot Hatch Size 78

Built to order
