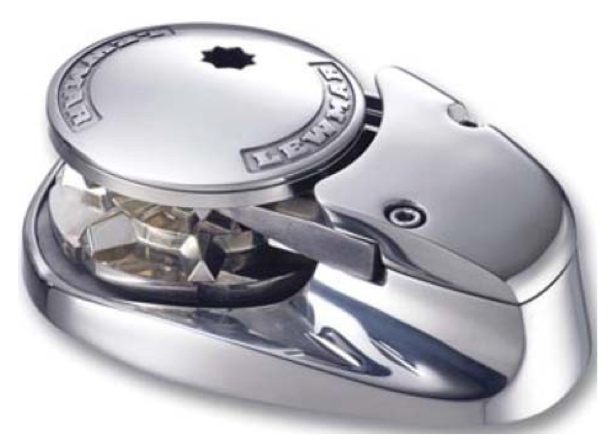

Lewmar V700 Windlass - 6/7mm DIN766, 1⁄4" G4 or BBB Chain - Windlass Only or Kit

With 100% 316 stainless steel housing and a sleek flush-mount design that hides the motor down below, the V700 is one of the most attractive and durable windlasses on the market. It works at the push of a button and has two built-in features that make it unique – motor protection and anchor lock.

Key Features

  • Fits calibrated chains: 6mm DIN766, 1⁄4" G4 or BBB
  • 7mm DIN766
  • Dual Chain Gypsy
  • Minimal parts for enhanced reliability
  • 100% 316 stainless steel deck unit
  • IP67 Rated (Waterproof to 1 meter)
  • Fall Safe anchor lock
  • Fast line speed
  • Manual recovery option
  • Impact-resistant motor cover
  • 5-year warranty
  • For boats up to 10.5m (35 ft)
  • Magnet & sensor kit available on request

Cable Sizes for V700 (12V)0-15mtr/0-50ft: 10mm2/8AWG

Switch Wiring: 1.5mm2/16AWG

Current rating for switch wire: 5A


  • Max Chain Size : 6/7mm/ 1/4"
  • Motor Supply Voltage: 12V
  • Motor Power: 320W
  • Max Pull: 3204kg,700lb
  • Max Line Speed:25 meters min, 82ft min
  • Working Load: 79kg, 175lb
  • Normal Current Draw: 46A
  • Typical Line Speed/Min: 15m, 50ft
  • Circuit Breaker: 35A
  • Weight: 6.5kg, 14lb

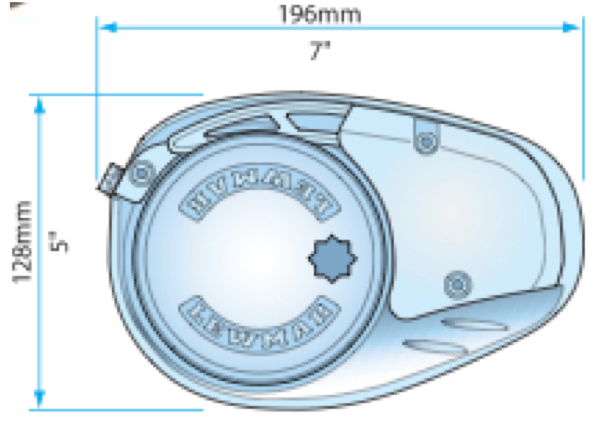

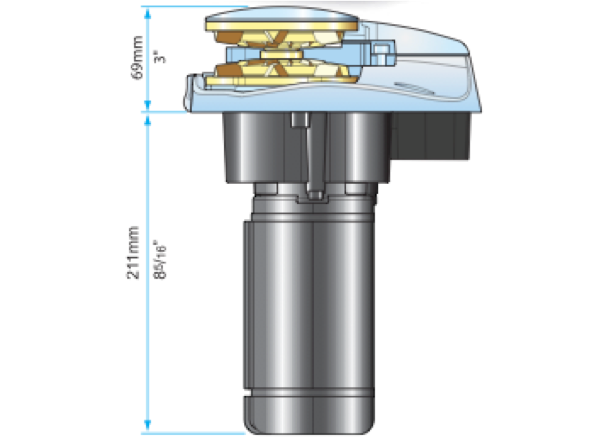

  • See attached images
