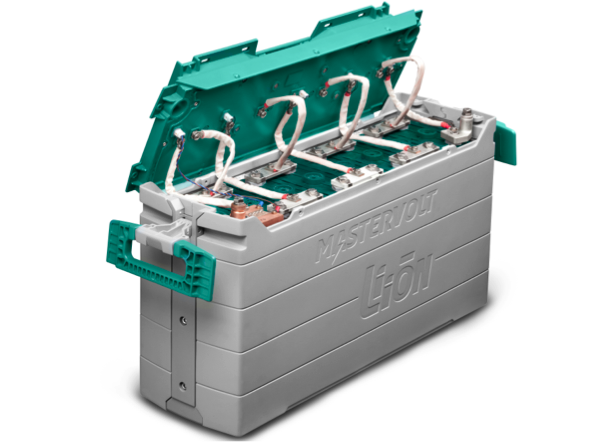

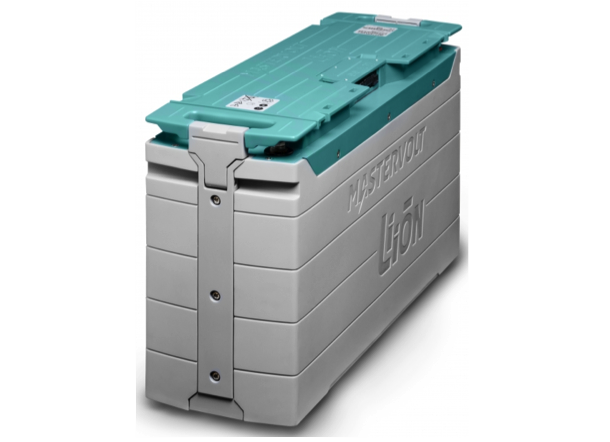

Mastervolt Lithium ION Ultra Battery 12/5000 360 Ah

The MLI Ultra series is designed to be able to enjoy all the best properties of Lithium Ion technology in the harshest conditions (high charge/discharge currents, wet environment, mechanical shock or vibrations). To do this the MLI Ultra batteries bring two things on top of a selection of the finest Lithium-iron phosphate cells: a sturdy, waterproof housing and the best Battery Management System (BMS). The BMS includes active cell balancing for optimal use of each individual cell, even during fast charge and discharge, integrated battery monitoring to always have the best information on the state of your battery. Last but not least, it has MasterBus communication to the Mastervolt battery charger to ensure the best possible recharging and lifetime of the battery.

Key Features

  • Top performance, heavy duty Lithium Ion batteries.
  • Ideal for running heavy loads for long periods and short charge times.
  • Saves up to 70 % in space and weight.
  • Three times the lifespan of traditional batteries (2000 cycles).
  • High cycle efficiency.
  • Fast charging up to half an hour.
  • High discharge rate up to 3C.
  • MasterBus communication with every Mastervolt battery charger.
  • Integrated Battery Management System (BMS) with active balancing.
  • Integrated battery monitoring (Ah consumed, state of charge).
  • Series balancing technology optimizes string connection.
  • Waterproof electronics cabinet.
  • Safest Lithium Ion chemistry available (LiFePO4).
  • Tested and certified according to UN38.3.
  • Two year warranty

Techy Bits & Dimensions

  • Nominal Battery Voltage : 13.2v
  • Nominal Battery Capacity : 360 Ah
  • Nominal Battery Energy Capacity : 5000 Wh
  • Max Charge Current : 500 A (1.4 C)
  • Max Continuous Discharge Current : 500 A (1.4 C)
  • Peak Discharge Current : 1800 A (5 C) for 10s
  • Cycle Life : -2000 at 80 % DoD
  • Battery Monitoring : Integrated
  • MasterBus Communication : Yes
  • Battery Terminals : M8
  • Mounting Position : Upright or Either Long Side
  • Max Outer Dimensions  (incl terminals/grip handles) Length 622mm (24.5"), Width 197mm (7.8"), Height 355mm (14")
  • Weight 58kg (127.9lb)
  • Battery Chemistry : Lithium Iron Phosphate
  • Protection Degree : IP65 (electronics cabinet)
  • Parallel Connection : Yes, Unlimited
  • Series Connection : Yes up to 10 batteries (series balancing up to 2 batteries)
  • Protections : Over Voltage under Voltage , Over Temperature
  • Safety Relay : To be added mandatorily
  • Safety Relay Controls : Integrated
