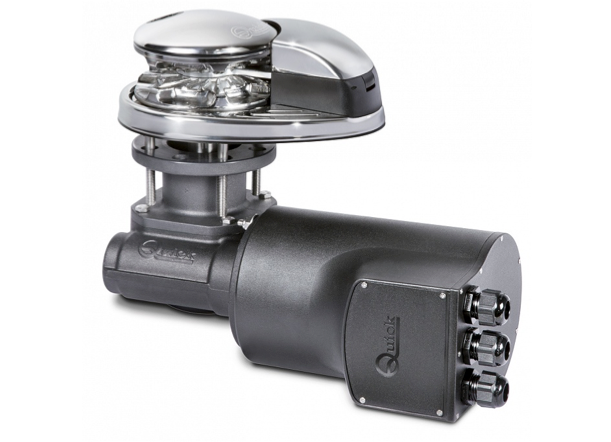

Stylish and practical the Quick Range of Windlasses suit a vast range of boats. Quality materials and construction mean a long using life. My own windlass on my Jeanneau is now 10 years old and it hasn't missed a beat as they say.
Base in stainless steel AISI 316 and anodized aluminium in hard oxide. Without drum. Integrated sensor and magnet for chain counter.Manual Free-Fall system.Inspection cover. IP66 Watertight motor. Anodized aluminium gearbox.
Suitable for boats upto 10-13m/33-43ft
Key Features
- Vertical windlasses
- Stainless steel Aisi 316 base
- 8mm Chain Calibrated
- 12mm Rope
- Rope and chain on a single gypsy
- Integrated sensor and magnet for
chain counter
- Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- IP67 Motor watertight (700 - 1000 W)
- IP66 Motor watertight (300 - 500 W)
- Anodized aluminium gearbox
Specification
- Motor Power: 1000w
- Motor Supply Voltage: 12V
- Maximum Pull: 930 Kg / 2050 lb
- Maximum Working Load: 420 Kg / 926 ib
- Working Load: 140 kg / 309 lb
- Current Absorption @ Working Load: 130 A
- Maximum Chain Speed: 31,2 m/min, 102.4 ft/min
- Maximum Chain Speed @ Working Load: 16,5 m/min, 54,1 ft/min
- Weight: 16,7 Kg / 36.8 lb

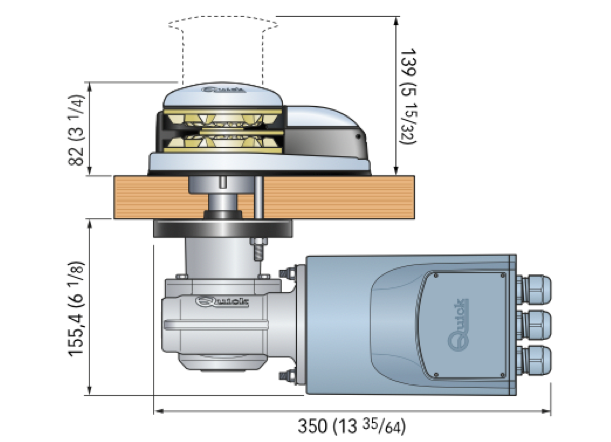

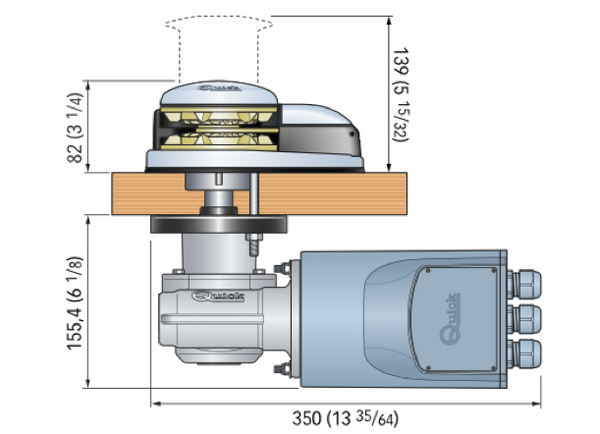

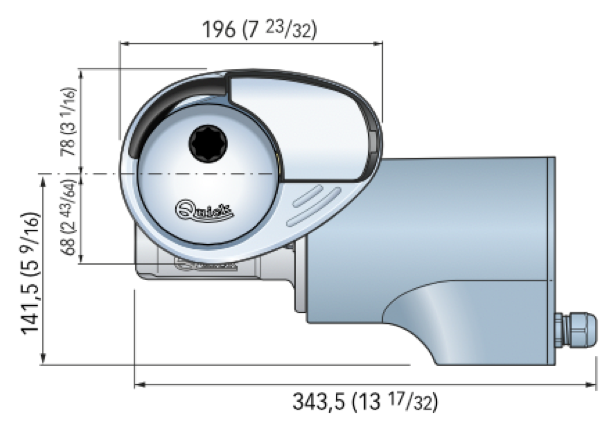

Dimensions
Whats in the Box
- Windlass
- Contactor Box
- Manual Lever
- Seal Gasket
- Drill Template
