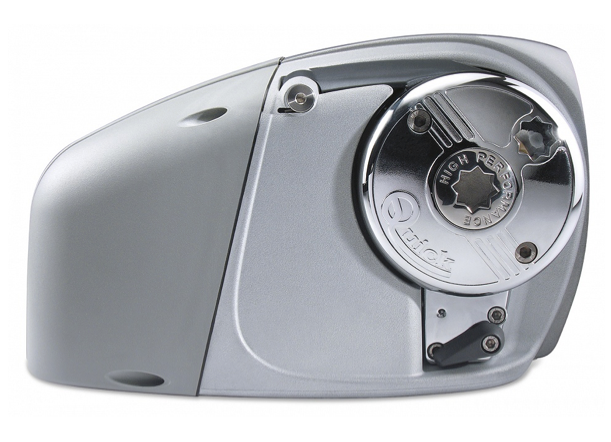

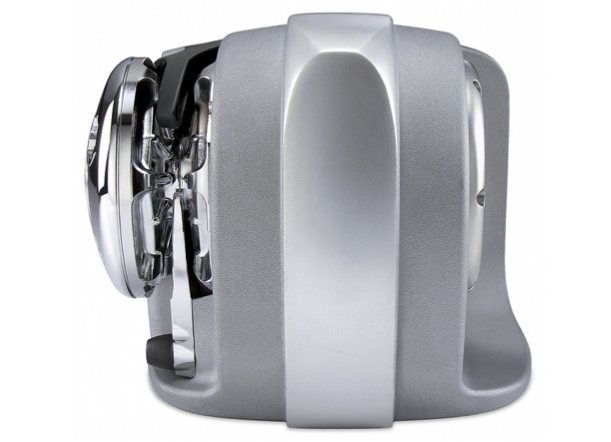

Quick Hector Windlass 700W 12v - 8mm Chain

Stylish and practical the Quick Range of Windlasses suit a vast range of boats. Quality materials and construction mean a long using life. My own windlass on my Jeanneau is now 10 years old and it hasn't missed a beat as they say.

Base in stainless steel AISI 316 and anodized aluminium in hard oxide. Without drum. Integrated sensor and magnet for chain counter.Manual Free-Fall system.Inspection cover. IP66 Watertight motor.  Anodized aluminium gearbox.

Suitable for boats up to 7-10m/23-33ft

Key Features

  • Horizontal on-deck windlasses
  • Base in anodized aluminium in hard oxide
  • Jacket in composite material or in alluminium anodized in hard oxide>
  • With and without drum
  • Rope and chain on a single gypsy
  • Integrated sensor and magnet for chain counter
  • Supplied with pressure lever
  • Integrated solenoids unit
  • Emergency manual lift system
  • Manual Free-Fall system
  • IP66 watertight motor
  • Gypsy: 8mm/5/16"
  • Rope: 12mm
  • Motor Power: 700w
  • Motor Supply Voltage: 12V
  • Maximum Pull: 1100 Kg / 2425 lb
  • Maximum Working Load: 300 Kg / 661.4 lb
  • Working Load: 100 kg / 220.5 lb
  • Current Absorption @ Working Load: 90 A
  • Maximum Chain Speed: 27.4 m/min, 89.9 ft/min
  • Maximum Chain Speed @ Working Load: 14.0 m/min, 45.9 ft/min
  • Weight: 22.6 Kg / 45.9 lb

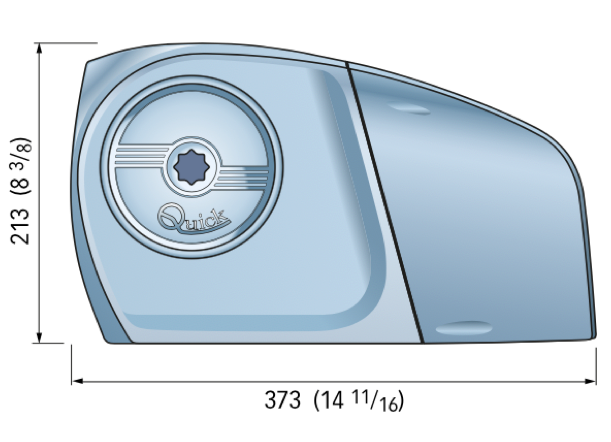

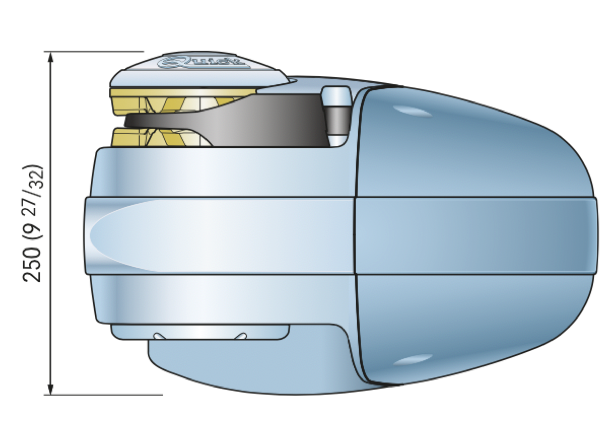

  • See attached images

Whats in the Box

  • Windlass
  • Contactor Box
  • Manual Lever
  • Seal Gasket
  • Drill Template
