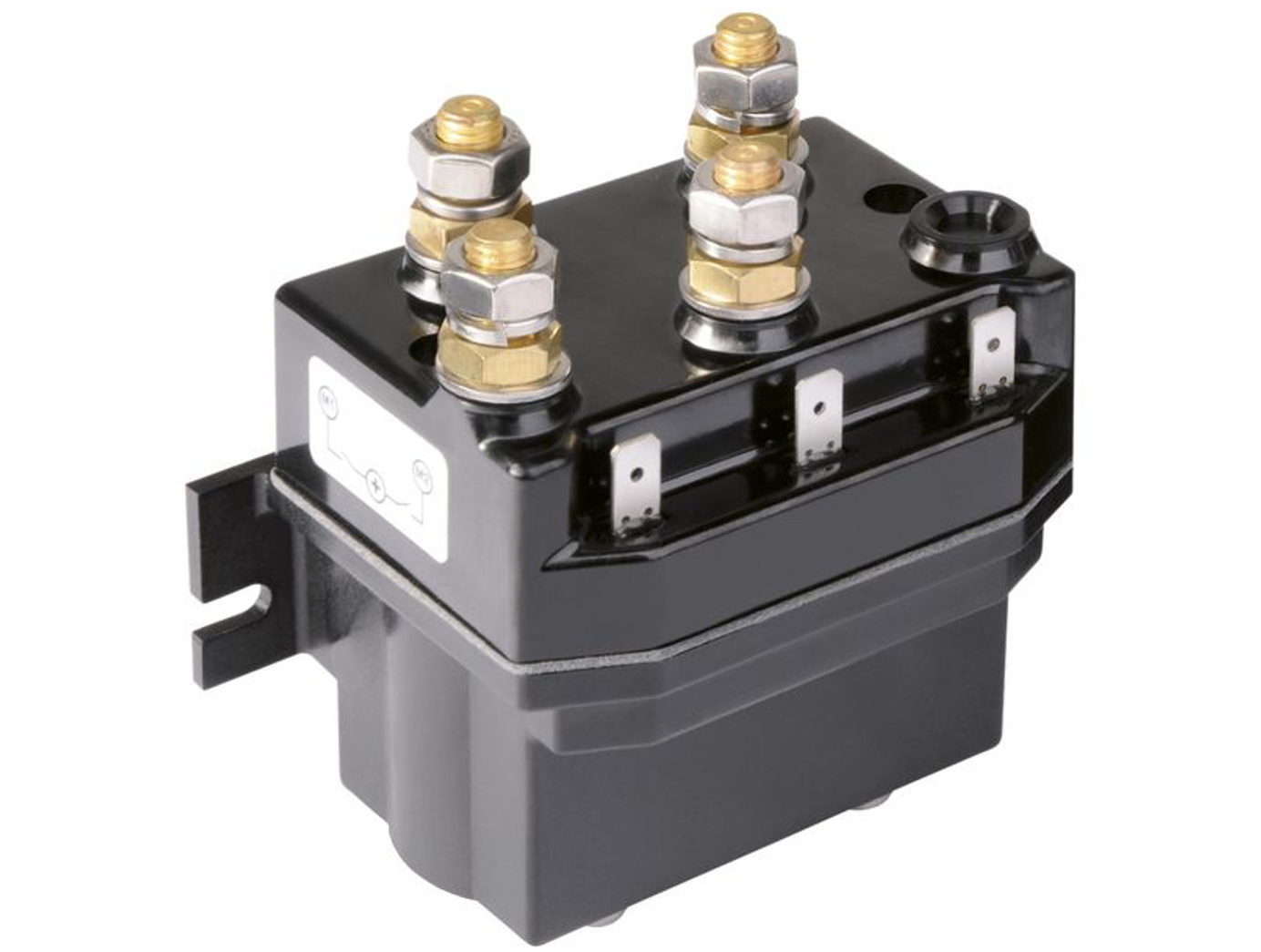

Quick T6415-24 Reversing Contactor/Solenoid (24V / IP66)

£125.00 £145.00

The Quick reversing contactor unit T6415-24 is suitable to operate 24V windlass and capstan electric motors. The reversing contactor is extremely easy to install due to it's external connections. Quick reversing contactor features IP66 protection (excluding the terminals).

Specification

Brand	Quick
Voltage Description	24V DC
Wattage	3500W
Amps Description	Interruption Capacity: 800A at 48V DC, Working Intermittent Current (50% of work cycle): 150A
Fuse	Recommended: 1.6A Fast
Height Description	Excluding Terminals: 83.5mm (3-9/32"), Terminals: 23.1mm (29/32"), Bracket: 29mm (1-9/64")
Width	100.3mm (3-61/64"), Excluding Mounting Bracket 82.5mm (3-1/4")
Depth	66.5mm (2-5/8"), Excluding Mounting Bracket: 61.3mm (2-13/32")
Dimensions	Distance Between Mounting Hole Centres: 86mm (3-3/8"
