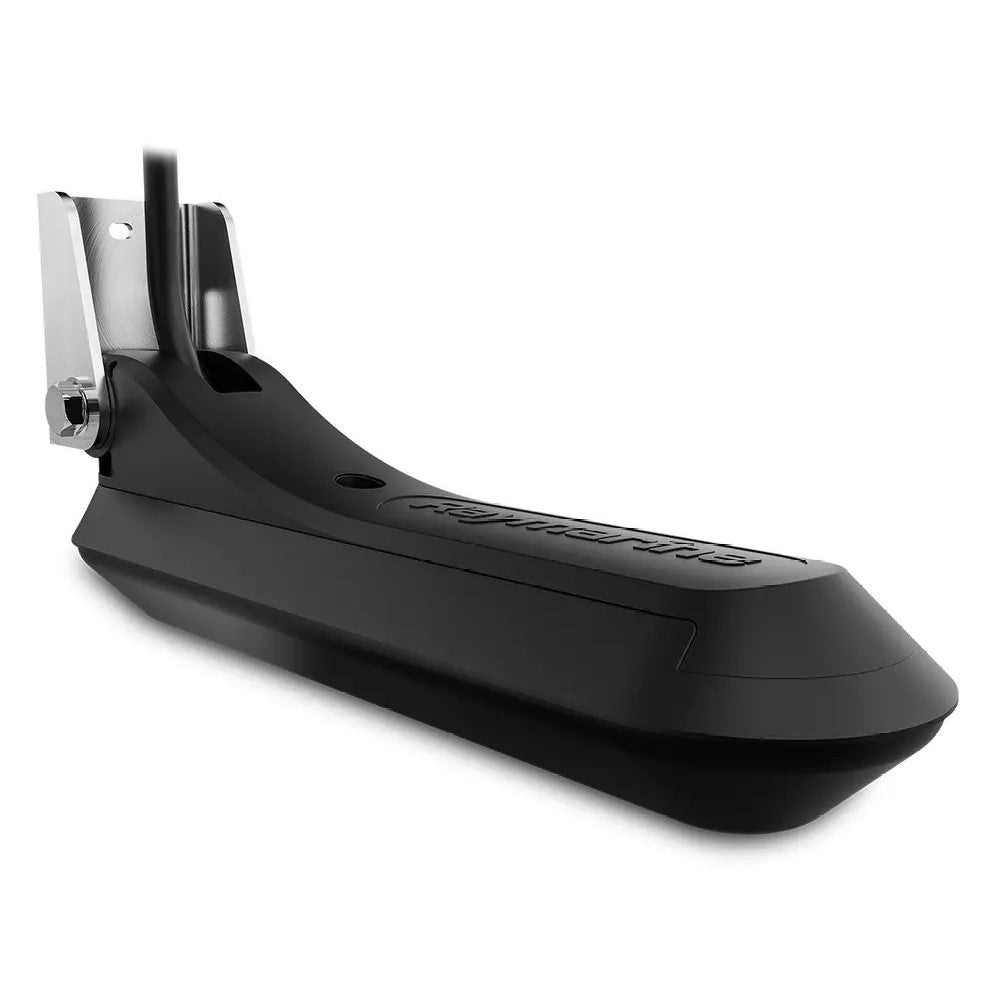

Raymarine RVM-100 RealVision MAX 3D Transom Mount Transducer

• Sensors: Temperature sensor AHRS (Attitude and Heading Reference System) sensor
• Sonar channels: RealVision Max 3D SideVision DownVision Conical High/Low CHIRP 600W 50/200 kHz
• Beam width: 200 kHz: 12°
• Dimensions: Length: 256.6 mm (10.1") Height: 120.5 mm (4.74")
• Cable length: 8 m (26.2')
• Weight (including brackets): 0.647 kg (1.42 lb)

Raymarine's RVM-100 all-in-one transom mount transducer is designed for Raymarine RealVision MAX compatible sonar modules and RealVision MAX equipped chartplotters. The RVM-100 lets you easily identify structures and locate fish with the life-like clarity of RealVision MAX technology. The RVM-100 is a 4-channel Wide Spectrum CHIRP transducer with DownVision SideVision high-frequency CHIRP fish targeting and 3D sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery automatically compensating for vessel motion. You'll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves swells or vessel maneuvering. The RVM-100 also has a built-in fast-response water temperature sensor for quick accurate readings.

The RVM-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged marine-grade stainless steel mounting bracket with an integrated kick-up to prevent damage in the event of a strike with floating debris rocks or stumps.

For bass boats flats boats and skiffs an optional stainless Jack-Plate mounting bracket (A80480) and spacer kit (A80482) are available. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (A80479 sold separately.)

In The Box

• Escutcheon plate
• Cable clips x5
• 9 x Self tapper screw (4 x for escutcheon and 5 x for cable clips)
• 3 x Self tapper screw (for transducer mounting bracket installation)
• Transducer mounting bracket
• Cable connector kit consisting of: O Ring Split ring x 2 (1 x spare) Locking collar Split ring fitting tool
• Documentation
• M10 x 65 serrated bolt
• M10 serrated nylock nut
• Transducer (including 8 m / 26.2 ft cable)
