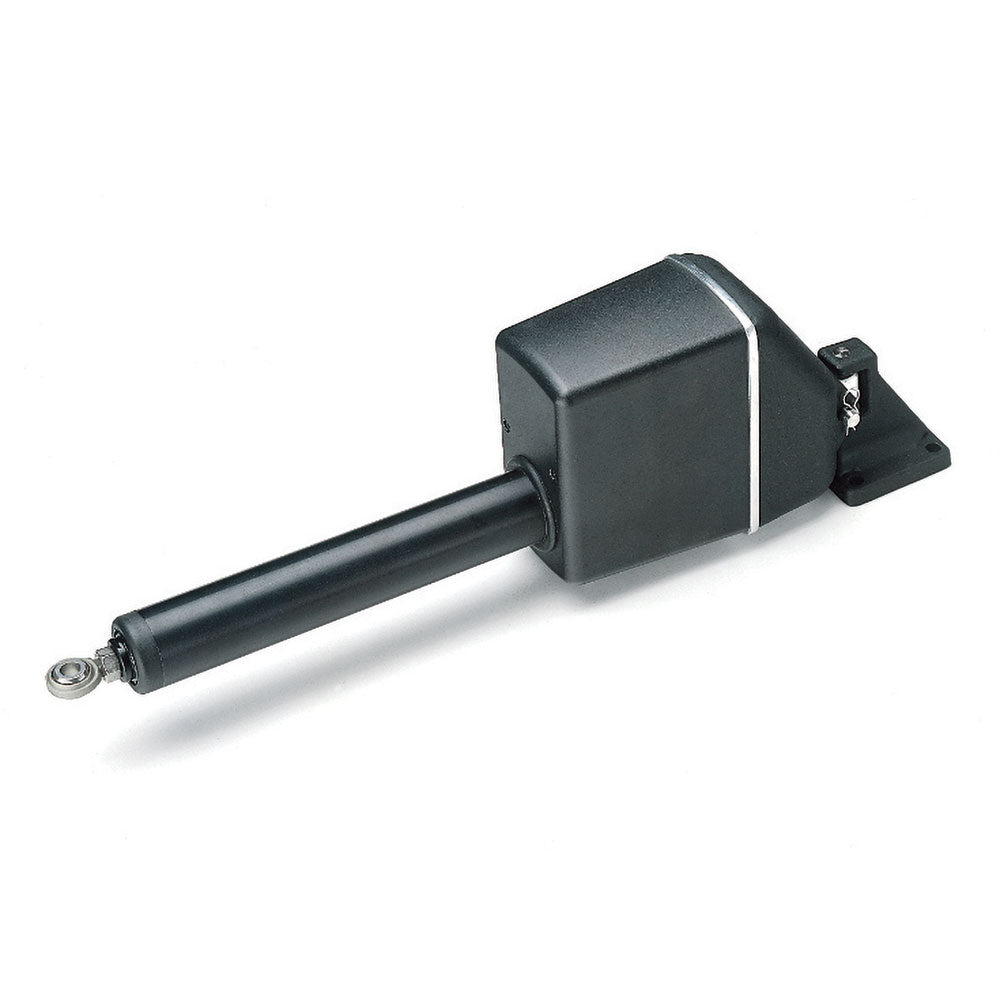

Raymarine Type 1/12v Short Shaft Linear Drive

£1,770.00 £2,045.00

Raymarine Mechanical Linear Drives.

Our most commonly used drive types for sailing vessels. Raymarine mechanical linear drives provide powerful thrust, fast hard-over times and quiet operation. Mounted below decks, the linear drive moves the rudder directly by pushing the tiller arm or a rudder quadrant.

A linear drive unit connects to the rudder stock via an independent tiller arm. Accessory fittings from your steering manufacturer may be required. Must be able to back-drive steering system from the rudder.

Specification

Maximum boat displacement: 11 000 kg (24 000 lb).

Peak thrust: 295 kg (650 lb).

Maximum stroke: 300 mm (12").

Hard-over to hard-over times: 11 seconds.

Maximum rudder torque: 735 nm (6 500 lb.in).

Power consumption: 18-36 W.

Corepack used: SPX-10.
