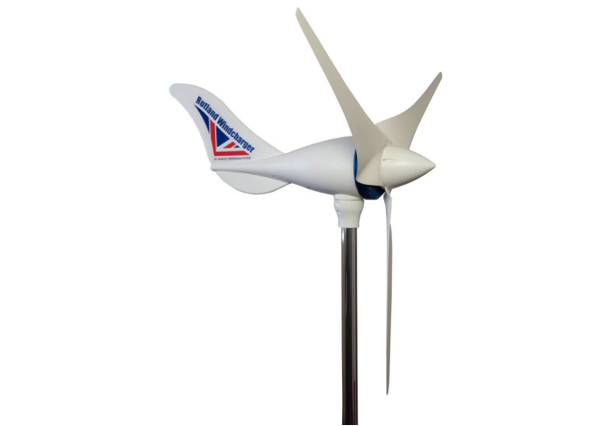

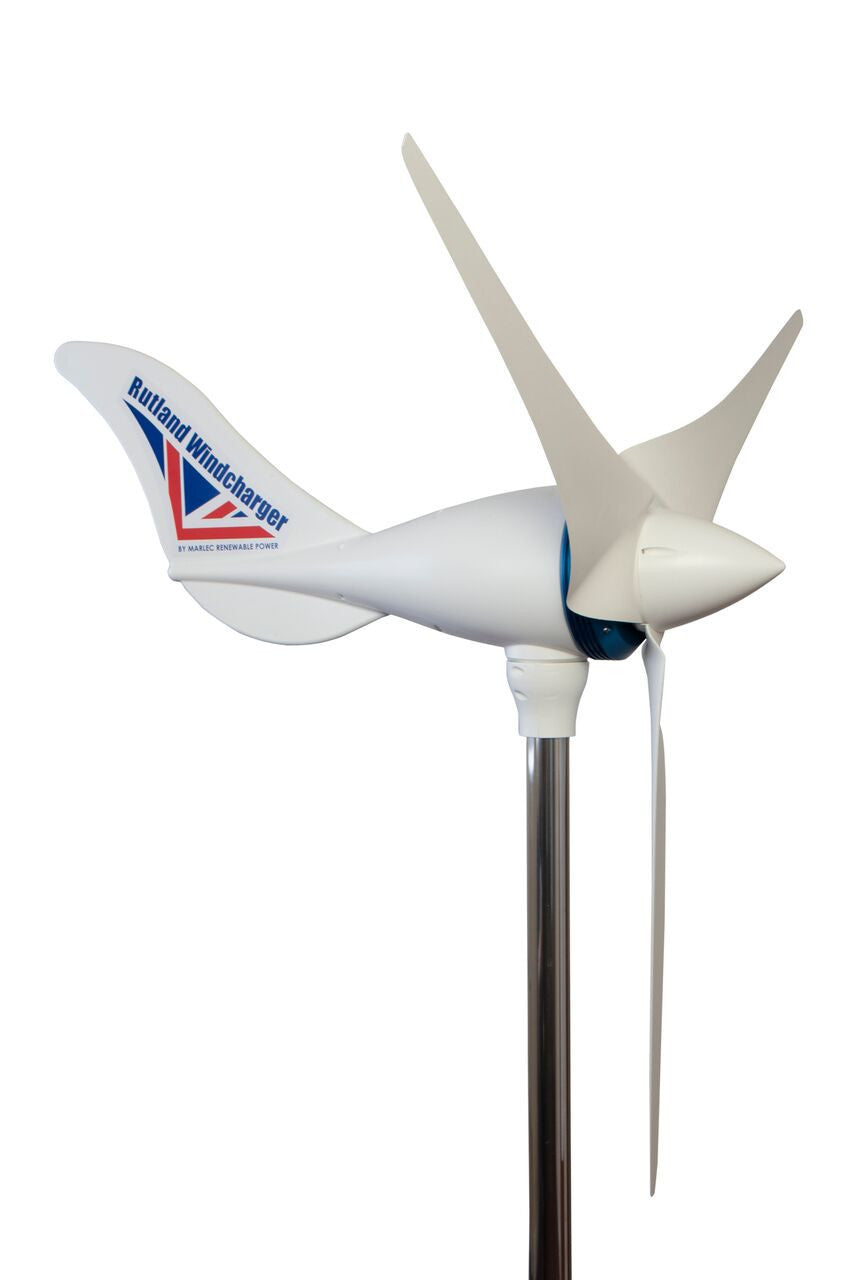

Rutland WG1200 Windcharger

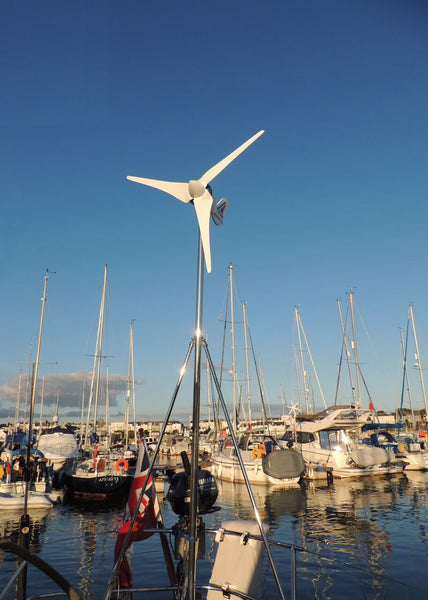

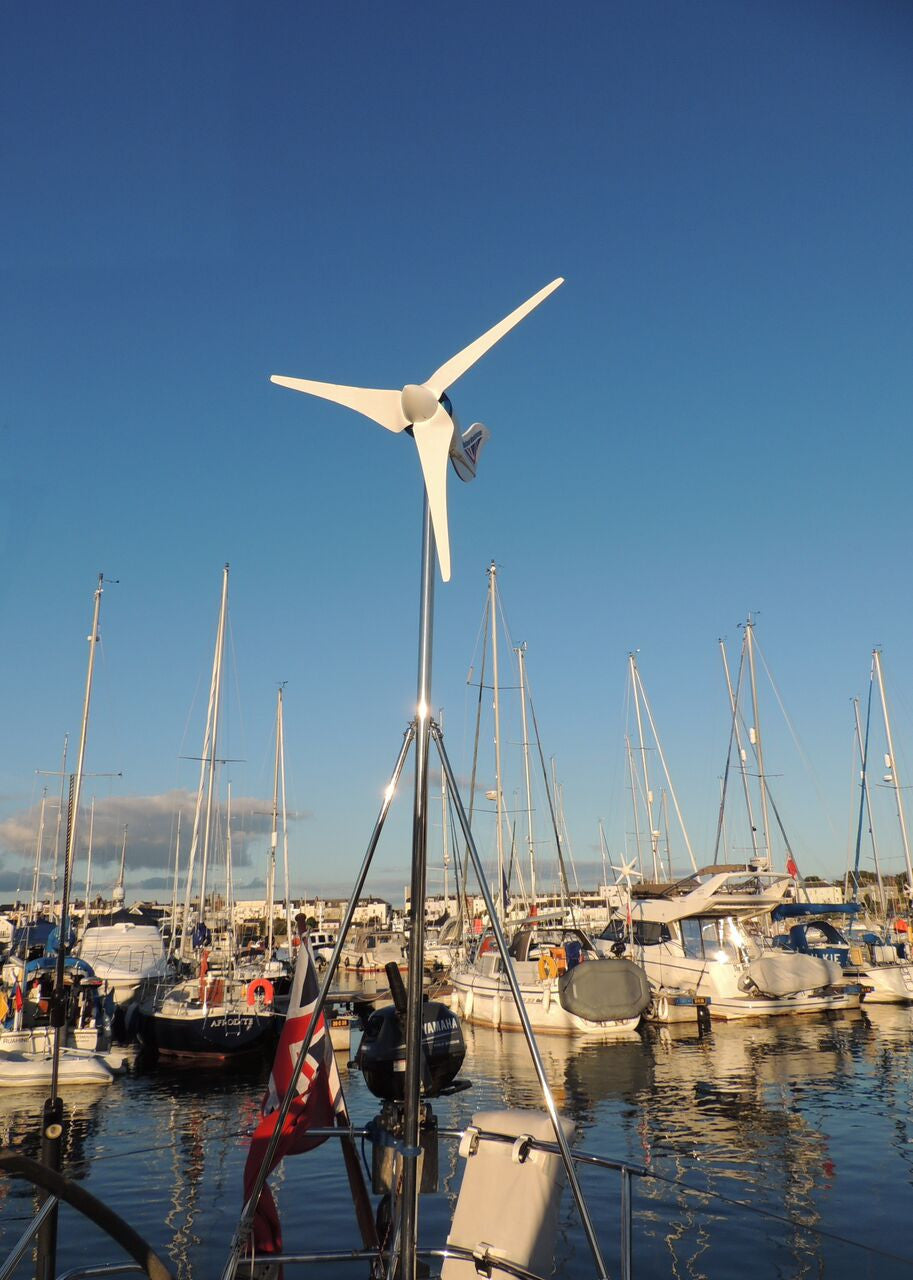

Marlec Engineering have come up with this new generation Windcharger and boy have they delivered. The Rutland 1200 is our new generation of turbine designed for users seeking higher generating capacity on board yachts and in o- grid locations. The Rutland 1200 elegantly combines a number of high tech features focused on quiet operation, low windspeed performance and high power delivery up to 500W.

Choose Rutland for: ● Quiet operation lets you sleep! ● Direct savings on fuel ● Reduced engine running time and maintenance ● Assurance of power for essentials such as navigation, refrigeration etc... and so you can enjoy electrical comforts on-b

Key Features ● Unique Tri-namic Prole Blades The most advanced Marlec designed Tri-namic Blade brings together low wind speed start up with high wind speed power performance and almost silent running across all wind speeds. ● 3 Phase AC power delivered from the turbine to the controller minimises voltage drop on long cable runs ● The low friction generator responds rapidly to windspeed changes and its inertia drives the turbine on between gusts to capture more energy ● Power optimising Maximum Power Point Tracking (MPPT) boosts the turbine’s output ● Marine grade stainless steel and aluminium are combined with modern, durable but lightweight materials to give a high quality build and finish.

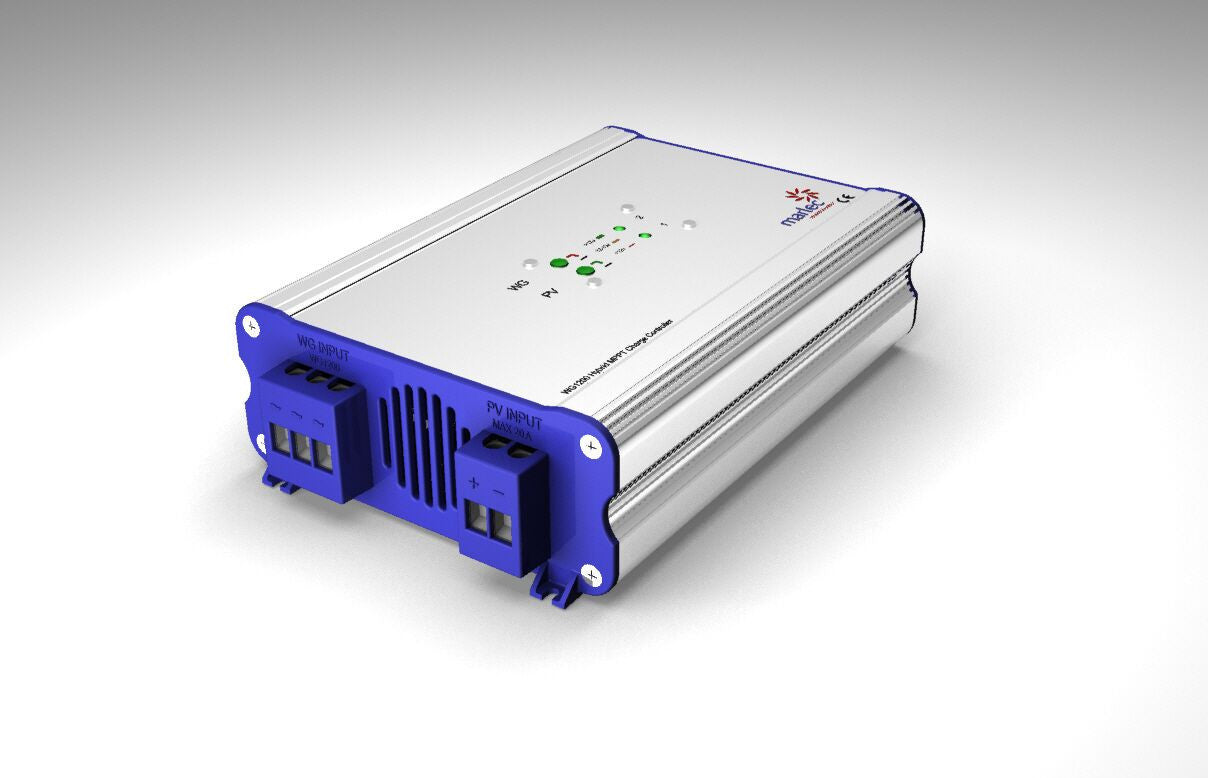

Specifications  Rutland 1200 Controller ● Hybrid control to combine Rutland 1200 wind turbine with up to 20A of solar panels ● Dual charging capability to 2 separate battery banks ● MPPT on both wind turbine and solar panel inputs to maximise both energy sources. Enables connection of high voltage solar panels. ● Pulse Width Modulation charge control for multi-stage charging ensures fully charged and maintained batteries. ● Automatic turbine speed reduction as batteries reach capacity, resumes as batteries deplete. ● Manual shutdown switches for wind and solar inputs ● LED charge and battery condition indicators as standard. ● Remote digital display op

Getting Your Rutland Up and Running The Rutland 1200 includes the controller needed for battery charging up to 2 separate battery banks. It is a purpose designed wind and solar energy hybrid controller accepting inputs from the Rutland 1200 and up to 20A of solar panels. Select the model required, 12V or 24V. The regulator should be located within a 1.5m cable run of the battery bank. An optional remote digital display is available. Marine Mounting Pole – a Rutland Marine Mounting Pole and separately supplied Stays Kit give a professional nish to your installation OR make your own to suit your own based on tube specied at 41mm internal and 48mm external diameters. Cables & Connectors – select between 2.5mm and 4mm 3 core cable. Permanent battery connections are recommended. Batteries – deep cycle gel or AGM types are recommended with renewable energy systems.

Models : 12V or 24V Please Choose
