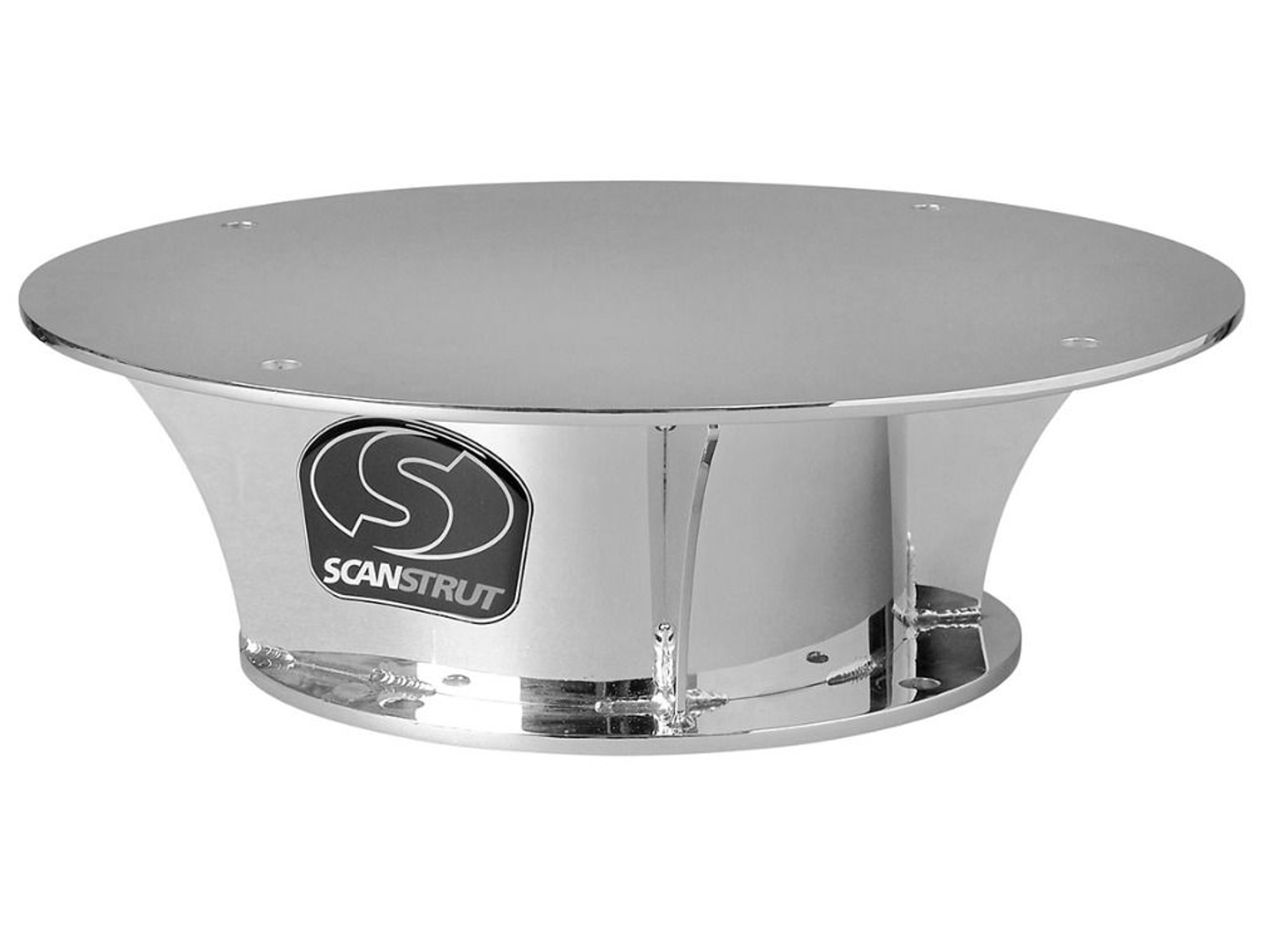

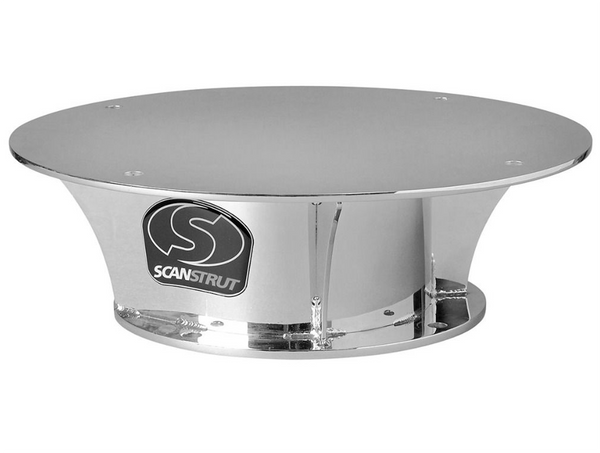

Scanstrut SC80 Satcom Mount for KVH G8/M9 (inc. base seal)

For KVH G8/M9 Satcom/TV Antenna

Reduce the footprint size of your satcom antenna by up to 60% with the Scanstrut Satcom Antenna Mount.

This gives you greater choice when choosing where to install your satcom antenna and also aids installation on narrow radar arches.

Key Features

  • Minimises footprint of antenna by 45%
  • Unique cable gland system for up to five cables
  • Cables installed through KDL gland plate with IP68 rating for complete watertight installation
  • Raises antenna by 80mm, allowing inspection hatch to open fully for easy cable connection
  • Marine grade 316 stainless steel

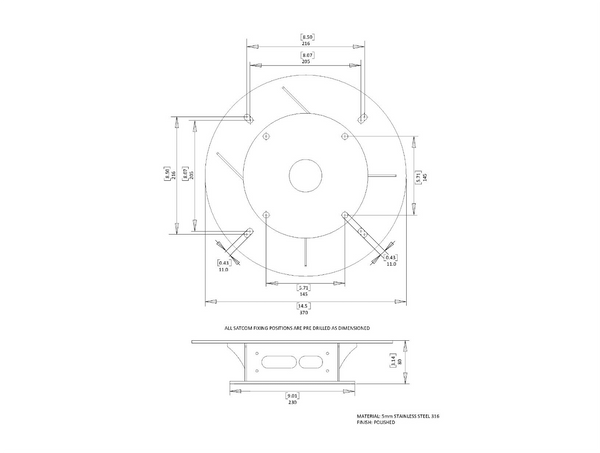

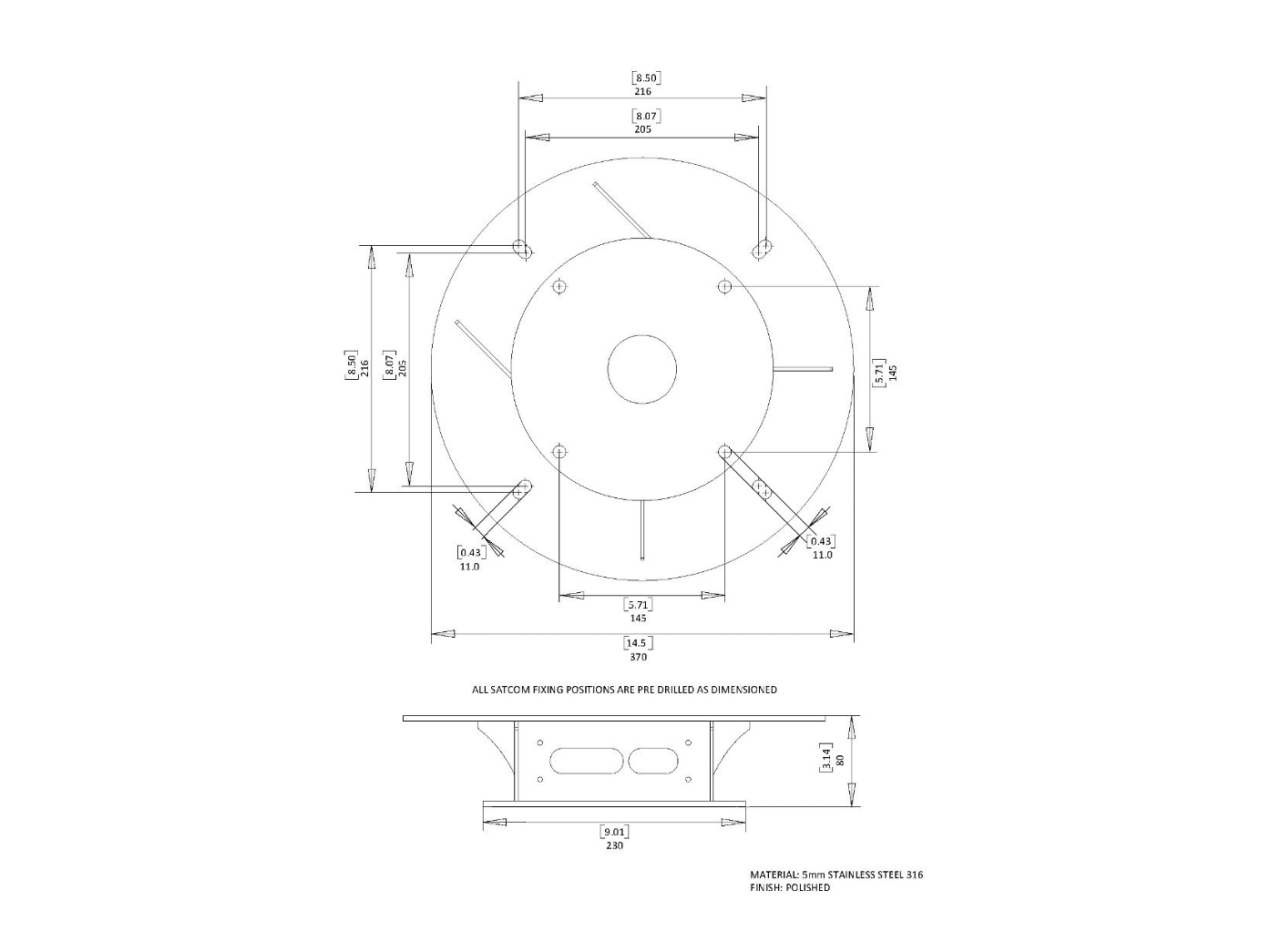

  • Mounting Plate diameter: 352mm / 13.9 inches
  • Base Footprint diameter: 230mm / 9.0 inches
Pack Dimensions
  • Depth: 9 cm
  • Length: 38 cm
  • Width: 37 cm
  • Weight: 6.9 kg

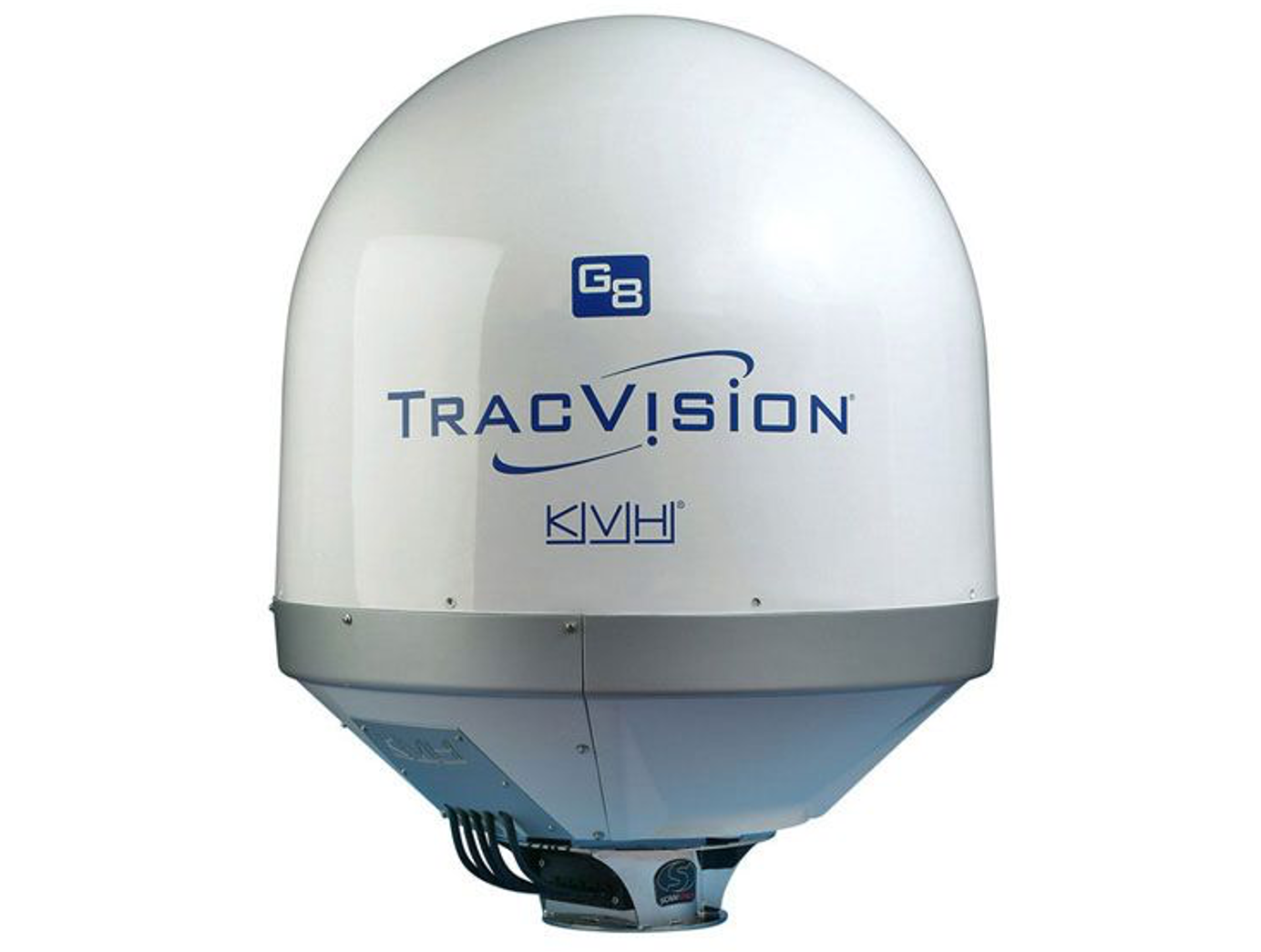

PS Image showing dome is for illustration purposes only
