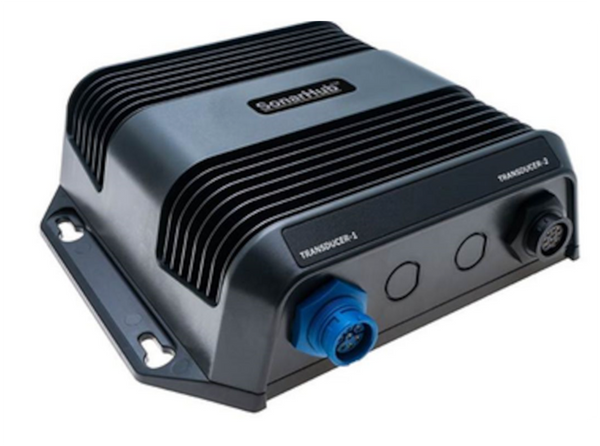

Simrad/Lowrance/B&G SonarHub - Module Only

The Lowrance SonarHub is a compact, easy-to-install, plug-and-play, all-in-one sounder module. Now it is easier than ever to identify productive fishing zones with connectivity latest sonar technologies for Lowrance HDS and Simrad NS displays such as CHIRP and StructureScan® HD imaging and SpotlightScan™ bow-mounted solution for HDS Gen2 models. CHIRP gives you improved target resolution and noise rejection, as well as wide coverage for perfect arches that clearly identify fish targets thanks to its extremely efficient pulse generation. StructureScan® HD provides crystal-clear, picture-like views of what’s beneath your boat with best-in-class, side-scanning range and resolution, plus DownScan Imaging™. The SonarHub is also compatible with all Lowrance blue-connector transducers, as well as all Airmar single channel CHIRP transducers and existing StructureScan® HD transducers, also compatible with the new SpotlightScan™ surround-scanning sonar transducers (If you own HDS Gen2 Touch display, SonarHub not required for SpotlightScan™ functionality).

Specification

• SonarHub Sounder Module
• CHIRP, StructureScan HD & SpotlightScan Capabilities
• Includes 2m (6.5 ft) Power Cable & 4.5m (15ft) Ethernet Cable
• Frequency - 455 & 800kHz (StructureScan) | 40-60kHz, 85-145kHz, 130-210kHz (CHIRP)
• Narrow Band Frequency - 50 kHz/83kHz/200kHz
• Output Power- 500w RMS (StructureScan) | 250w RMS (CHIRP & Single Frequency)
• StructureScan Max Range  - 300ft Side (both sides) | 300ft Down
• CHIRP Max Depth - 3,500 ft (depending on your transducer)

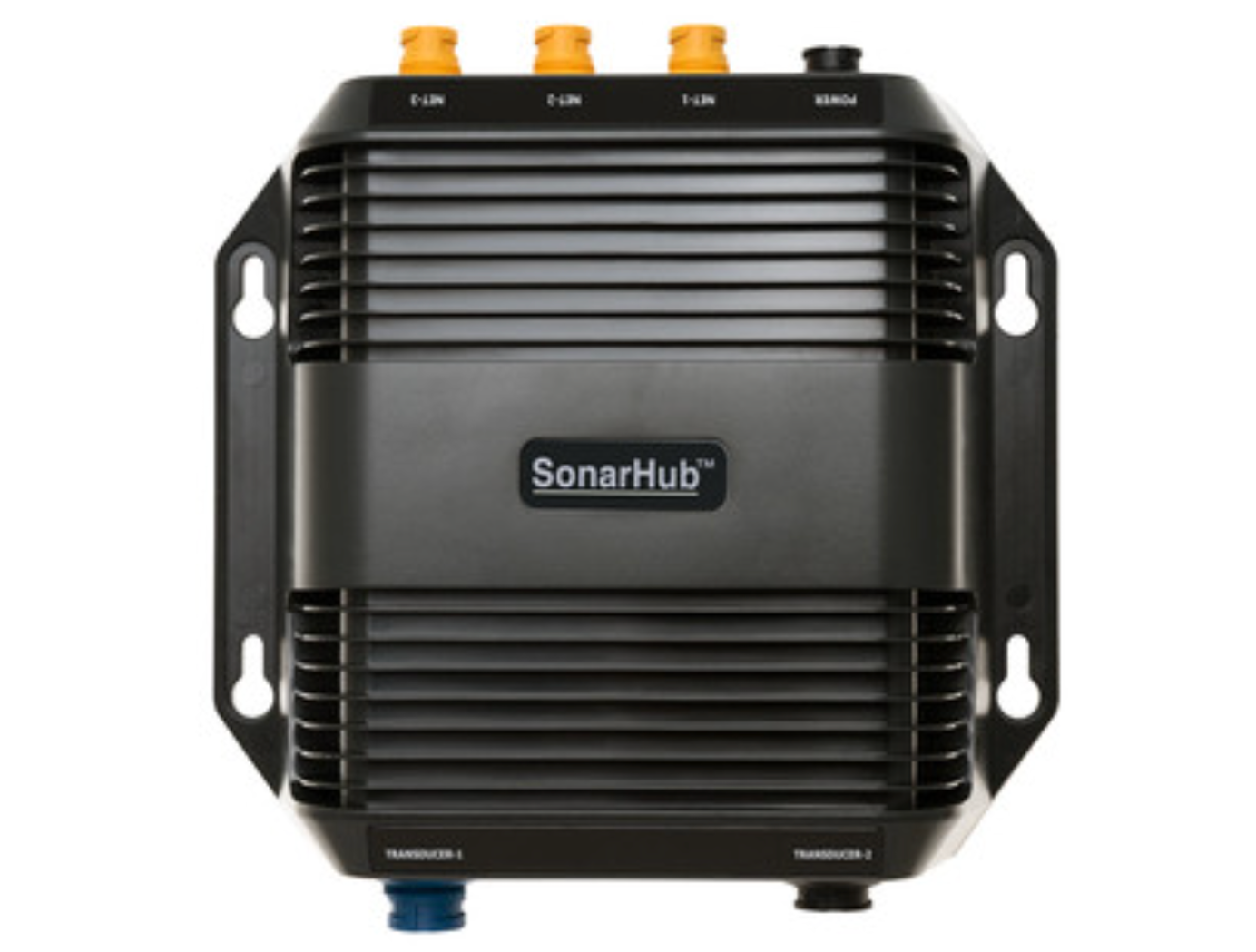

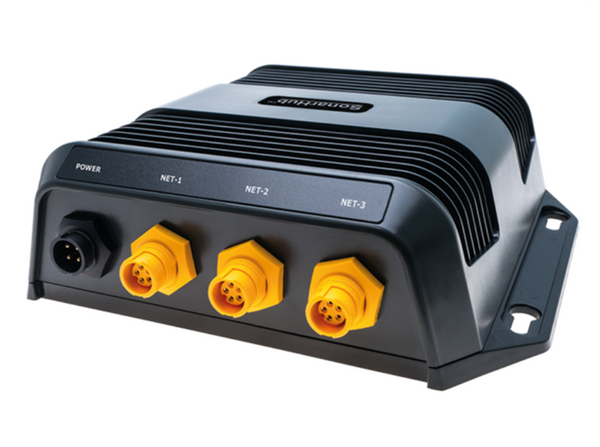

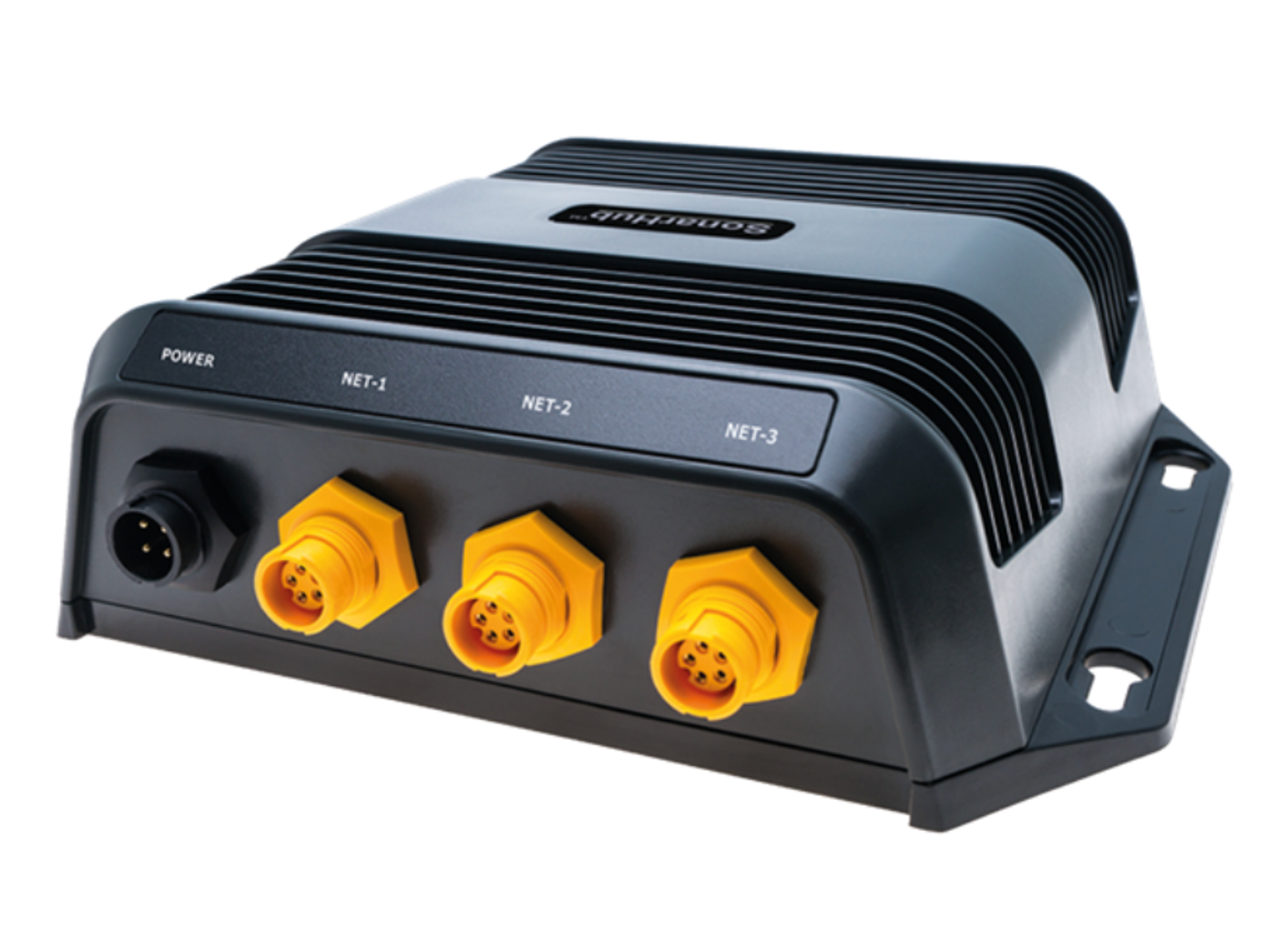

• 3 Ethernet Ports
• Six Cable Connections

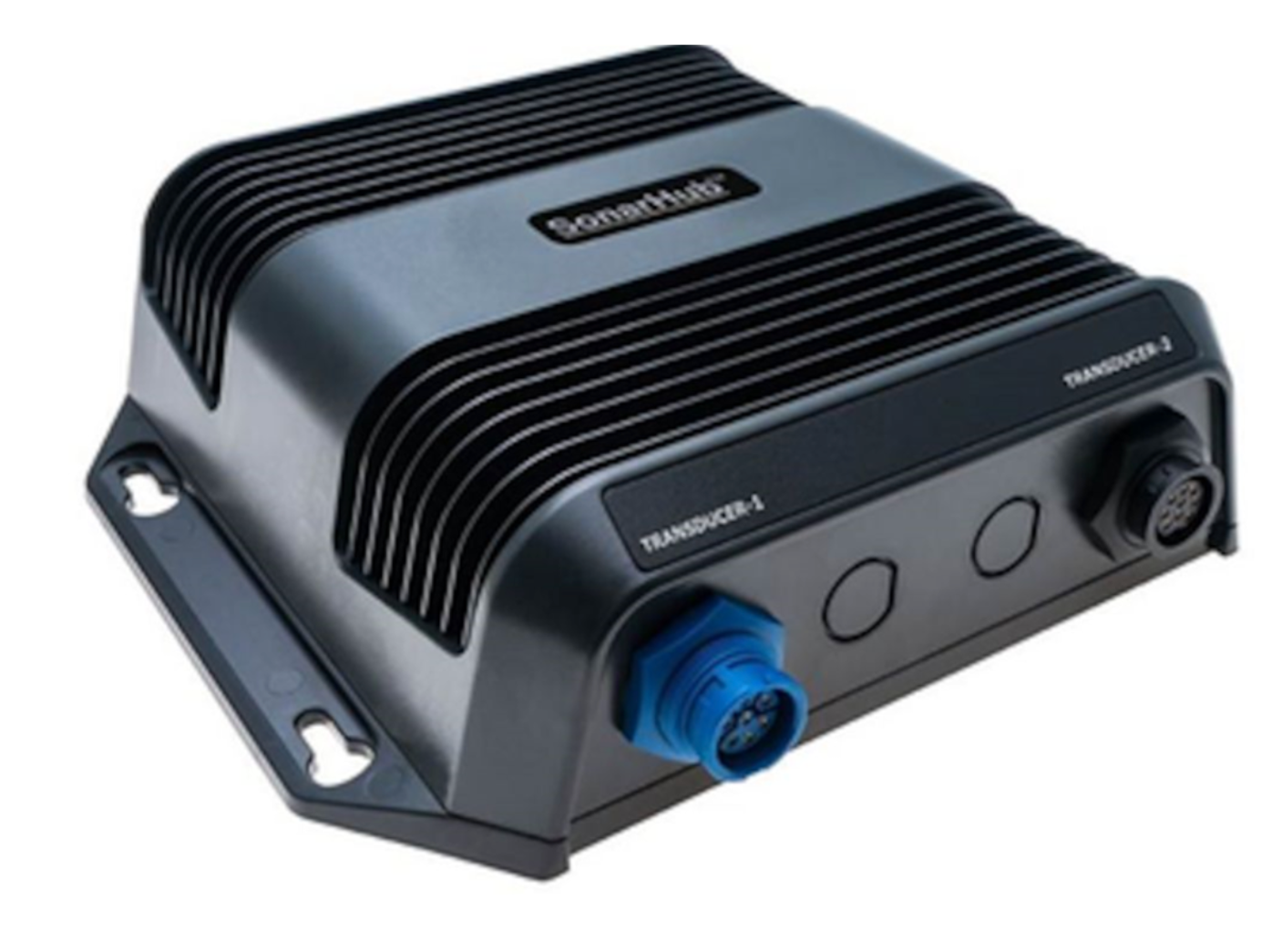

• Blue 7 Pin Sonar Connector - For CHIRP and narrow band transducers
• Black 9 Pin Connector - for use with StructureScan HD and Spotlight Transducers
• Waterproof Rating - IPX7
• Product Dimensions - 180 mm / 7.1 in x 57 mm / 2.2 in  | W x H
• Weight - 0.9 kg / 2 lbs
• Power Supply - 12 or 24 V DC | 4 Pin Connector
