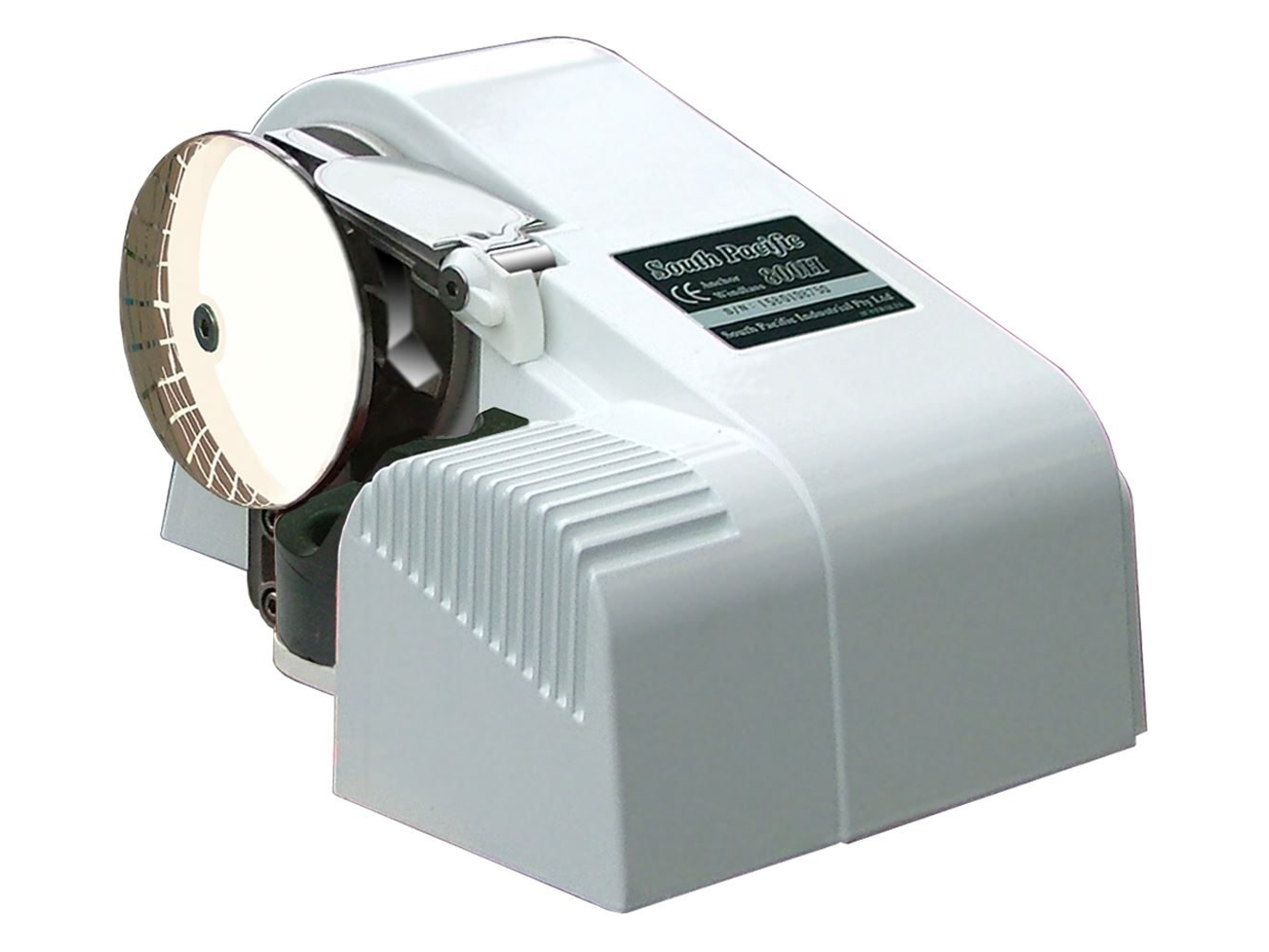

South Pacific Windlass 700W, Horizontal, High Speed, Aluminium, 8mm - Pro 900E

Without the best value electric windlass in the market place, and a high build quality as well. No more pulling, suits most small craft. All extras included

The South Pacific Pro 900Express is designed for boats from 28 to 35ft or to handle an anchor up to 14.5kg.

The Pro 900 series has been developed using efficient spur gears rather than traditional worm gearing which can reduce power consumption by up to 40%. The Stainless Steel Gypsy takes both rope and chain and the tremendous lifting capacity and fast retrieval speed are provided by a heavy duty DC motor whilst a heat radiating system minimises motor overheating. This compact windlass is easy to operate and easy to install and is supplied with a switch, circuit breaker, fixing bolts and manual


Windlass Kit
1.Windlass Pro 900E
2. Up/Down Switch
3. Circuit Breaker
4. Fixing Bolts
5. Manual & Template

• Stainless steel gypsy takes both rope and chain
• Efficient DC motor minimises heat
• Stainless steel drive shaft and parts
• A torque limiter absorbs sudden impacts, delivers smoother operation and greater reliability
• Compact one-piece housing ensures water resistance
• Aluminium alloy case with powder coated finish
• Installation is simple with the whole one-piece unit fitting on deck.


  • Comparable Model : 700W model
  • Operating Voltage : 12V DC only
  • Max Working Load : 320 kg (700lb)
  • Typical Working Load : 60 kg (132 lb)
  • Retrieval Speed : 30 m(100ft)/min
  • Pay-Out Speed : free fall or 36 m/min (120 ft/min)
  • Current Draw (Typical) : 32 amp(12V)
  • Motor Type / Efficiency : permanent magnet / 82 %
  • Motor Wattage I/O : 1100W / 450W
  • Gear Type / Efficiency : spur gear / 92%~98%
  • Dimension(LxWxH) : 304 mm x 197 mm x 153mm 12” x 7.75” x 6”
  • Weight : 9.2 kg (20.4lb)
  • Suit Chain Size : 6, 7, 8mm DIN766, 1/4", 5/16" G4 HT (selectable)
  • Suit Rope Size : 12, 14mm(selectable)
  • Suit Deck Thickness : 3mm~60mm
