Supergain Ballade Omnidirectional Analogue - Digital TV Antenna -12V

Compact modern Italian designed Digital TV Antenna suitable for all Boats and RV's. Low Noise Factor, High Gain Amplifier Easy to install with mount and cabling.

Key Features

• 23.5 dB Gain
• High Gain Amplifier
• Low Noise Factor
• TV DVBT/TNT and HDTV Antenna
• Ideal for boats & RV's
• Dia: 70mm x Height 165mm
• Lightweight at 110g
• Easy to install
• Integrated Mount
• 5m Integrated Coax cable
• 12V Power Inserter

Whats in the Box

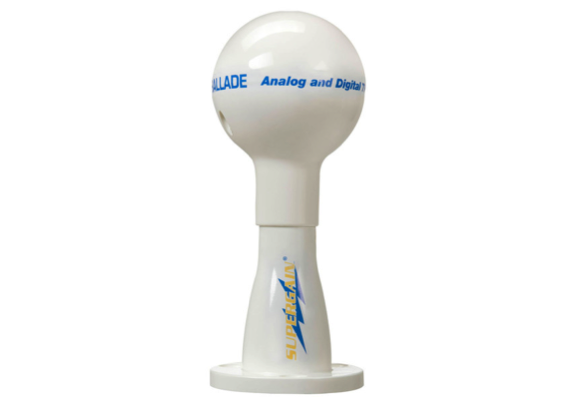

• Ballade Antenna and Mount

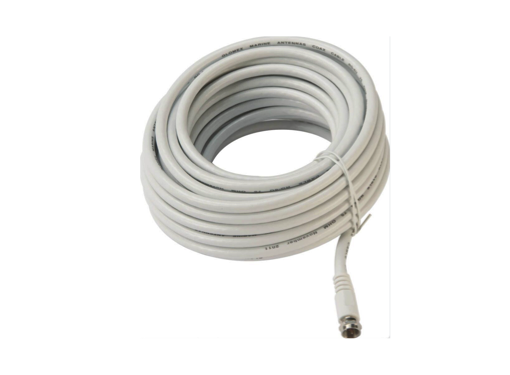

• 5m (17') Integrated Coax Cable

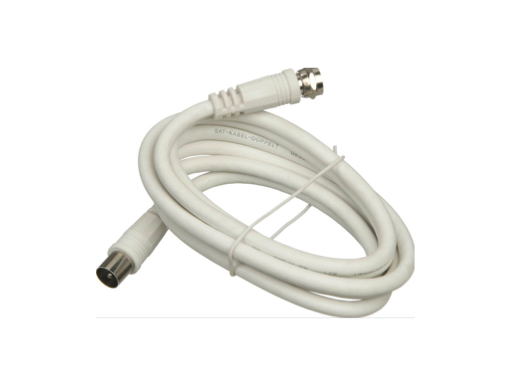

• 1.5m (5') TV Cord Set

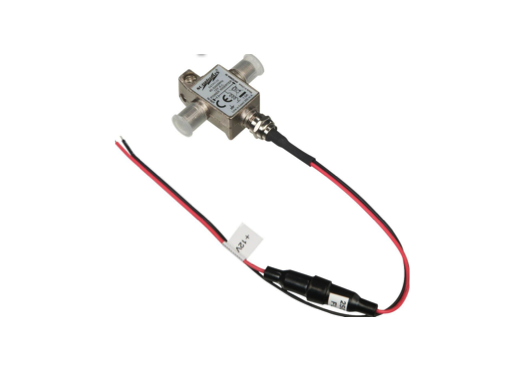

• 12V dc Power Inserter

 Techy Bits

• Antenna Diameter : 70mm (2.8")
• Antenna Height : 80mm (3.2")
• Base Diameter : 70mm (2.8")
• Antenna Weight : 110g (4 oz)
• Radome Material : ASA
• Angle of Reception : 360­°
• Polarization : Horizontal
• Impedance : 75 OHMS
• Frequency Range : 170/890MHz
• Gain Average : 23.5 dB
• Noise Factor : 1.7 dB
• Power Consumption : 20 ma
• Power Supply : 12 Vdc
• TV Set Max : 1
• Termination : Cable & F Connector
• Weight : Antenna 110g (4oz)
