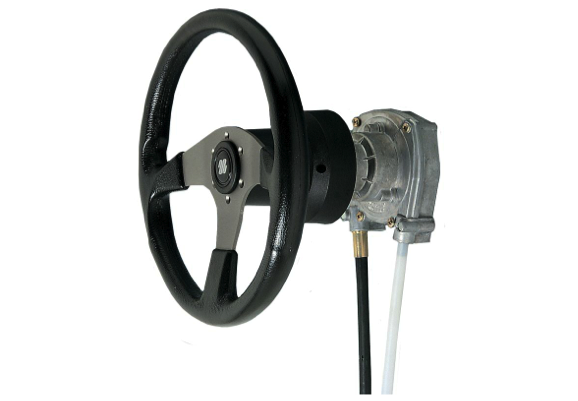

Ultraflex T73NRFC & T74NRFC Non-Reversible Steering Helms

Ultraflex T73NRFC & T74FC with Planetary Gear Design leading to minimal feedback, Patented non reversible mechanism and compact size for ease of fitting. Twin version for boats that achieve over 50 mph.

Features & Technical Specifications

  • Particularly suitable where clearance is limited

  • All stainless steel cable output ends as per ABYC safety standards

  • Made exclusively in corrosion resistant materials

  • Lock - to - lock steering wheel turns: approx 3.8

  • Stroke: 228mm (9")

  • Minimum steering cable bend radius: 200mm (7.9")

  • Maximum operating load at the tiller end: 3300N (340kg; 750lbs)

  • Should not be used on boats equipped with engines that exceed themax. horsepower rating of the boat

  • For boats faster than 50mph the twin cable steering system is recommended

  • Exceeds ABYC & EN 28848 safety standards

  • Featuring Planetary Gear Design • Optional 90° or 20° installation
  • Minimal feedback
  • Patented non reversible mechanism
  • The non-reversible steering helm eliminates the continuous load on the operator caused by the propeller torque making steering easy and safe.
  • Ideal for outboards and surfacing propellers
  • Compact for mounting
  • Maximum steering wheel diameter: 406mm (16")
  • Uses M66 Cable see website for sizes

Unsure what to order give us a call on 01621 786413 we are here to help

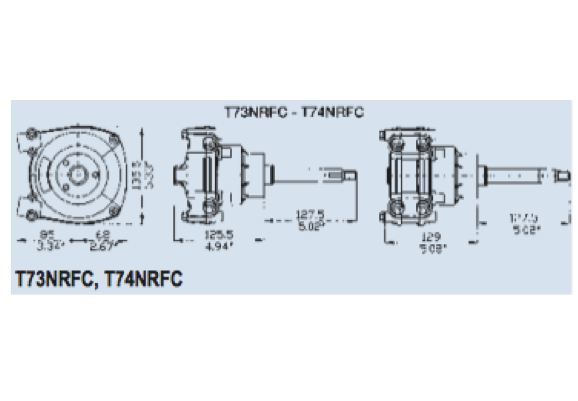

Models

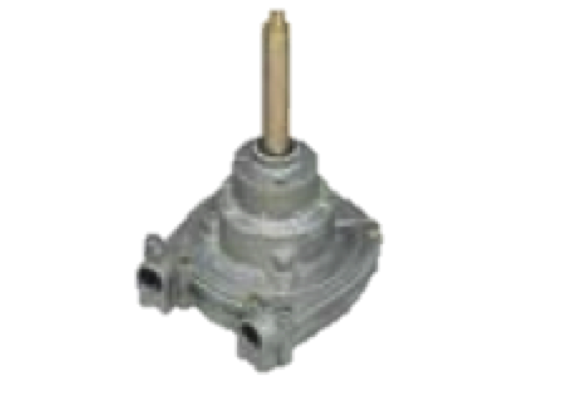

  • T73NRFC Single Cable Steering Helm

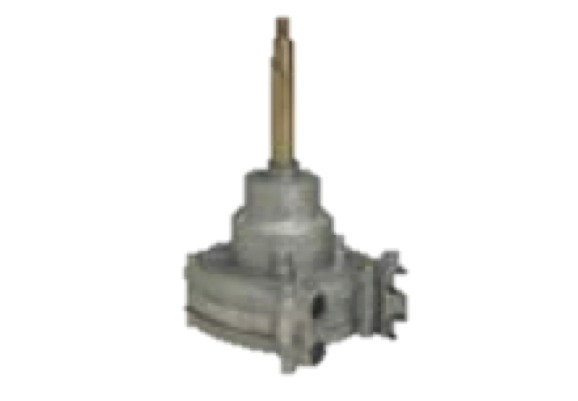

  • T74NRFC Double Cable Steering Helm ( Boats that exceed 50 mph )
